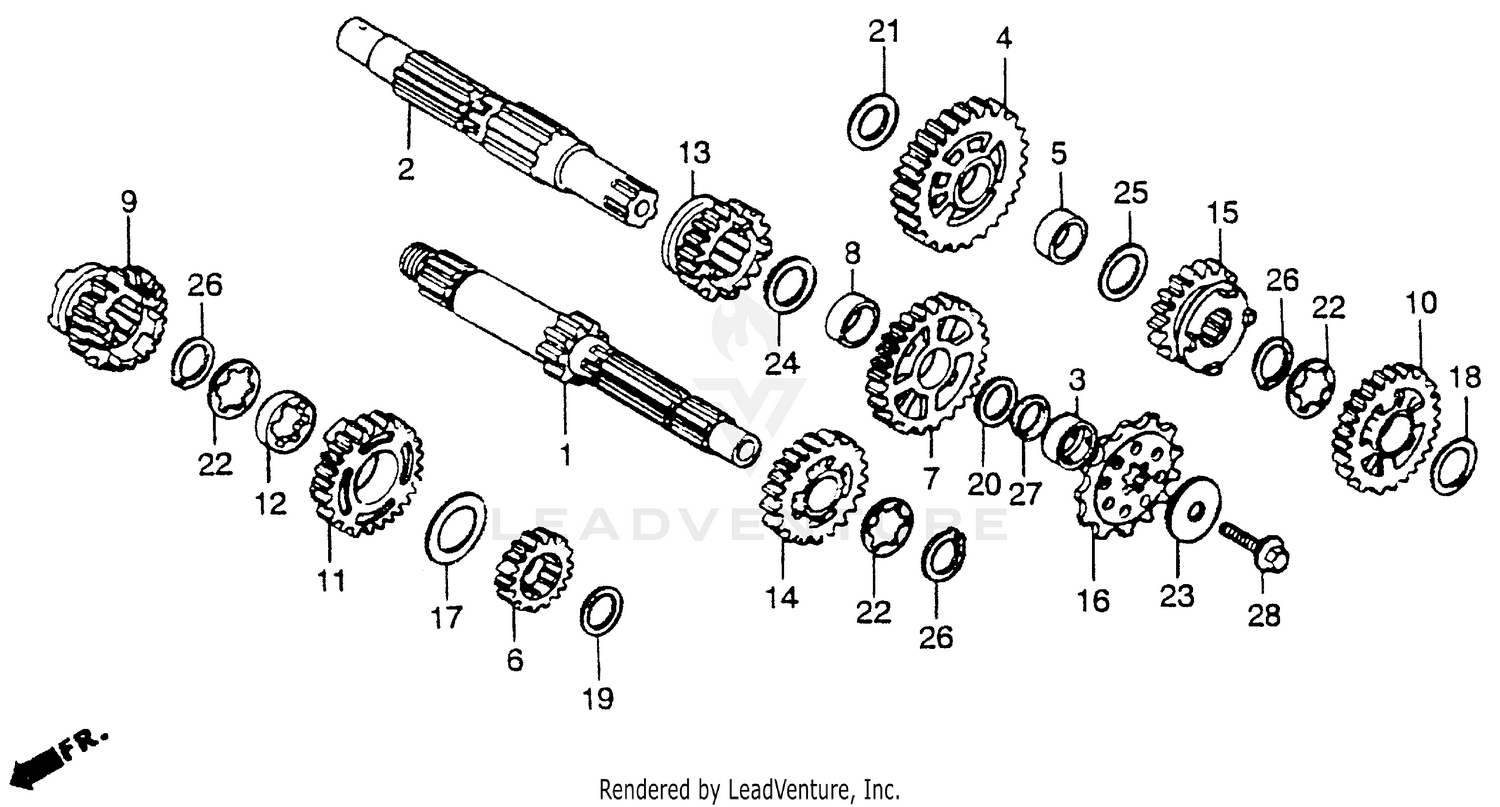

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT
23210-KA4-740
|
$122.07 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT (NOT AVAILABLE)
23221-KA4-740
|
$126.55 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT (22MM)
23225-430-000
|
$21.81 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (27T)
23411-KA4-770
Superseded by 23411-KS7-000
|
$117.21 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (27T)
23411-KS7-000
|
$117.21 | ||
|
Unavailable |
|||
|
#5
COLLAR, COUNTERSHAFT LOW GEAR
23412-KA4-740
|
$14.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT SECOND (17T)
23421-KA4-740
|
$81.66 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (25T)
23431-KA4-770
|
$90.41 | ||
|
Unavailable |
|||
|
#8
COLLAR, COUNTERSHAFT SECOND GEAR
23432-KA4-740
|
$14.91 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT THIRD (19T)
23441-KA4-770
|
$72.71 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (23T)
23451-KA4-770
|
$102.57 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT FOURTH (21T)
23461-KA4-770
Superseded by 23461-KZ3-L20
|
$109.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, MAINSHAFT FOURTH GEAR
23462-KA4-000
|
$27.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTERSHAFT FOURTH (21T)
23471-KA4-770
|
$99.20 | ||
|
Unavailable |
|||
|
#14
GEAR, MAINSHAFT FIFTH (24T)
23481-KA4-770
|
$90.22 | ||
|
Unavailable |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (20T)
23491-KA4-770
|
$86.87 | ||
|
Unavailable |
|||
|
#16
SPROCKET, DRIVE (14T)
23802-KA4-740
Superseded by 23802-467-000
|
$28.90 | ||
|
Unavailable |
|||
|
#16
SPROCKET, DRIVE (14T)
23802-467-000
|
$28.90 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (25MM)
90421-961-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (25.2X30)
90444-430-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (17.2MM)
90446-KA4-740
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (24.2X34)
90446-KA5-680
|
$4.28 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (25MM)
90463-430-000
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING (8X40)
90501-KA3-741
Superseded by 90501-HB9-003
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER B, THRUST (22MM)
90455-ML7-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER B, THRUST (22MM) (BLUE)
90502-360-000
Superseded by 90455-ML7-000
|
$6.11 | ||
|
Unavailable |
|||
|
#25
WASHER, THRUST (19MM)
90554-KA5-680
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O-RING (22X1.5)
91201-430-003
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X20)
96300-08020-07
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
