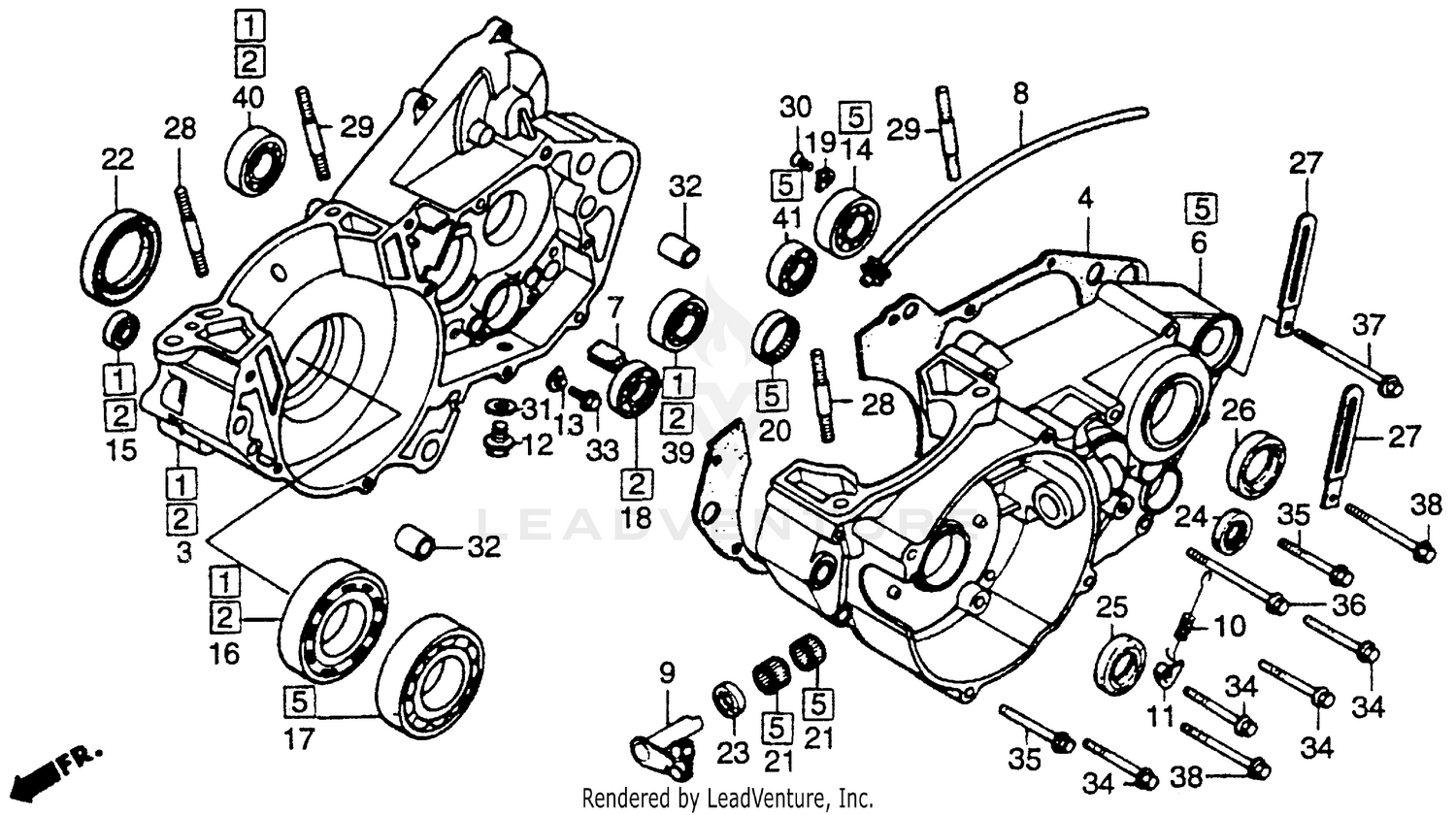

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
CRANKCASE, R. (NOT AVAILABLE)
11100-KA4-770
|
$319.74 | ||
|
Unavailable |
|||
|
#4
GASKET, CRANKCASE
11191-KA4-770
Superseded by 11191-KA4-309
|
$9.21 | ||
|
Unavailable |
|||
|
#6
CRANKCASE, L. (NOT AVAILABLE)
11200-KA4-770
|
$226.02 | ||
|
Unavailable |
|||
|
#7
GROMMET, BREATHER
11206-GC4-700
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, BREATHER
11211-GC4-701
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
LIFTER, CLUTCH (NOT AVAILABLE)
22810-KA4-740
|
$63.14 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH (NOT AVAILABLE)
22815-KA4-770
|
$2.41 | ||
|
Unavailable |
|||
|
#11
PLATE, SPRING SETTING (NOT AVAILABLE)
22821-KA4-740
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (12MM)
90015-KA3-711
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE, BEARING HOLDER
90441-KA4-700
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (22X56X14) (TOYO)
91001-KA4-741
|
$30.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (7X19X6) (TOYO)
91002-KA4-003
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL
91003-KA4-771
Superseded by 91008-KAE-731
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL
91008-KAE-000
Superseded by 91008-KAE-731
|
$58.35 | ||
|
Unavailable |
|||
|
#16
BEARING, RADIAL BALL
91008-KAE-731
|
$58.35 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL
91003-KA4-771
Superseded by 91008-KAE-731
|
$58.35 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL
91008-KAE-000
Superseded by 91008-KAE-731
|
$58.35 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL
91008-KAE-731
|
$58.35 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (25X42X9) (TOYO)
91004-GC4-731
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (25X42X9) (TOYO)
91004-430-003
Superseded by 91004-GC4-731
|
$33.36 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (25X42X9) (TOYO)
91004-430-004
Superseded by 91004-GC4-731
|
$33.36 | ||
|
Unavailable |
|||
|
#19
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, SHELL (33X38X8) (TOYO)
91022-KA4-740
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (12X16X10)
91053-719-005
Superseded by 91101-PZ9-000
|
$10.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BEARING, NEEDLE (12X16X10)
91101-PZ9-000
|
$10.51 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (38X58X11) (NIPPON)
91201-KA4-004
|
$24.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (12X18X3) (ARAI)
91201-951-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
OIL SEAL (14X22X5)
91203-KA4-772
Superseded by 91203-KK3-830
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
OIL SEAL (14X22X5)
91203-KK3-830
|
$4.80 | ||
|
Unavailable |
|||
|
#25
OIL SEAL (20X32X7) (NOK)
91205-166-004
|
$21.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL (28X40X8) (NOK)
91207-430-003
Superseded by 91207-ML3-003
|
$17.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
OIL SEAL (28X40X8) (NOK)
91207-430-005
Superseded by 91207-ML3-003
|
$17.05 | ||
|
Unavailable |
|||
|
#26
OIL SEAL (28X40X8) (NOK)
91207-ML3-003
|
$17.05 | ||
|
Unavailable |
|||
|
#26
OIL SEAL (28X40X8) (NOK)
91207-ML3-004
Superseded by 91207-ML3-003
|
$17.05 | ||
|
Unavailable |
|||
|
#27
CLIP, WIRE HARNESS
91406-657-671
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, WIRE HARNESS
91406-657-671
|
$11.08 | ||
|
Unavailable |
|||
|
#28
BOLT 2, STUD (10X45)
92700-10070-3B
Superseded by 92900-10045-3B
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT 2, STUD (10X45)
92900-10045-3B
|
$2.45 | ||
|
Unavailable |
|||
|
#29
BOLT 2, STUD (10X45)
92700-10070-3B
Superseded by 92900-10045-3B
|
$2.45 | ||
|
Unavailable |
|||
|
#29
BOLT 2, STUD (10X45)
92900-10045-3B
|
$2.45 | ||
|
Unavailable |
|||
|
#30
SCREW, FLAT (6X12)
93600-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIN A, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X50)
96000-06050-07
Superseded by 96001-06050-07
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X50)
96001-06050-07
|
$1.75 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X55)
96000-06055-07
Superseded by 96001-06055-07
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X55)
96001-06055-07
|
$2.55 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X65)
96000-06065-07
Superseded by 96001-06065-07
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X65)
96001-06065-07
|
$2.25 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (6X70)
96000-06070-07
Superseded by 96001-06070-07
|
$2.45 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (6X70)
96001-06070-07
|
$2.45 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X70)
96000-06070-07
Superseded by 96001-06070-07
|
$2.45 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X70)
96001-06070-07
|
$2.45 | ||
|
Unavailable |
|||
|
#39
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING, RADIAL BALL (6205)
96100-62050-00
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, RADIAL BALL (6203)
96120-62030-00
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
