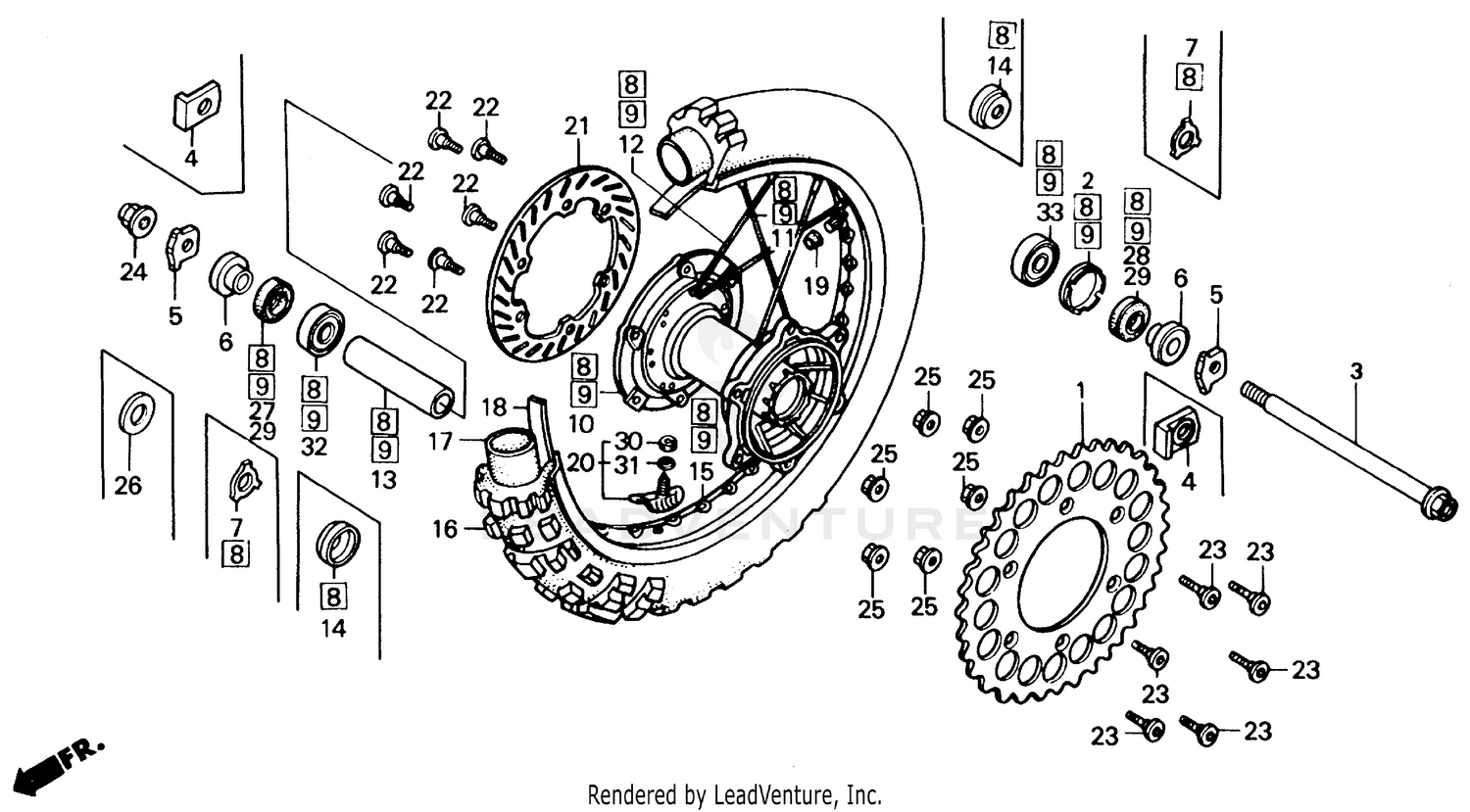

Rear Wheel 87-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-700
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41201-KS7-700
Superseded by 41201-KZ3-740
|
$108.25 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41201-KZ3-740
|
$108.25 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-830
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KZ4-711
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, RR. (49T)
41202-KS6-700
|
$100.68 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ3-B00
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ4-J20
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T) (STEEL)
41204-KA3-710
|
$62.74 | ||
|
Unavailable |
|||
|
#2
RETAINER, RR. WHEEL BEARING
41231-KS6-700
|
$18.35 | ||
|
Unavailable |
|||
|
#3
AXLE, RR. WHEEL
42301-KS6-700
|
$69.16 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. AXLE (NOT AVAILABLE)
42306-KS6-700
|
$22.87 | ||
|
Unavailable |
|||
|
#6
COLLAR, RR. WHEEL SIDE
42311-KS6-700
|
$19.82 | ||
|
Unavailable |
|||
|
#7
WASHER, RR. WHEEL SIDE
42312-KA3-730
|
$2.97 | ||
|
Unavailable |
|||
|
#8
RIM ASSY., RR. WHEEL
426A5-KS6-700
|
$708.83 | ||
|
Unavailable |
|||
|
#10
HUB, RR. WHEEL *NH105* (MAT BLACK)
42601-KS6-700ZA
|
$440.99 | ||
|
Unavailable |
|||
|
#11
SPOKE SET A, RR. (192.5MM)
42610-KA3-830
|
$4.47 | ||
|
Unavailable |
|||
|
#11
SPOKE SET A, RR. (192.5MM)
42610-KS6-305
Superseded by 42610-KA3-830
|
$4.47 | ||
|
Unavailable |
|||
|
#13
COLLAR, RR. DISTANCE (NOT AVAILABLE)
42620-KS6-700
|
$29.79 | ||
|
Unavailable |
|||
|
#14
CAP, DISTANCE COLLAR
42621-KA3-711
|
$4.03 | ||
|
Unavailable |
|||
|
#15
RIM, RR. WHEEL (1.85X18) (DAIDO)
42701-KS6-701
|
$339.34 | ||
|
Unavailable |
|||
|
#16
TIRE, RR. (100/100-18) (59M D756) (DUNLOP)
42711-KS6-771
Superseded by 42711-KSC-004
|
$104.27 | ||
|
Unavailable |
|||
|
#16
TIRE, RR. (100/100-18) (59M D756) (DUNLOP)
42711-KZ4-771
Superseded by 42711-KSC-004
|
$104.27 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-KS6-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-KS6-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-KS7-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-KV6-009
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-300-004
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#18
FLAP, TIRE (2.15-18) (DUNLOP)
42713-KS6-641
Superseded by 42713-300-004
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER, BEAD (1.85)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
DISK, RR. BRAKE (NOT AVAILABLE)
43351-KS6-701
|
$272.82 | ||
|
Unavailable |
|||
|
#22
BOLT, DISK (6X17)
90105-KS6-700
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (8X29)
90125-KA3-700
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (18MM)
90305-KS6-003
Superseded by 90305-MCC-000
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (20X33) (NOT AVAILABLE)
90501-KS6-700
|
$3.17 | ||
|
Unavailable |
|||
|
#29
DUST SEAL (28X42X8) (NOK)
91257-KA3-711
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL (28X42X8) (NOK)
91257-KA3-712
Superseded by 91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#29
DUST SEAL (28X42X8) (NOK)
91257-MAY-003
|
$11.11 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (6004UU)
96150-60040-10
|
$23.66 | ||
|
Unavailable |
|||
|
#33
BEARING, RADIAL BALL (6204UU)
96150-62040-10
|
$22.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
