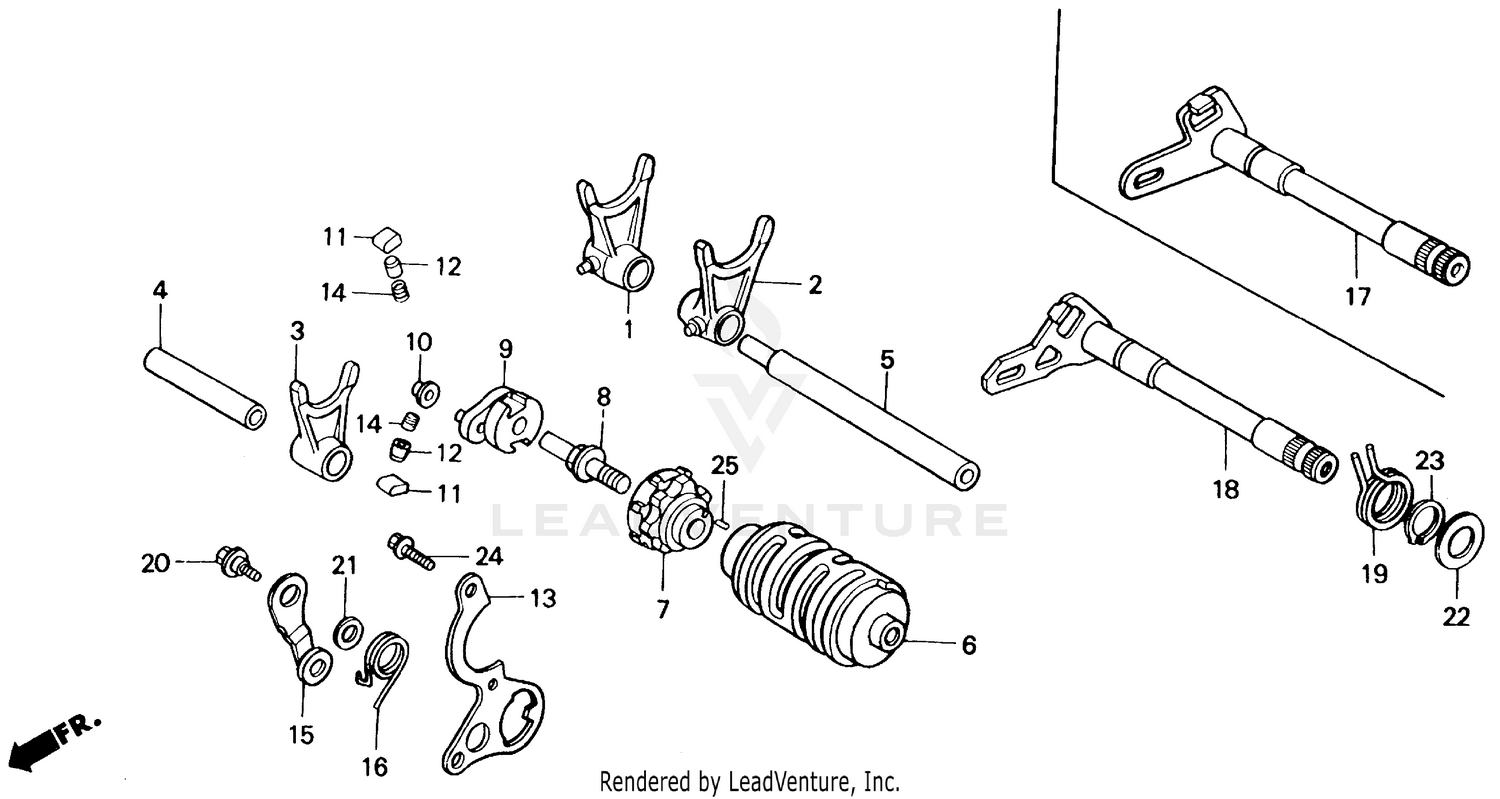

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-KS6-700
Superseded by 24211-KS6-701
|
$50.11 | ||
|
Unavailable |
|||
|
#1
FORK, R. GEARSHIFT
24211-KS6-701
|
$50.11 | ||
|
Unavailable |
|||
|
#2
FORK, L. GEARSHIFT (NOT AVAILABLE)
24221-KS6-700
|
$45.20 | ||
|
Unavailable |
|||
|
#3
FORK C, GEARSHIFT
24231-KS6-700
|
$40.42 | ||
|
Unavailable |
|||
|
#4
MAINSHAFT, SHIFT FORK
24265-KA3-760
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COUNTERSHAFT, GEARSHIFT FORK
24266-KA3-760
Superseded by 24266-KSR-730
|
$54.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-KS6-700
Superseded by 24311-KS6-701
|
$116.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24311-KS6-701
|
$116.73 | ||
|
Unavailable |
|||
|
#7
CENTER, SHIFT DRUM
24312-KA3-741
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SHIFTER
24315-KA3-710
|
$24.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFTER, DRUM
24320-KS6-700
|
$37.23 | ||
|
Unavailable |
|||
|
#10
COLLAR, SHIFTER
24322-KA3-740
Superseded by 24322-HA0-000
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SHIFTER
24322-HA0-000
|
$6.89 | ||
|
Unavailable |
|||
|
#11
PAWL, RATCHET
24324-KA3-740
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-000
Superseded by 24326-360-010
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-360-010
|
$6.51 | ||
|
Unavailable |
|||
|
#13
PLATE, GUIDE
24328-KS6-700
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, DRUM
24430-KA3-740
|
$26.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, DRUM STOPPER
24435-KA3-710
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPINDLE, GEARSHIFT
24610-KS6-700
|
$102.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, SHIFT RETURN
24651-KA3-740
|
$13.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-000
Superseded by 90023-041-010
|
$2.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-010
|
$2.56 | ||
|
Unavailable |
|||
|
#21
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER B, THRUST (14MM)
90428-958-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
