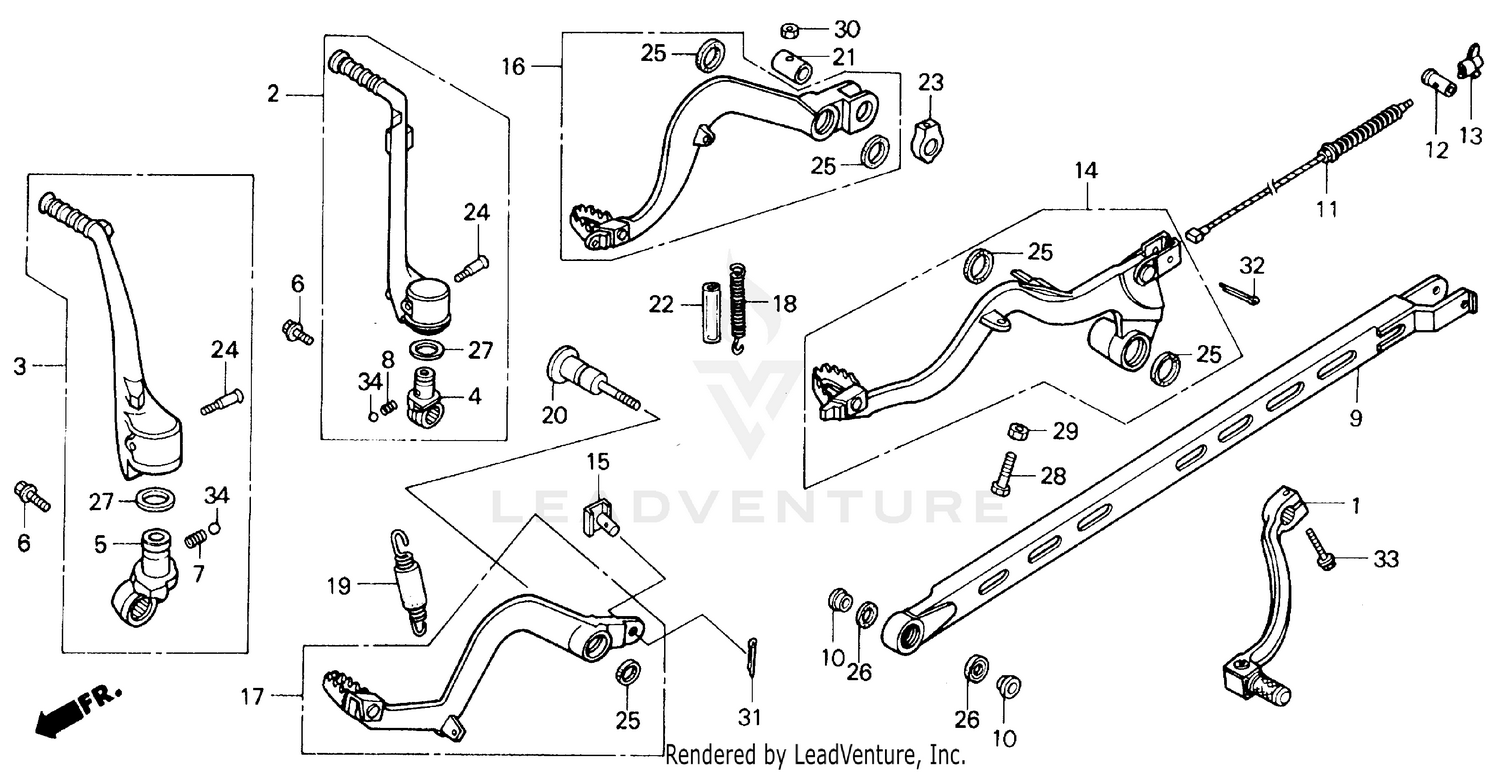

Pedal 85-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE
24700-KS6-700
Superseded by 24700-KZ4-J50
|
$62.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, CHANGE
24700-KS6-701
Superseded by 24700-KZ4-J50
|
$62.67 | ||
|
Unavailable |
|||
|
#1
PEDAL, CHANGE
24700-KZ4-890
Superseded by 24700-KZ4-J50
|
$62.67 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-KS6-700
|
$98.01 | ||
|
Unavailable |
|||
|
#5
JOINT, KICK ARM
28302-KS6-700
|
$82.66 | ||
|
Unavailable |
|||
|
#6
BOLT, KICK JOINT
28306-KAE-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, KICK JOINT
28306-KA3-830
Superseded by 28306-KAE-000
|
$14.40 | ||
|
Unavailable |
|||
|
#8
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
PEDAL, RR. BRAKE
46510-KS6-700
|
$96.42 | ||
|
Unavailable |
|||
|
#18
SPRING, BRAKE PEDAL
46511-KS6-701
Superseded by 46511-MN8-700
|
$4.35 | ||
|
Unavailable |
|||
|
#18
SPRING, BRAKE PEDAL
46511-MN8-700
|
$4.35 | ||
|
Unavailable |
|||
|
#20
SHAFT, BRAKE PIVOT
46513-KS7-700
Superseded by 46513-MAC-680
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, JOINT (NOT AVAILABLE)
46514-KS6-700
|
$6.92 | ||
|
Unavailable |
|||
|
#22
TUBE, BRAKE PEDAL SPRING
46515-KS6-700
|
$3.54 | ||
|
Unavailable |
|||
|
#23
JOINT, RR. BRAKE
46517-KS6-700
|
$6.19 | ||
|
Unavailable |
|||
|
#24
BOLT, KICK ARM
90101-KA4-700
Superseded by 90101-MAC-680
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, KICK ARM
90101-MAC-680
|
$7.44 | ||
|
Unavailable |
|||
|
#25
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST, SEAL (19X25X4.1) (ARAI)
91303-KA3-732
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X20)
96000-060-2000
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
|
#34
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
