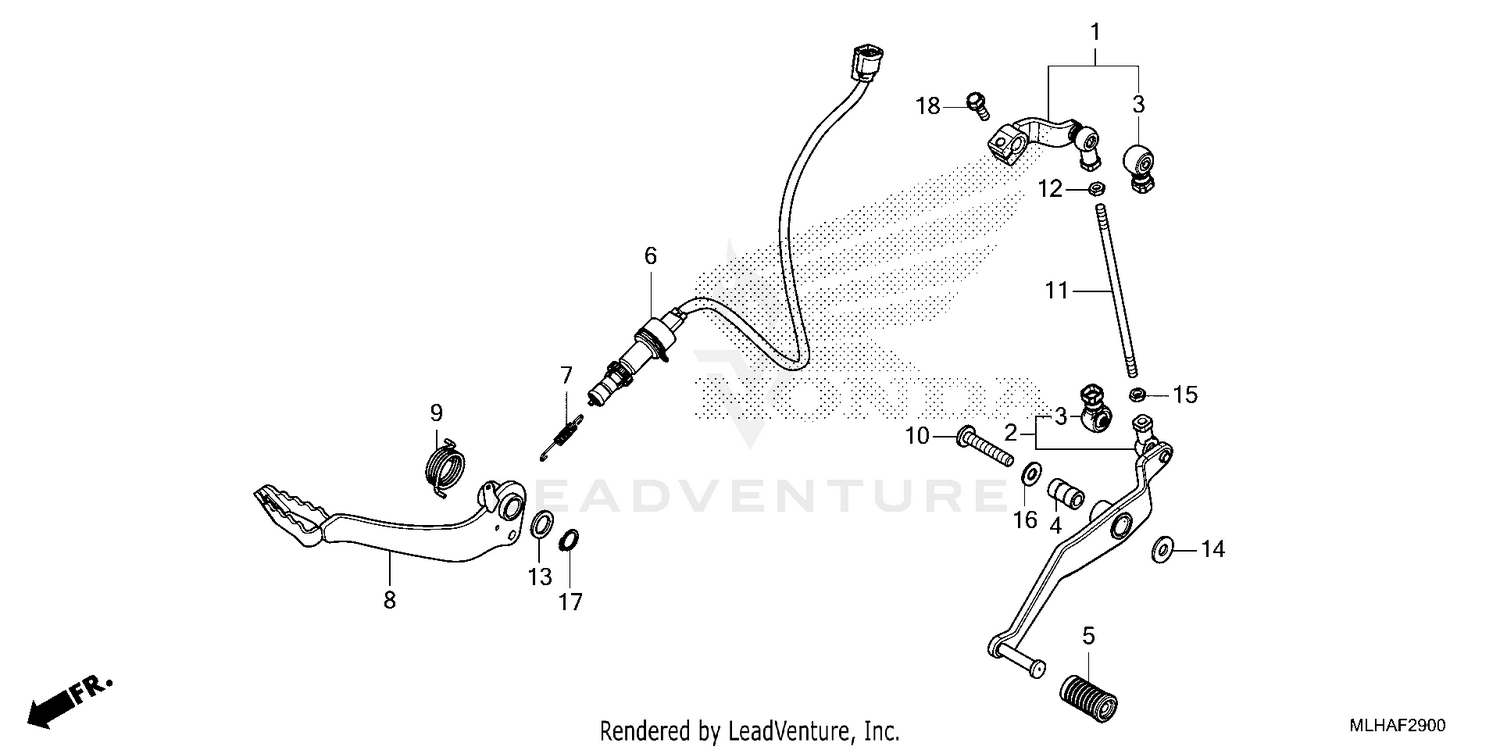

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT (COO)
24710-MGZ-J00
Superseded by 24710-MGZ-305
|
$20.51 | ||
|
Available to order. Add to View Price |
|||
|
#1
ARM, GEARSHIFT (COO)
24710-MGZ-305
|
$20.51 | ||
|
Unavailable |
|||
|
#2
PEDAL, GEARSHIFT
24720-MKG-A00
|
$55.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, GEARSHIFT PEDAL PIVOT
24731-K87-A00
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH, RR. STOP
35350-K2Y-J41
|
$25.33 | ||
|
Unavailable |
|||
|
#7
SPRING, STOP SWITCH
35357-K26-900
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, RR. BRAKE
46501-K87-A30
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, BRAKE PEDAL
46514-K87-A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SOCKET SPECIAL (8X45)
90110-K87-A00
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, TIE ROD
90165-MKG-A00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPECIAL (6MM) (LEFT HAND THREAD)
90301-MGZ-J00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (14MM)
90451-GBL-870
|
$3.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER (8.5X20)
90526-K87-A00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94001-06070-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP (OUTER) (14MM)
94511-14000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
