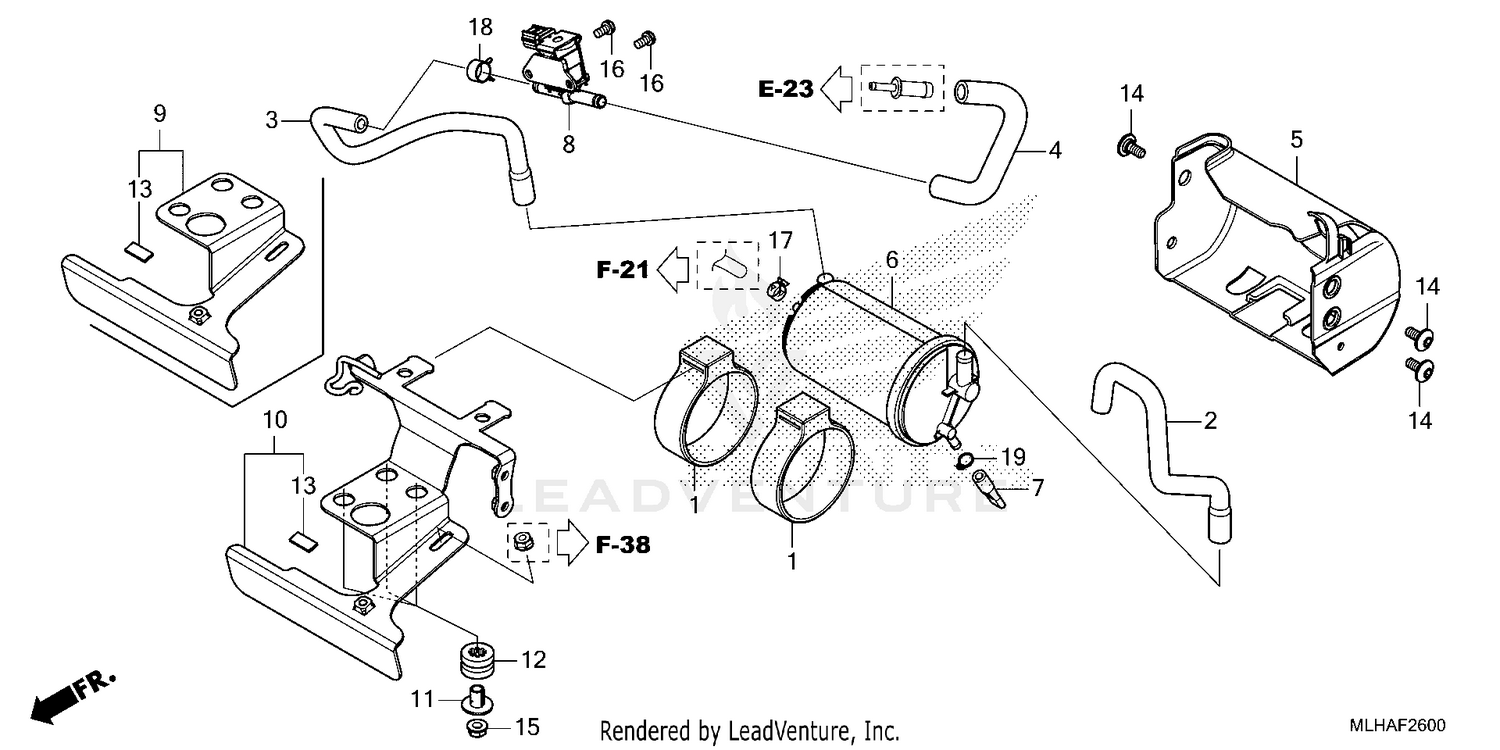

Canister@stay Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, CANISTER MOUNTING
17411-KPP-930
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, AIR
17413-K87-A00
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, PURGE (PCSV-CANISTER)
17414-K87-L50
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, PURGE CONTROL VALVE JOINT
17415-K87-L00
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER A, CANISTER
17421-K87-L00
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
CANISTER
17421-KYJ-902
|
$100.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, DRAIN
17431-K87-L00
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, PUR CONT SOL
36162-K2Y-J01
|
$38.89 | ||
|
Unavailable |
|||
|
#10
STAY, REGULATE RECTIFIER
50347-K87-L30
|
$31.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, FR. FENDER (BLACK) (FOR RR.)
61104-428-730
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, HEADLIGHT CASE MOUNTING
61304-415-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, PROTECTOR
81257-KWC-900
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (6X14)
90111-K87-A00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U (6MM)
90301-MG3-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-WASHER (5X10)
93892-05010-08
|
$1.20 | ||
|
Unavailable |
|||
|
#17
CLAMP, TUBE (D8)
95002-40800-08
|
$2.35 | ||
|
Unavailable |
|||
|
#18
CLAMP, TUBE (D12)
95002-41200-08
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
