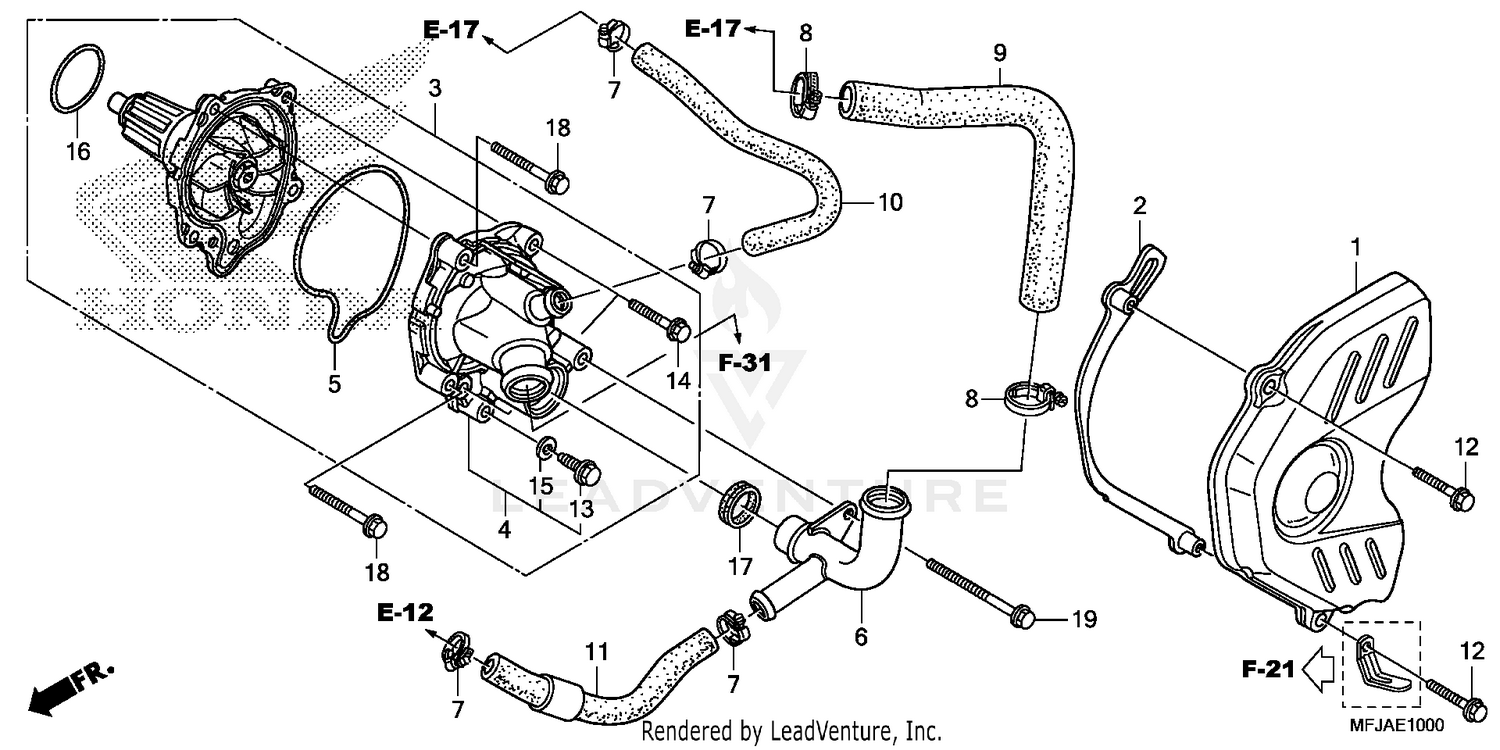

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. RR.
11350-MFJ-D00
|
$22.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DRIVE CHAIN GUIDE
11355-MFJ-D00
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
WATER PUMP ASSY.
19200-MFJ-305
|
$281.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, WATER PUMP
19220-MFJ-D00
|
$117.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, WATER PUMP COVER
19226-MFJ-D00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT A, WATER PUMP COVER
19230-MFJ-D00
|
$76.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WATER HOSE (25MM)
19504-KY1-003
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, HOSE (24-32MM)
19516-ML7-691
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE A, WATER
19525-MFJ-D00
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE B, WATER
19526-MFJ-D00
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE C, WATER
19527-MFJ-A40
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12) (CT200)
90013-883-000
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X25)
90121-MV9-670
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, WATER PIPE
91315-MB0-013
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X65) (Honda Code 2552545)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
