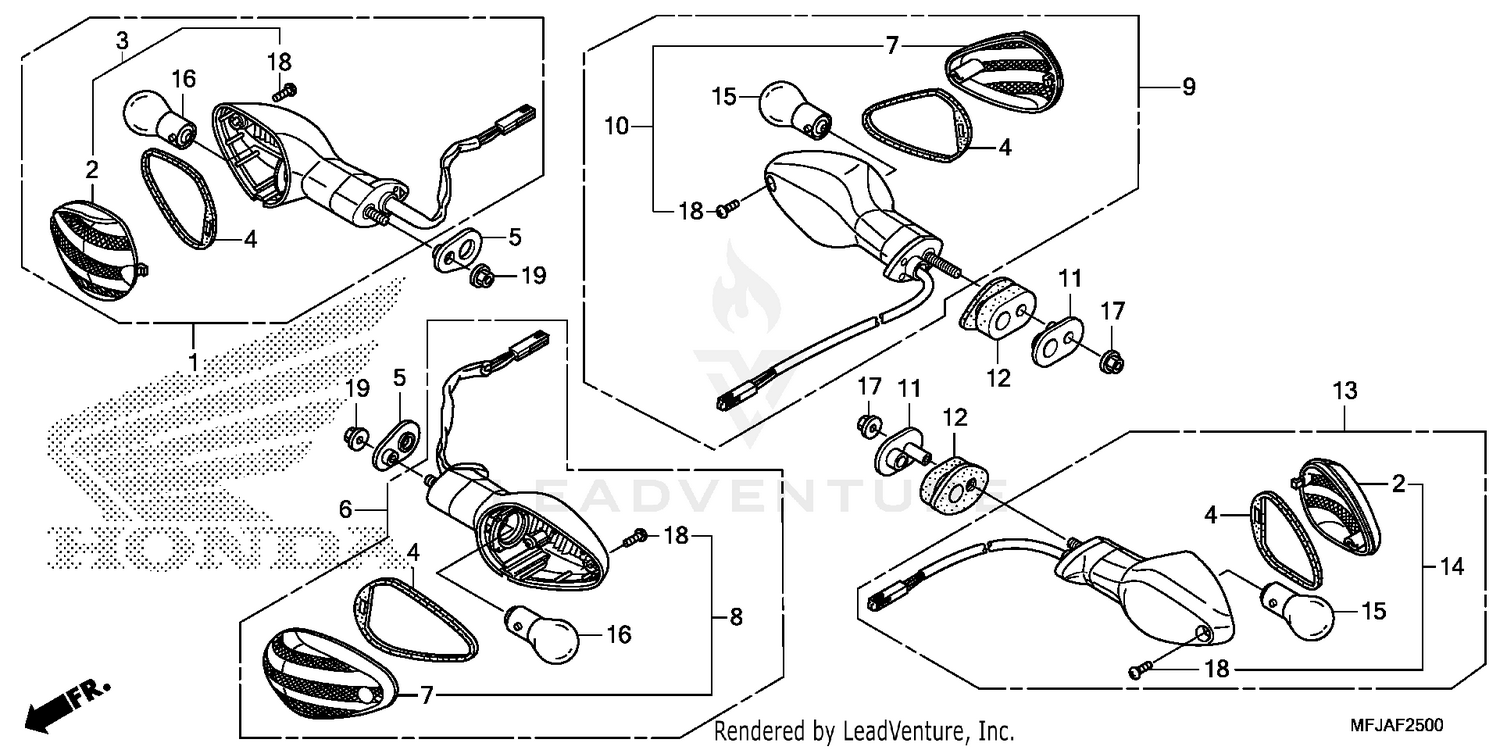

Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINKER ASSY R FR
33400-MFJ-A44
|
$116.11 | ||
|
Available to order. Add to View Price |
|||
|
#1
WINKER ASSY R FR
33400-MFJ-305
Superseded by 33400-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#1
WINKER ASSY R FR
33400-MFJ-315
Superseded by 33400-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#2
LENS, R. TURN SIGNAL (R. FR./L. RR.)
33402-KTG-305
Superseded by 33402-MFJ-A41
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, R. TURN SIGNAL (R. FR./L. RR.)
33402-MFJ-A41
|
$14.62 | ||
|
Unavailable |
|||
|
#3
LENS & SCREW SET, R. TURN SIGNAL (COO)
33402-MFJ-307
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, LENS
33407-MFJ-A41
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, TURN SIGNAL SETTING
33409-MBW-000
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
WINKER ASSY L FR
33450-MFJ-A44
|
$150.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
WINKER ASSY L FR
33450-MFJ-305
Superseded by 33450-MFJ-A44
|
$150.89 | ||
|
Unavailable |
|||
|
#6
WINKER ASSY L FR
33450-MFJ-315
Superseded by 33450-MFJ-A44
|
$150.89 | ||
|
Unavailable |
|||
|
#7
LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)
33452-KTG-305
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS & SCREW SET, L. TURN SIGNAL (COO)
33452-MFJ-307
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
WINKER ASSY R RR
33600-MFJ-A44
|
$116.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
WINKER ASSY R RR
33600-MFJ-305
Superseded by 33600-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#9
WINKER ASSY R RR
33600-MFJ-315
Superseded by 33600-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#10
LENS & SCREW SET, R. TURN SIGNAL (COO)
33602-MFJ-306
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, TURN SIGNAL
33611-MEE-D00
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, TURN SIGNAL MOUNTING
33612-MEE-D00
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
WINKER ASSY L RR
33650-MFJ-A44
|
$116.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WINKER ASSY L RR
33650-MFJ-305
Superseded by 33650-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#13
WINKER ASSY L RR
33650-MFJ-315
Superseded by 33650-MFJ-A44
|
$116.11 | ||
|
Unavailable |
|||
|
#14
LENS & SCREW SET, L. TURN SIGNAL (COO)
33652-MFJ-306
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB, TURN SIGNAL (12V 21W) (RR.)
34905-MAS-601
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)
34906-447-711
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (6MM)
90301-634-670
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (4X16)
93901-34480
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
