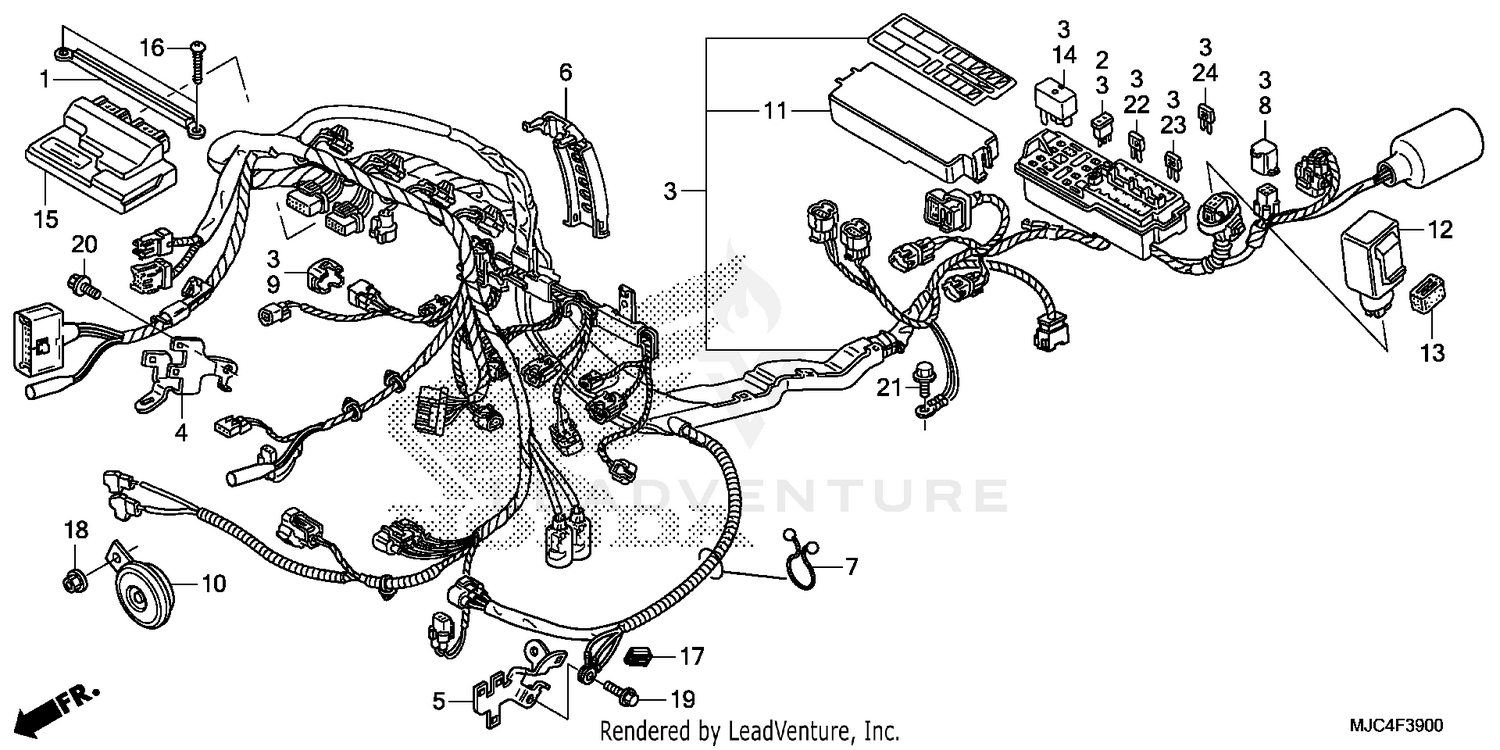

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, PGM-FI UNIT
17239-MFJ-D00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MJC-L10
|
$1,508.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, R. FR. CONNECTOR
32121-MFJ-A50
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, L. CONNECTOR
32125-MJC-A00
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, PROTECTOR B
32155-MFJ-D00
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK, PURSE
32171-GF9-621
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, DUMMY (6P) (NATURAL)
32606-MEL-D01
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
HORN (LOW)
38120-KCZ-J71
|
$40.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER (UPPER)
38252-MFJ-D01
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY, TURN SIGNAL
38301-KTF-671
|
$43.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
38306-KK4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#14
RELAY (MICRO ISO 4P)
38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#15
PGM-FI UNIT
38770-MJC-L01
|
$1,642.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (4X18) (DELTA PT)
90105-MFJ-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRACKET (RED)
91554-SM4-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
