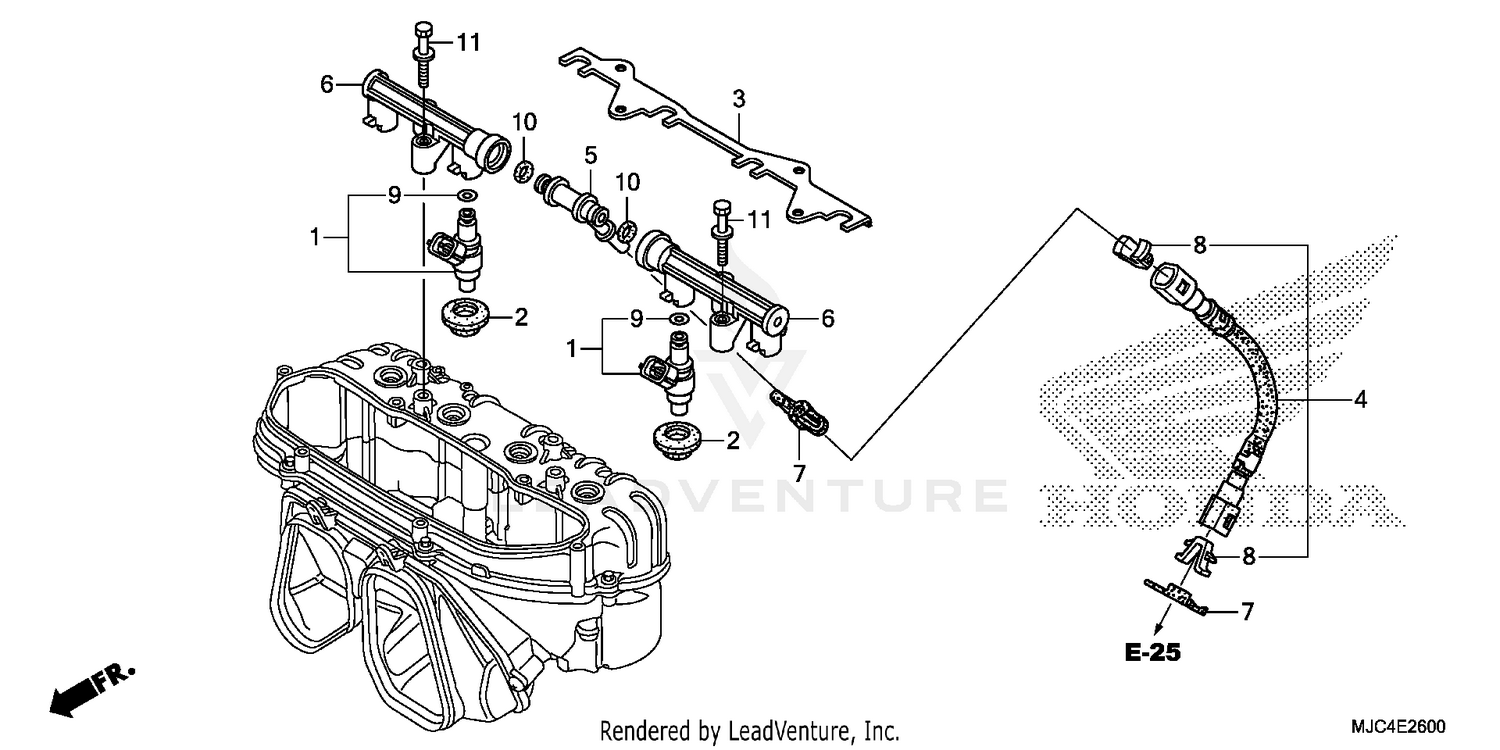

Fuel Injector Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INJECTOR ASSY., FUEL
16460-MFJ-D01
|
$226.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL RING, INJECTOR
16472-MFJ-D00
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, INJECTOR
16501-MFJ-D00
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE A, FUEL FEED
16527-MFJ-D01
|
$78.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
T-JOINT, FUEL
16630-MFJ-D00
|
$26.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FUEL
16640-MFJ-D00
|
$64.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, CONNECTOR
16719-MFJ-D00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)
17711-S0X-931
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (7.8X1.9)
91301-P7A-004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (7.47X3.6)
91301-PLC-000
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (5X30)
93401-05030-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
