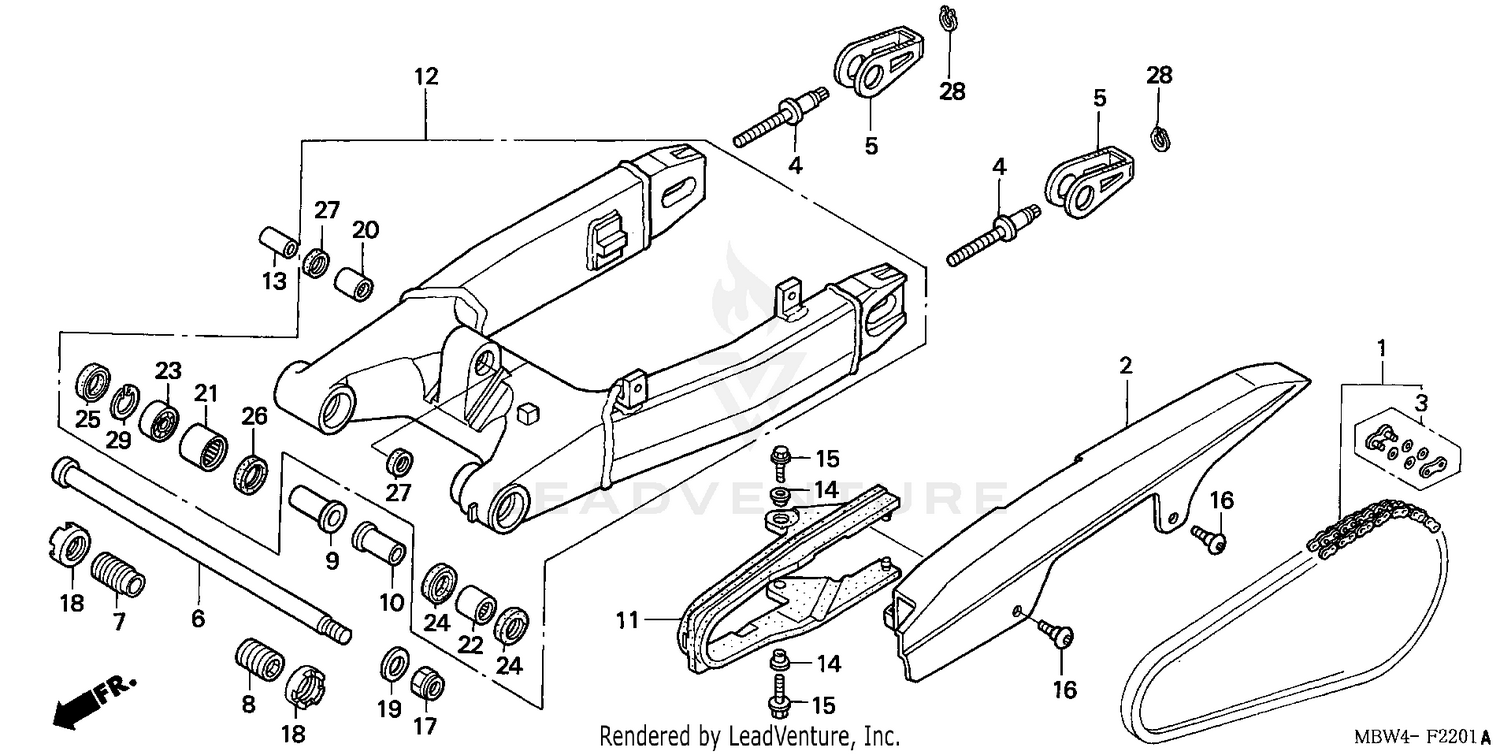

Swingarm ('01-'06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO) (STANDARD LINK 108L)
06405-MAL-P00
|
$169.03 | ||
|
Unavailable |
|||
|
#1
CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL) (STANDARD LINK 108L)
06405-MAL-P10
|
$157.79 | ||
|
Unavailable |
|||
|
#2
CASE, DRIVE CHAIN
40510-MBW-000
|
$93.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK SET (DAIDO)
40535-MAL-G01
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER LINK SET (RK EXCEL)
40535-MAL-G02
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, CHAIN ADJUSTING
40542-KV3-700
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
ADJUSTER, CHAIN
40543-MAS-000
Superseded by 40543-MAS-010
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MBW-E10
|
$47.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, R. PIVOT ADJUSTING
52108-MBW-000
|
$27.51 | ||
|
Unavailable |
|||
|
#8
BOLT, L. PIVOT ADJUSTING
52109-MBW-000
|
$27.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, R. PIVOT DISTANCE
52142-MBW-E10
|
$21.90 | ||
|
Unavailable |
|||
|
#10
COLLAR, L. PIVOT DISTANCE
52143-MBW-000
|
$21.11 | ||
|
Unavailable |
|||
|
#11
SLIDER, CHAIN
52170-MBW-000
|
$58.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWINGARM SUB-ASSY.
52200-MBW-E10
|
$933.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
81312-GJ5-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X11)
90106-KY2-701
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U (18MM)
90305-KZ4-891
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SWINGARM PIVOT LOCK
90355-469-000
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (18X32X2)
90401-KZ4-890
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BEARING, NEEDLE
91071-MBW-E11
|
$20.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE
91071-MR7-003
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (20X37X9)
91072-MR7-003
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (26X37X5)
91214-MR7-003
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (28X34X4)
91251-MBW-E11
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP, OUTER (10MM)
94511-10000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP, INNER (37MM)
94520-37000
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
