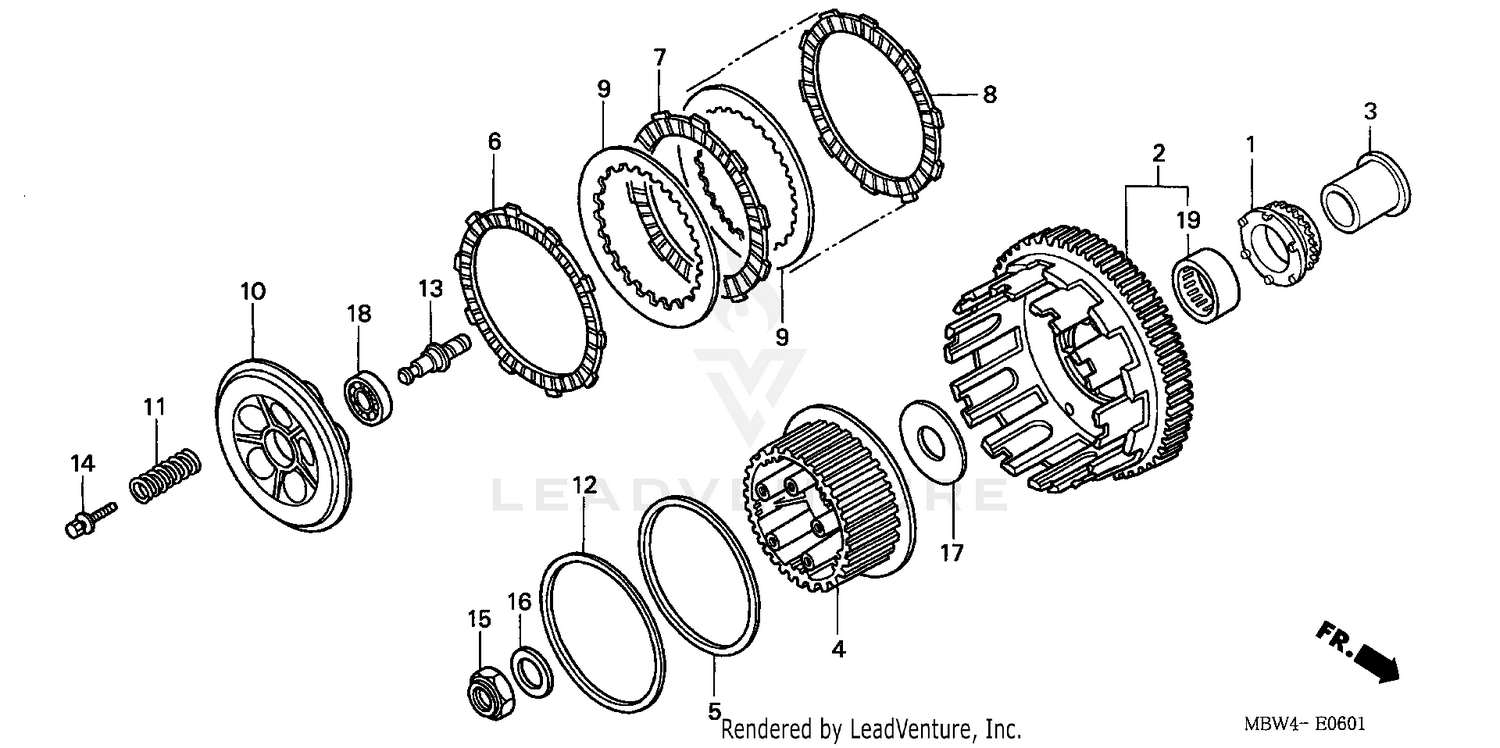

Clutch ('01-'06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (25T)
15131-MAS-003
|
$71.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER)
22100-MBW-E21
|
$277.29 | ||
|
Unavailable |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-MBW-000
|
$18.46 | ||
|
Unavailable |
|||
|
#4
CENTER, CLUTCH
22120-MBG-D00
|
$121.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, JUDDER SPRING
22125-ML7-000
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MAE-000
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK, CLUTCH FRICTION
22201-MAS-E00
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISK B, CLUTCH FRICTION
22202-MAE-000
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH
22321-MAS-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH PRESSURE
22350-MBG-D00
|
$72.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-MBW-E20
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, JUDDER
22402-MAS-E00
|
$25.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLUTCH LIFTER
22847-MBW-E20
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X28)
90024-MAS-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (22MM)
90231-MM5-000
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING (22MM)
90432-MM5-000
|
$10.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER (60X25X3)
90459-MBW-E20
|
$6.15 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (16003)
91009-MAS-003
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (35X42X23)
91026-MV9-671
|
$102.71 | ||
|
Available to order. Add to View Price |
|||
