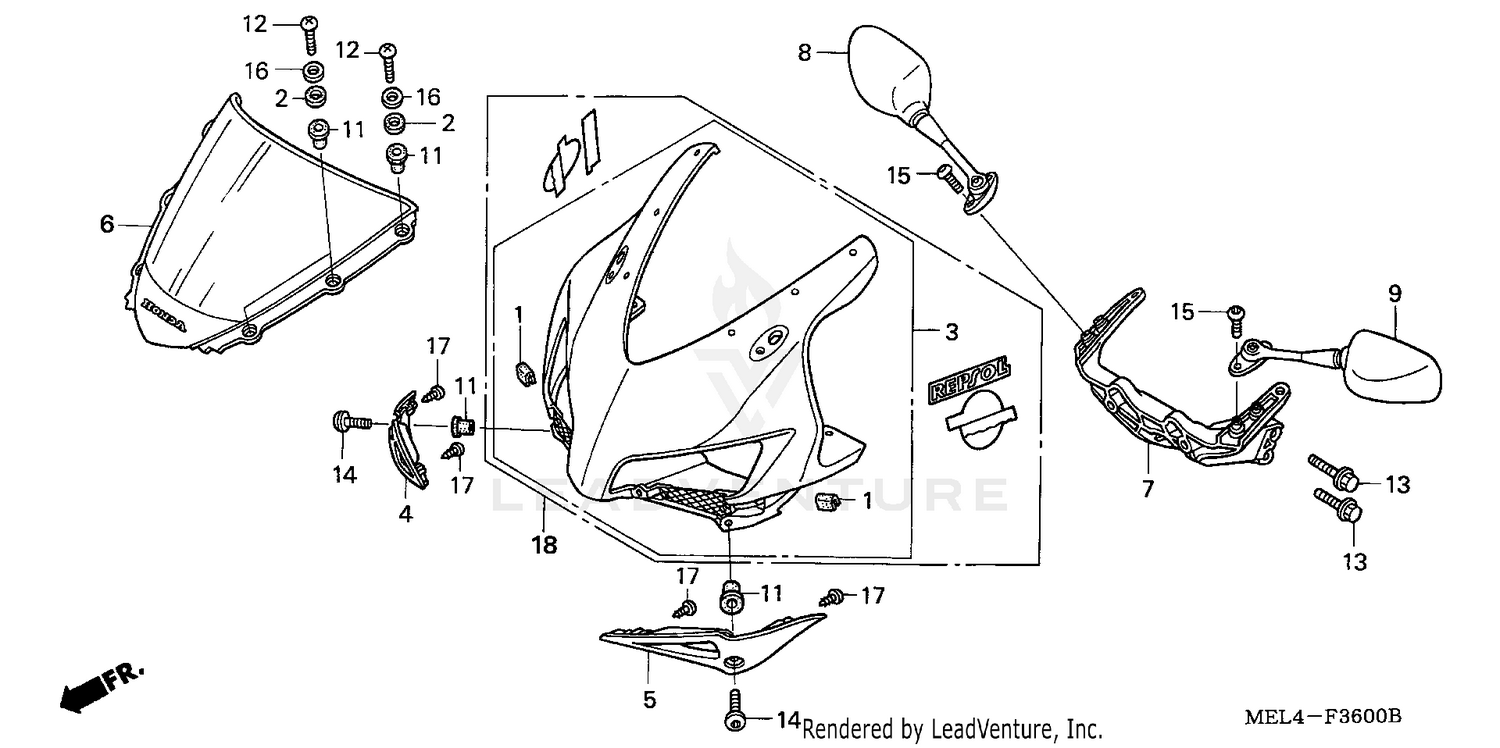

Upper Cowl (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, PROTECTOR
64121-MEJ-000
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, SCREEN SETTING
64205-166-610
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
COWL (UPPER) *NH1* (BLACK)
64211-MEL-000ZA
|
$460.82 | ||
|
Unavailable |
|||
|
#3
COWL (UPPER) *R258* (WINNING RED)
64211-MEL-000ZB
|
$454.99 | ||
|
Unavailable |
|||
|
#3
COWL (UPPER) *NH411M* (FORCE SILVER METALLIC)
64211-MEL-000ZC
|
$460.82 | ||
|
Unavailable |
|||
|
#4
COVER, R. AIR IN.
64230-MEL-000
|
$17.20 | ||
|
Unavailable |
|||
|
#5
COVER, L. AIR IN.
64240-MEL-000
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
WINDSCREEN SET (TYPE1) (WL)
64250-MEL-000ZA
|
$273.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY A, COWL (UPPER)
64501-MEL-010
|
$185.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
MIRROR ASSY., R. BACK (COO)
88110-MEL-003
Superseded by 88110-MEL-305
|
$101.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
MIRROR ASSY., R. BACK (COO)
88110-MEL-013
Superseded by 88110-MEL-305
|
$101.65 | ||
|
Unavailable |
|||
|
#9
MIRROR ASSY., L. BACK (COO)
88120-MEL-003
Superseded by 88120-MEL-305
|
$101.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR ASSY., L. BACK (COO)
88120-MEL-013
Superseded by 88120-MEL-305
|
$101.65 | ||
|
Unavailable |
|||
|
#11
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, TRUSS (5X18)
90111-MEL-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X28)
90120-MEE-000
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (5X20)
90120-MEL-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X13)
90130-MEE-000
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, THRUST (5MM)
90504-964-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
