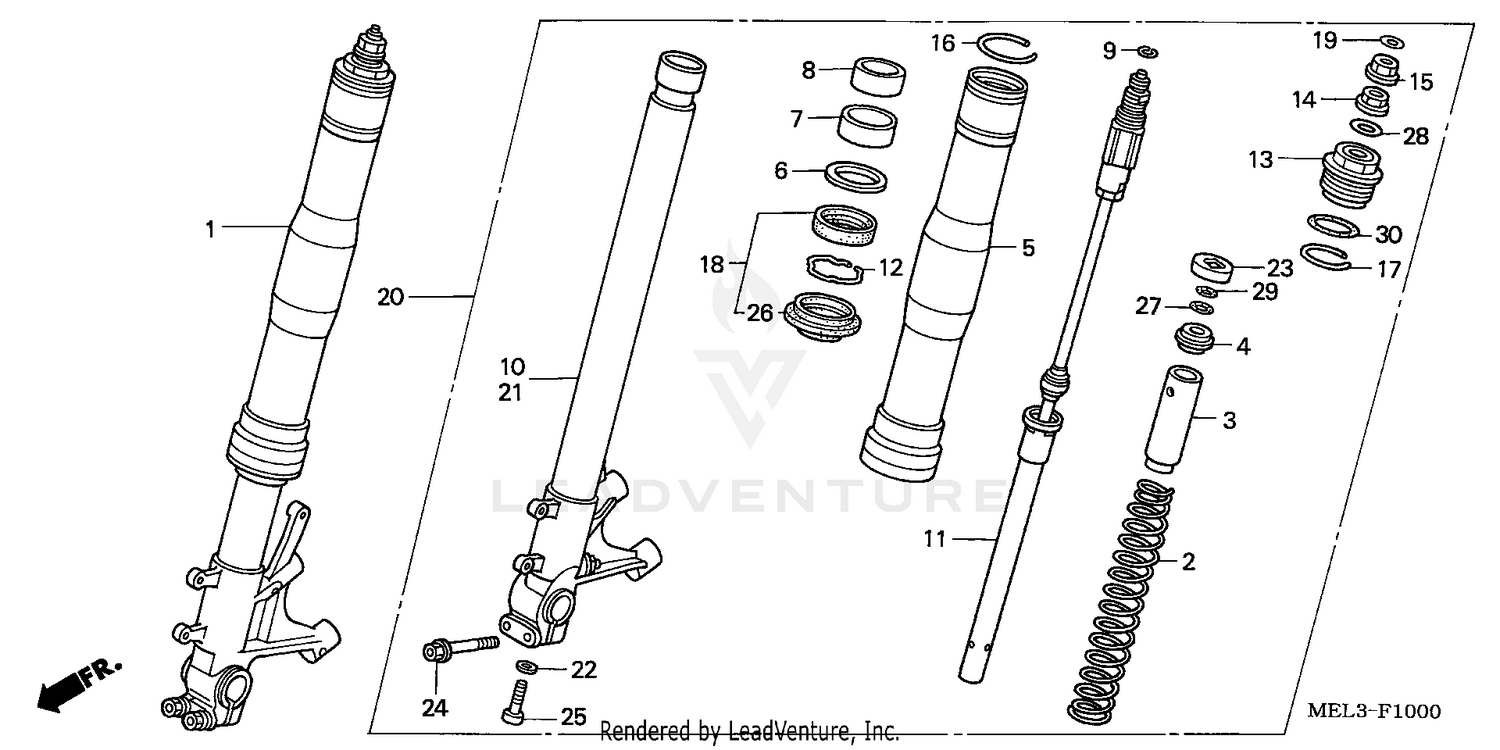

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR.
51400-MEL-003
|
$963.70 | ||
|
Unavailable |
|||
|
#2
SPRING, FR. FORK
51401-MEL-003
|
$83.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51403-MCF-003
|
$38.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SPRING SEAT
51406-MW4-003
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE (OUTER)
51410-MEL-003
|
$414.44 | ||
|
Unavailable |
|||
|
#6
RING, BACK-UP
51412-MEL-003
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, GUIDE
51414-MAZ-003
Superseded by 51414-MAZ-751
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SLIDER
51415-MAZ-003
Superseded by 51415-MCF-003
|
$37.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SLIDER
51415-MCF-003
|
$37.08 | ||
|
Unavailable |
|||
|
#9
RING B, STOPPER
51423-MCJ-751
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, R. SLIDE
51425-MEL-003
|
$414.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, FR.
51430-MEL-003
|
$404.29 | ||
|
Unavailable |
|||
|
#12
RING, OIL SEAL STOPPER
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FR. FORK
51450-MEL-003
|
$36.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK
51451-MEL-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE B, ADJUSTING
51453-MCJ-751
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER
51455-MW4-003
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOPPER
51456-MCJ-751
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK
51490-MEJ-003
|
$27.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
LABEL
51496-MCJ-751
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
FORK ASSY., L. FR.
51500-MEL-003
|
$963.70 | ||
|
Unavailable |
|||
|
#21
PIPE, L. SLIDE
51525-MEL-003
|
$337.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, SPRING ADJUSTER
53702-MCJ-751
|
$14.78 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (8X45)
90109-MR7-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SOCKET (10X35)
90126-MR7-003
|
$19.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL
91254-MEJ-003
Superseded by 91254-MEJ-013
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (10.8X2.4)
91255-MCJ-751
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (23.3X2.4)
91256-MCJ-751
Superseded by 91356-KFG-003
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (9.5X1.5)
91257-MCJ-751
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (42.2X2.4)
91258-GF4-003
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
