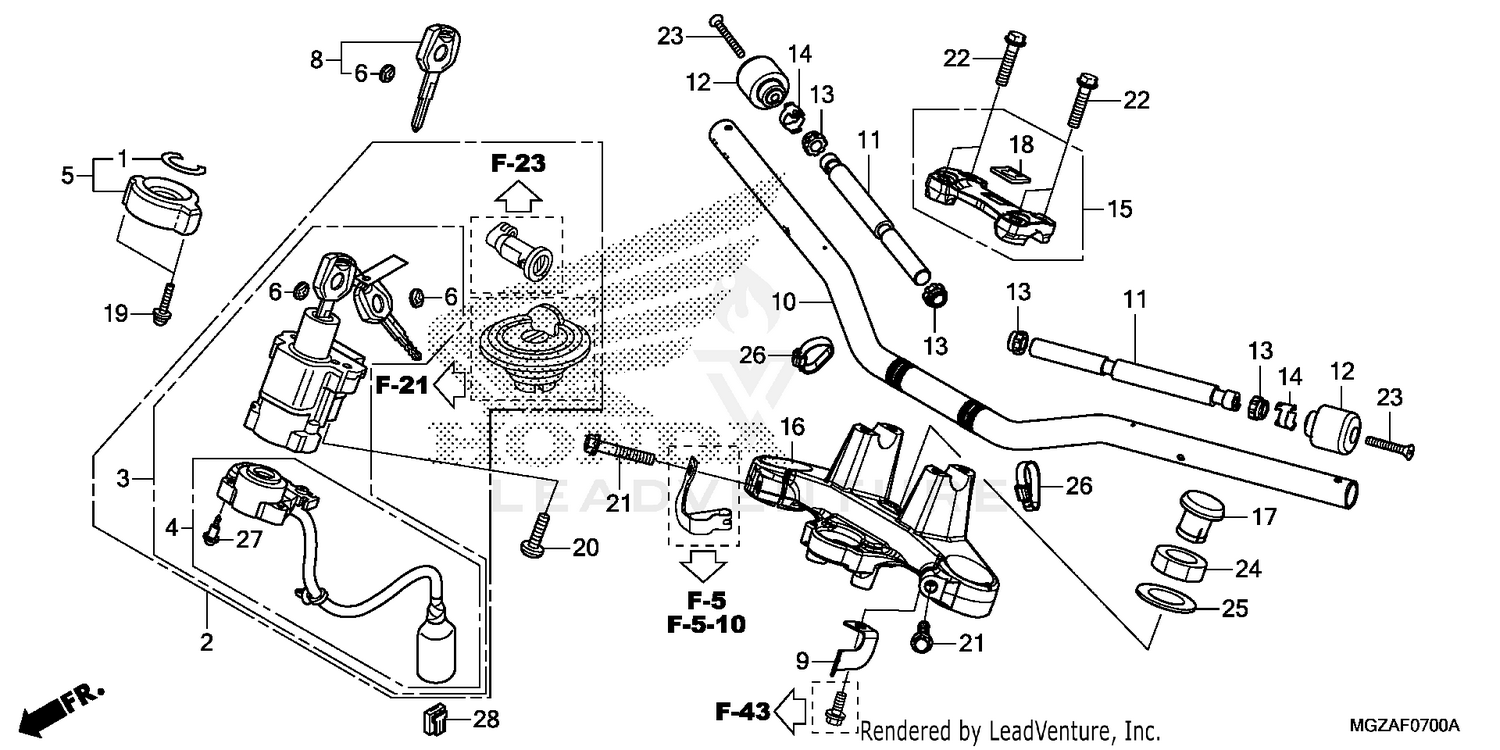

Handlebar@top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, IGNITION SWITCH
30433-MBW-602
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCK SET
35010-MGZ-A00
Superseded by 35010-MGZ-A01
|
$279.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCK SET
35010-MGZ-A01
|
$279.00 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., COMBINATION & LOCK (MSDS)
35100-MGZ-A01
Superseded by 35100-MGZ-A02
|
$345.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., COMBINATION & LOCK (MSDS)
35100-MGZ-A02
|
$345.00 | ||
|
Unavailable |
|||
|
#4
BASE, CONTACT
35101-MGZ-J01
|
$48.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, COMBINATION SWITCH
35106-MAT-A00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, KEY
35113-MFJ-D01
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY, BLANK
35121-MGS-A31
|
$28.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, L. FR. WIRE
35910-MGZ-J00
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
HANDLEBAR (COO)
53100-MGZ-306
|
$66.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
WEIGHT B, HANDLEBAR
53104-KYJ-900
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT, HANDLEBAR
53104-MGZ-J00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, HANDLE WEIGHT (B)
53107-MY1-000
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, HANDLE WEIGHT SNAP
53108-KR3-770
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
53130-MGS-D30ZB
|
$43.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRIDGE, FORK TOP
53230-MGZ-J40
|
$114.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, STEERING STEM NUT
53232-MJ4-670
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM, PRODUCT (MARUI)
86150-KPG-901
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM, PRODUCT (UEHARA)
86150-KPG-902
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X22)
90020-MBW-610
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ONE-WAY (8MM)
90107-MBG-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X40)
90108-KZZ-900
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X36) BOLT, FLANGE (8X35)
90111-362-000
|
$6.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, OVAL (6X50)
90191-KYJ-900
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, STEERING STEM
90304-KGA-900
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, STEERING STEM
90503-KGA-900
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (3X16)
91059-KY2-711
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, BRACKET (RED)
91554-SM4-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
