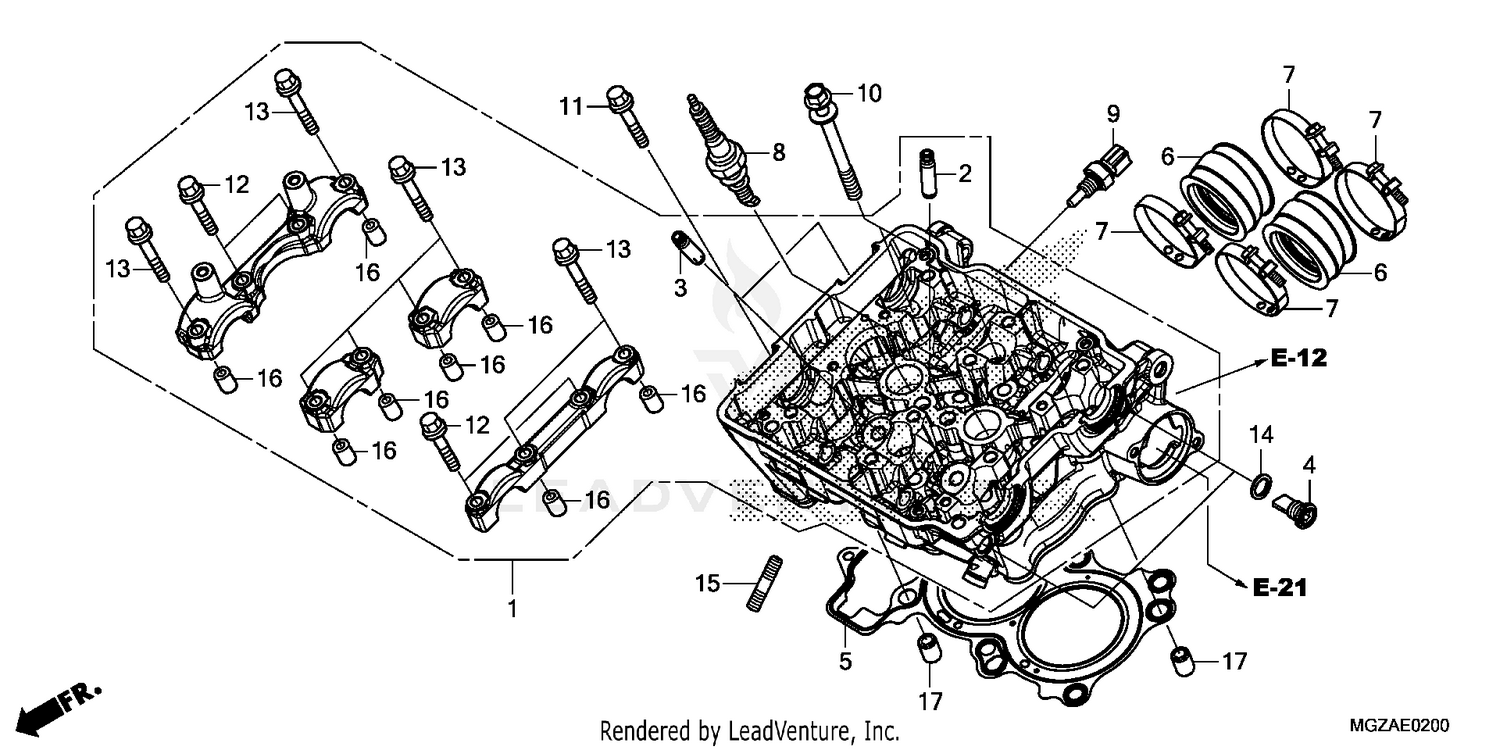

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MGZ-J00
|
$668.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)
12205-KYJ-305
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)
12204-KYJ-305
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)
12205-KYJ-305
|
$23.31 | ||
|
Unavailable |
|||
|
#4
BOLT, SEALING (12MM)
12207-MGZ-J00
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
12251-MGZ-J01
|
$39.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
16211-MGZ-J00
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16217-MGZ-J00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (CPR8EA-9) (NGK)
31916-KRM-841
|
$7.10 | ||
|
Unavailable |
|||
|
#9
SENSOR ASSY., WATER TEMPERATURE
37870-MGS-D31
|
$60.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (9X100)
90007-MGZ-J00
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X35)
90011-MGZ-J00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X32)
90017-KYJ-900
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X39.5)
90019-KYJ-900
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (12.2X17X1.5)
90418-KYJ-900
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X22)
92900-08022-3E
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
