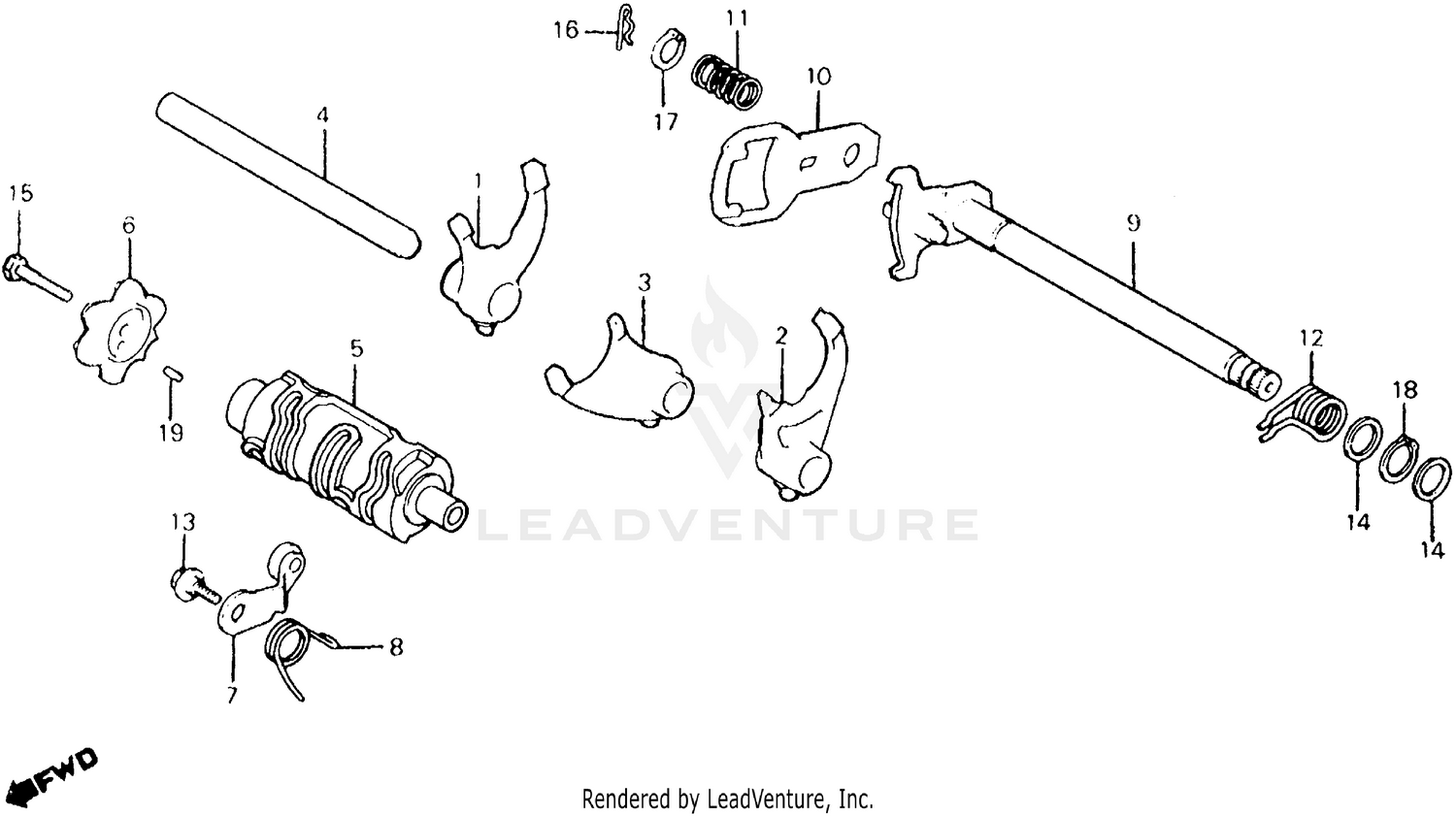

Gearshift Drum + Gearshift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT (NOT AVAILABLE)
24211-965-000
|
$42.89 | ||
|
Unavailable |
|||
|
#2
FORK, L. GEARSHIFT (NOT AVAILABLE)
24221-965-000
|
$42.89 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT (NOT AVAILABLE)
24231-965-000
|
$42.89 | ||
|
Unavailable |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-399-000
|
$19.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT (NOT AVAILABLE)
24301-965-010
|
$71.28 | ||
|
Unavailable |
|||
|
#6
CAM, GEARSHIFT
24411-446-650
|
$56.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-437-000
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHIFT DRUM STOPPER
24435-437-000
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT
24610-446-650
|
$54.76 | ||
|
Unavailable |
|||
|
#10
PLATE, GEARSHIFT
24621-446-650
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, GEARSHIFT PLATE
24631-107-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, GEARSHIFT RETURN
24651-437-000
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-000
Superseded by 90023-041-010
|
$2.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-041-010
|
$2.56 | ||
|
Unavailable |
|||
|
#14
WASHER, THRUST (14MM)
90451-001-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#16
PIN, LOCK (10MM)
94251-10000
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROLLER (4X10)
96220-40100
|
$0.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
