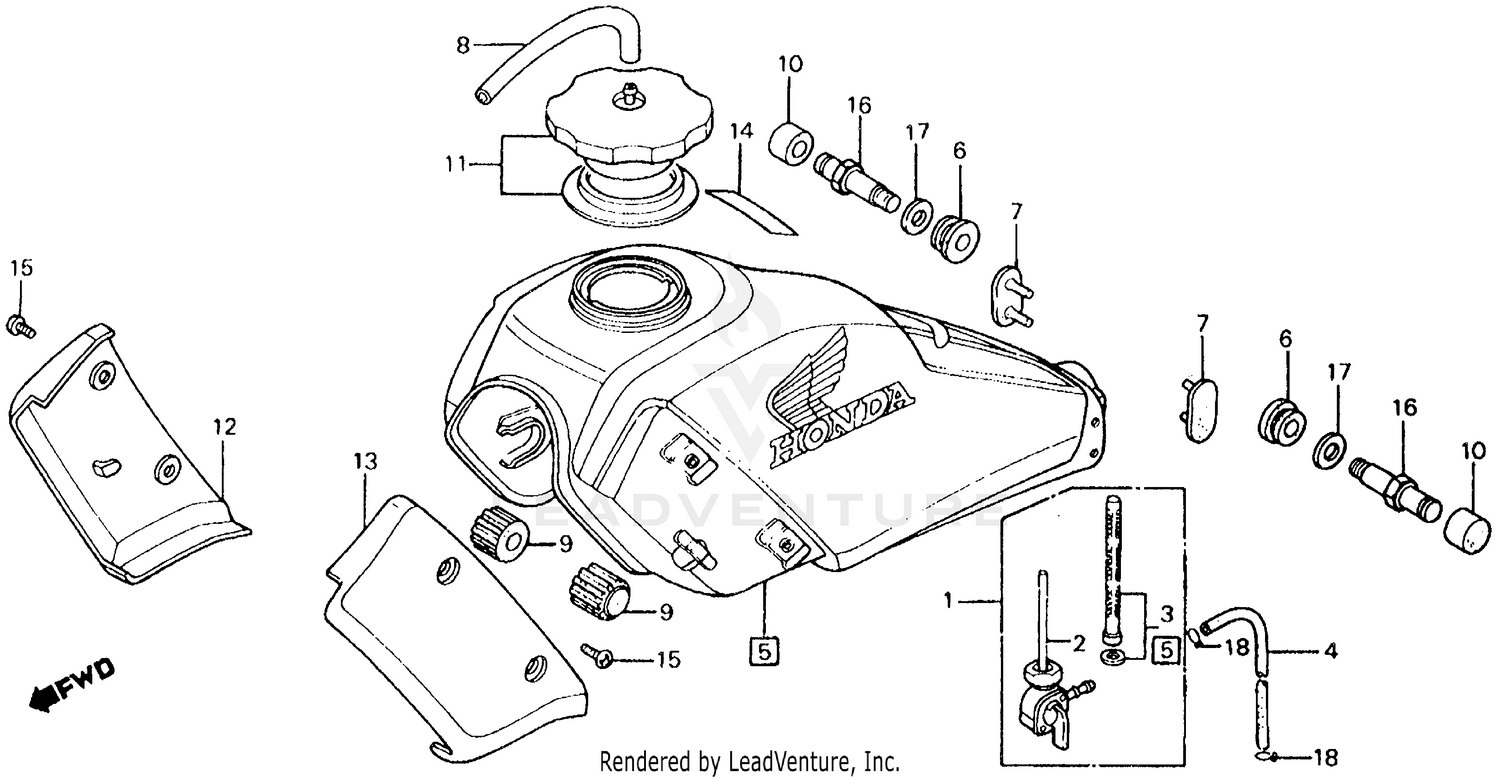

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-168-005
Superseded by 16950-168-015
|
$41.16 | ||
|
Unavailable |
|||
|
#1
PETCOCK ASSY.
16950-168-015
|
$41.16 | ||
|
Unavailable |
|||
|
#2
BODY SET, PETCOCK (HONDA KIKAKI)
16951-149-025
|
$37.25 | ||
|
Unavailable |
|||
|
#3
SCREEN SET
16952-166-015
Superseded by 16952-166-305
|
$21.85 | ||
|
Unavailable |
|||
|
#4
TUBE, FUEL (NOT AVAILABLE)
16955-965-000
|
$9.09 | ||
|
Unavailable |
|||
|
#5
TANK SET, FUEL *NH24* (CERAMIC WHITE) (NOT AVAILABLE)
175A1-965-020ZA
|
$544.74 | ||
|
Unavailable |
|||
|
#6
RUBBER, TANK SETTING
17513-965-010
|
$4.35 | ||
|
Unavailable |
|||
|
#7
RUBBER, TANK (NOT AVAILABLE)
17517-965-000
|
$4.22 | ||
|
Unavailable |
|||
|
#8
TUBE, FUEL CAP BREATHER
17530-437-000
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, FR. FUEL TANK
17611-HA5-000
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, FR. FUEL TANK
17611-176-000
Superseded by 17611-HA5-000
|
$6.53 | ||
|
Unavailable |
|||
|
#10
CUSHION, FR. FENDER
17611-965-000
|
$5.71 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL FILLER (TOYOSHA)
17620-HA5-670
Superseded by 17620-HC0-003
|
$52.73 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL FILLER (TOYOSHA)
17620-HC0-003
|
$52.73 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL FILLER (TOYOSHA)
17620-965-003
Superseded by 17620-HC0-003
|
$52.73 | ||
|
Unavailable |
|||
|
#12
GUIDE, R. AIR *R109* (PASSION RED) (NOT AVAILABLE)
19071-965-000ZA
|
$25.91 | ||
|
Unavailable |
|||
|
#13
GUIDE, L. AIR *R109* (PASSION RED) (NOT AVAILABLE)
19075-965-000ZA
|
$25.91 | ||
|
Unavailable |
|||
|
#14
LABEL, USE CAUTION *NH1* (BLACK) (NOT AVAILABLE)
87504-130-720ZB
Superseded by 87504-130-720ZA
|
$3.71 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (5X8)
90101-965-000
|
$1.70 | ||
|
Unavailable |
|||
|
#16
BOLT, TANK MOUNTING
90105-965-000
|
$9.31 | ||
|
Unavailable |
|||
|
#17
WASHER, TANK SETTING
90505-961-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
