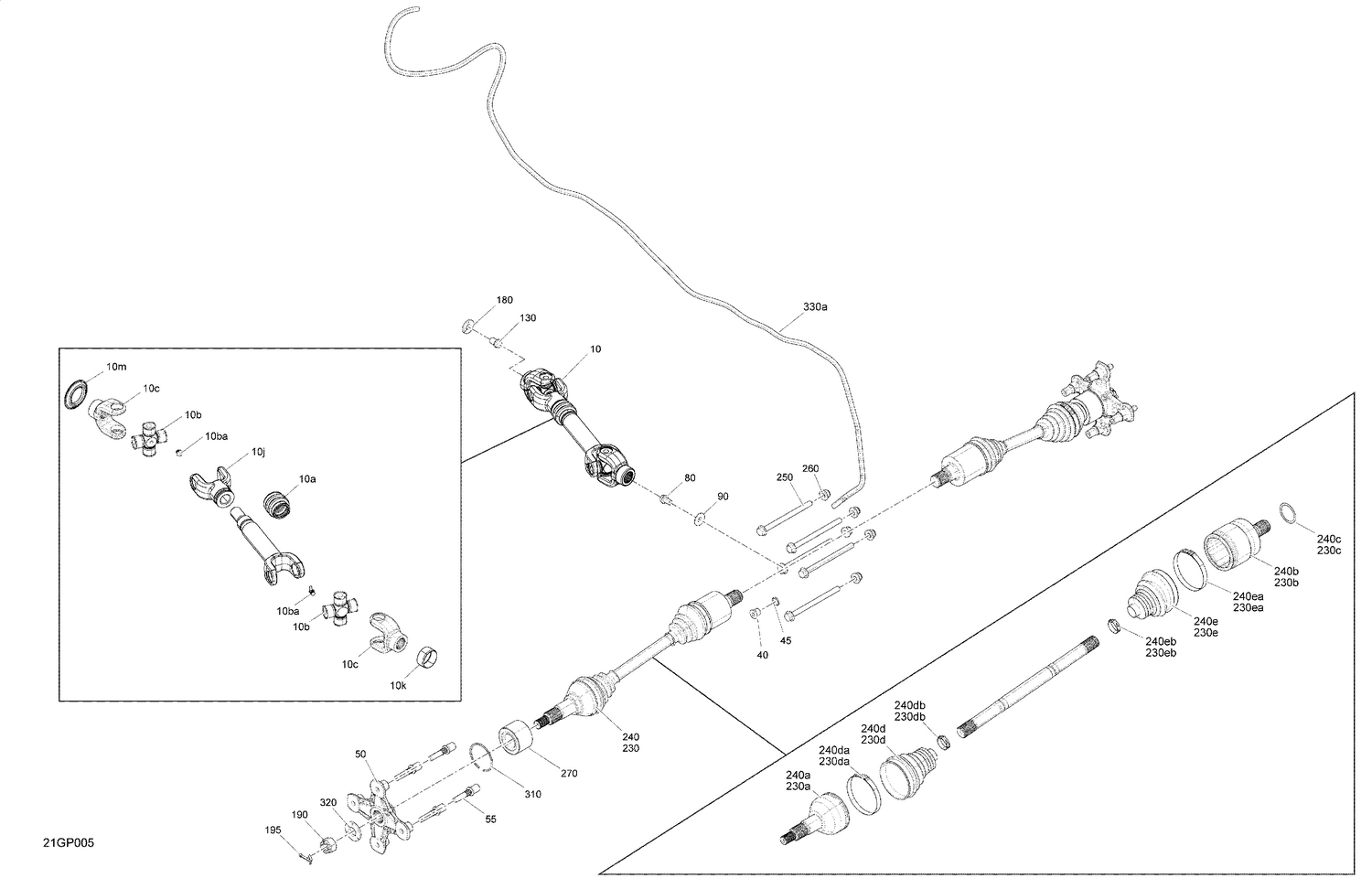

04- Drive - Rear - Common Parts - Max Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Shaft Ass'y Kit
703500987
|
$412.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Rubber Boot
715900118
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Universal Joint Ass'y
703500846
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#10ba
Grease Fitting
715900184
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Fixe Yoke
715900296
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10j
Spline Yoke
715900106
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#10k
Wear Ring
705400036
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#10m
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Wheel Hub
705501900
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Wheel Stud
250300642
Superseded by 250300643
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#90
Flat Washer M10
250200014
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Hex Flange Screw M12 X 16
250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Castellated Nut M18
232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#195
Cotter Pin
250400071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#230
RH Half Shaft Ass'y
705501897
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#230a
CV Joint
705401344
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#230b
Plunging Joint
715900304
|
$121.49 | ||
|
Available to order. Add to View Price |
|||
|
#230c
Circlip
705501781
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#230d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#230da
Oetiker Clamp
715900282
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#230db
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#230e
Boot Kit, Differential Side
705401346
|
$42.49 | ||
|
Unavailable |
|||
|
#230ea
Oetiker Clamp, Large
715900284
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#230eb
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
LH Half Shaft Ass'y
705501898
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#240a
CV Joint
705401344
|
$259.49 | ||
|
Unavailable |
|||
|
#240b
Plunging Joint
715900304
|
$121.49 | ||
|
Unavailable |
|||
|
#240c
Circlip
705501781
|
$6.50 | ||
|
Unavailable |
|||
|
#240d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#240da
Oetiker Clamp
715900282
|
$5.39 | ||
|
Unavailable |
|||
|
#240db
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Unavailable |
|||
|
#240e
Boot Kit, Differential Side
705401346
|
$42.49 | ||
|
Unavailable |
|||
|
#240ea
Oetiker Clamp, Large
715900284
|
$5.39 | ||
|
Unavailable |
|||
|
#240eb
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#250
Hex. Flange Screw M10 X 135
250001041
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Ball Bearing
293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#320
Conical Spring Washer M18
250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#330a
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
