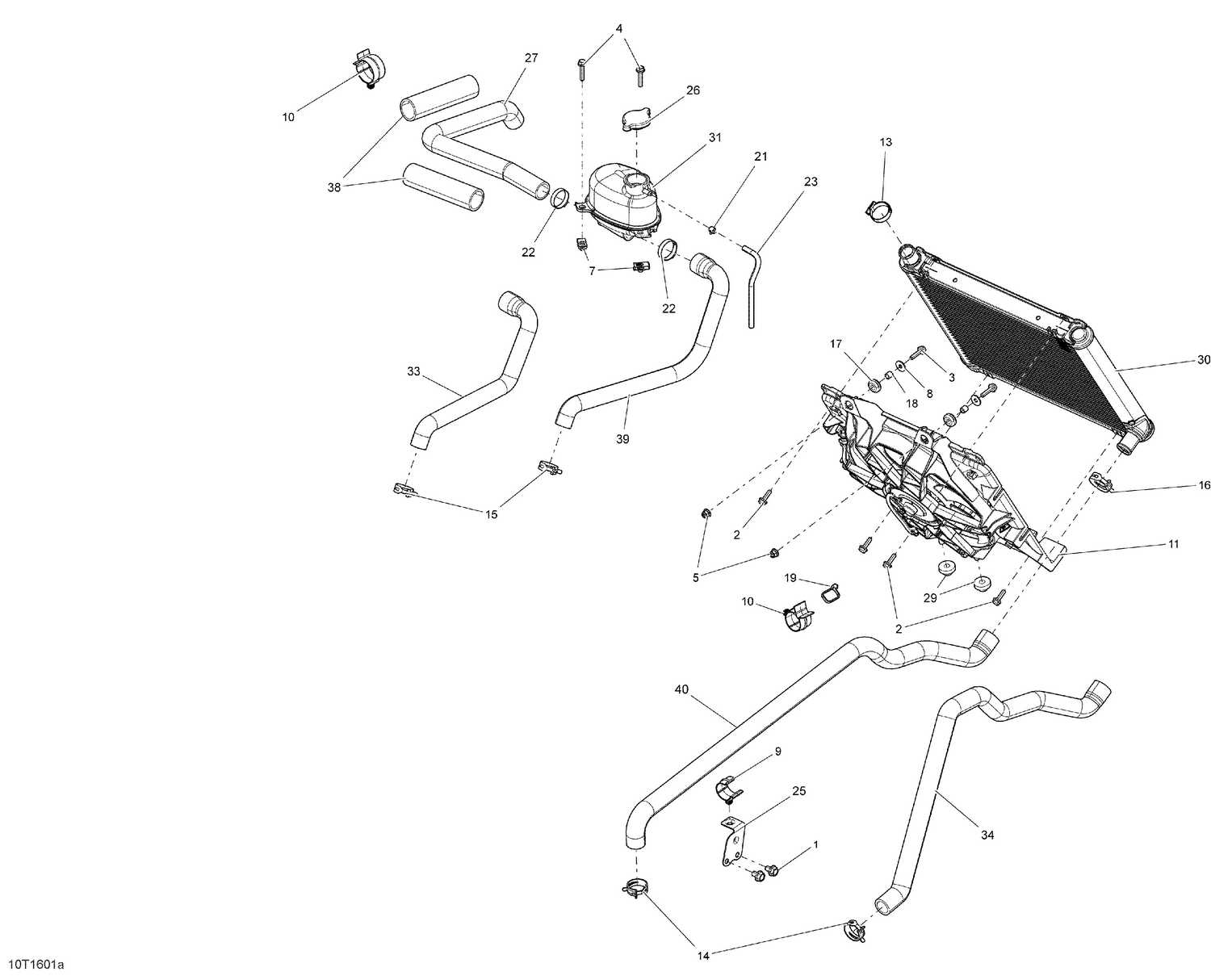

01- Cooling System - Except Xmr Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 25
207662534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Retainer
275500526
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
Retainer
275500590
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Fan Ass'y
709200563
|
$249.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Norma Gear Clamp
293650098
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Norma Spring Clamp
293650108
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Norma Spring Clamp
293650109
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
Norma Spring Clamp
293650166
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Bushing
293900105
|
$7.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Spring Clamp
414554800
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
Gear Clamp
509000162
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hose Support
709200206
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
Radiator Pressure Cap
709200207
|
$25.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Radiator Inlet Hose
709200278
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Grommet
709200285
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
Radiator
709200286
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Coolant Tank
709200297
|
$55.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Engine Outlet Hose
709200310
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Radiator Outlet Hose
709200391
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Tubing 35 MM 1000MM Long
219704428
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
Coolant Hose
709200471
Superseded by 709200893
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Coolant Hose
709200525
Superseded by 709200901
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
