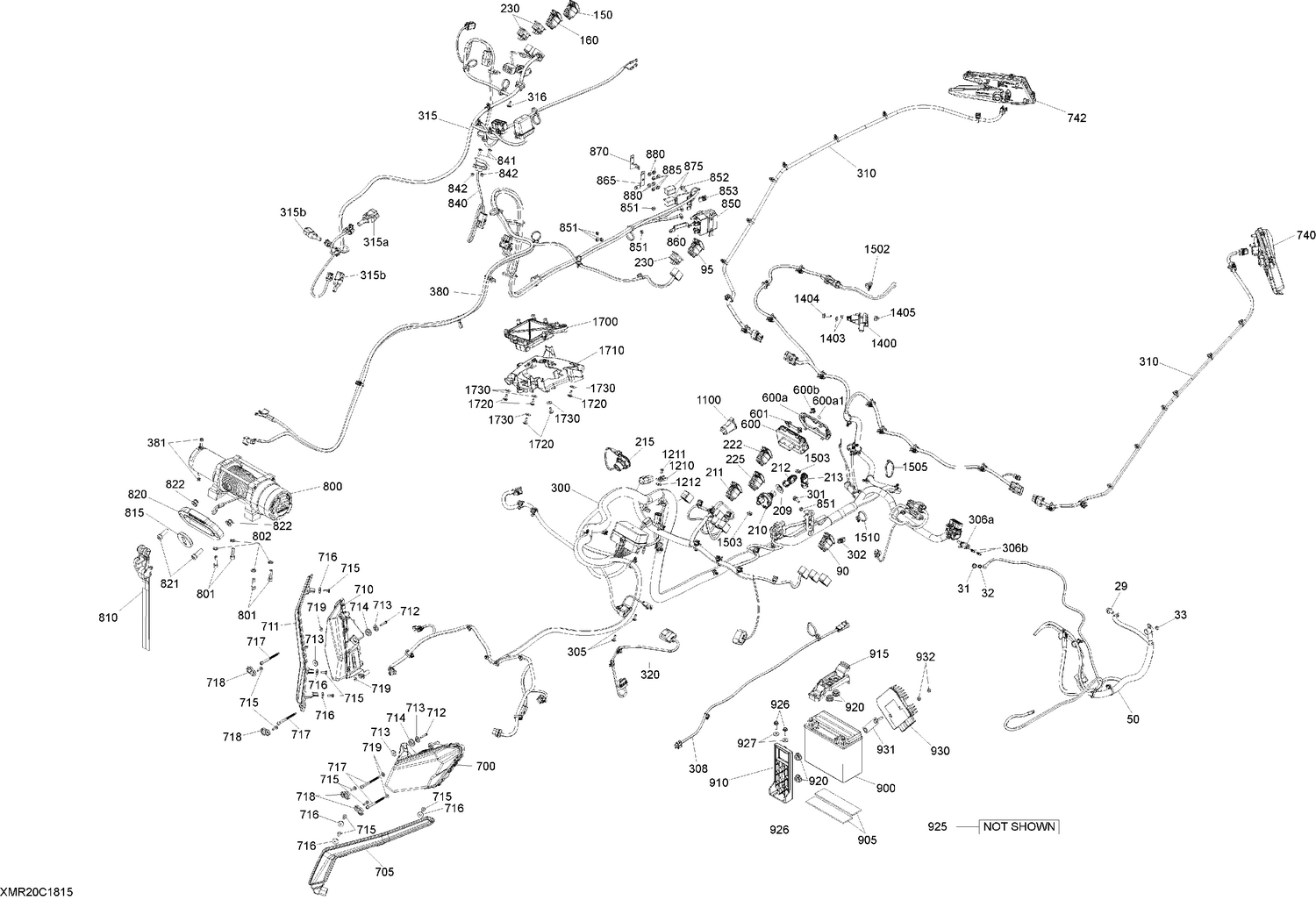

10- Electrical Xrc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#29
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#50
Starter Cable
710004863
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Light Switch
710004492
|
$47.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
Switch Winch
710002052
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Differential Switch
710006040
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Differential Mode Switch
710005925
Superseded by 710006558
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#209
Safety Nut (DESS Switch)
278002963
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#210
Terminal Dess One-Wire
515178225
Superseded by 515178840
|
$83.49 | ||
|
Available to order. Add to View Price |
|||
|
#211
Switch DPS
710001781
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#212
Grey Key RFID
710004964
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#213
Green Key RFID
710005232
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#215
Start-Stop Button
710005213
|
$60.49 | ||
|
Available to order. Add to View Price |
|||
|
#222
Driving Mode Switch
710005909
|
$36.49 | ||
|
Available to order. Add to View Price |
|||
|
#225
Switch, Over ride
710002053
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Plug Carling
710001999
Superseded by 710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#300
Harness-Ass'y
710005788
|
$809.99 | ||
|
Available to order. Add to View Price |
|||
|
#300a
FUSES DECAL - Call your local BRP dealership
710005971
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#301
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#302
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#305
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#306
Connector Plug
710005956
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#306a
Male Connector, 2 Circuits
278000220
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#306b
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#310
Rear Harness
710004776
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#315
Diff Harness
710005778
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#315a
Housing Cap
710005774
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#315b
Housing Cap
710005775
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#316
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#317
WIRING HARNESS DIFF - Call your local BRP dealership
710006086
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Cable Throttle Pedal
710005291
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#380
Winch Cable
710005815
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#381
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#600
Speedometer
710005717
Superseded by 710006334
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#600a
Lens
415129349
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#601
Speedometer Button
415129355
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#700
LH Front Auxiliary LED Light
710004658
Superseded by 710008811
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#705
LH Signature Beam
710004994
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#710
RH Front Auxiliary LED Light
710004659
Superseded by 710008812
|
$449.99 | ||
|
Unavailable |
|||
|
#711
RH Signature Beam
710004995
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#712
Hex. Flange Screw K50 X 2.24 X 25
241152540
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#713
Shoulder Bushing
710004749
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#714
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#715
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#716
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#717
Ajustment Screw
710005837
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#718
Adjustment Guide
710005097
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#719
O-Ring
293300192
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#740
LH Tail Light
710004743
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#742
RH Tail Light
710004744
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800
Electric Winch
710005659
Superseded by 710006990
|
$763.49 | ||
|
Available to order. Add to View Price |
|||
|
#801
Socket Head Screw M8 X 25
205082544
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#802
Lock Washer 8 mm
234181401
|
$0.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#810
Winch Hook Kit
715003523
Superseded by 705014949
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#815
Stopper
710005142
Superseded by 710007028
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#820
Winch Rope Guide Kit
715004449
Superseded by 715006426
|
$61.49 | ||
|
Available to order. Add to View Price |
|||
|
#821
Socket Screw M10 x 30
205003044
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#822
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#840
Remote Control & Connector_Winch Kit
710004823
Superseded by 715006504
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#841
Torx Screw M5 X 20
250000724
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#850
Solenoid
703500947
Superseded by 710006991
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#851
Brass Elastic Stop Nut M6
232561200
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#852
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#853
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#860
Power Bar
710004772
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#865
Power Bar
710004872
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#870
Power Bar
710004873
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#875
Circuit Breaker 50 Amp
703500948
Superseded by 710007039
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#880
Hex. Flange Nut M5
250100071
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#885
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#900
Battery YUASA YTX20L
410301203
|
$149.95 | ||
|
Unavailable |
|||
|
#900a
Battery Bolt Kit
250000282
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#905
Rubber Pad
293830126
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#910
Fixation Plate
710004788
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#915
Fixation Plate
710004789
|
$9.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#920
Rubber Stopper
705003666
Superseded by 705014429
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#926
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#927
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#930
Voltage Regulator
710005568
Superseded by 710005842
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#931
Voltage Regulator Support
710005782
Superseded by 710009511
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#932
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Unavailable |
|||
|
#1100
12V Power Outlet
710005374
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1210
Clip
270000141
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#1212
Washer
391301600
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1400
Starter Relay
278003012
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1403
Brass Elastic Stop Nut M6
232561200
|
$4.19 | ||
|
Unavailable |
|||
|
#1404
Hex. Flange Screw S.Grip M6 X 20
207562054
|
$2.19 | ||
|
Unavailable |
|||
|
#1405
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#1502
2-Pieces Fixing Tie Rap for Edges
293750058
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#1700
Front Drive Module
710004663
Superseded by 710006479
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#1710
FDM Support
710005807
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#1720
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Unavailable |
|||
|
#1730
Washer M5
250200025
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
