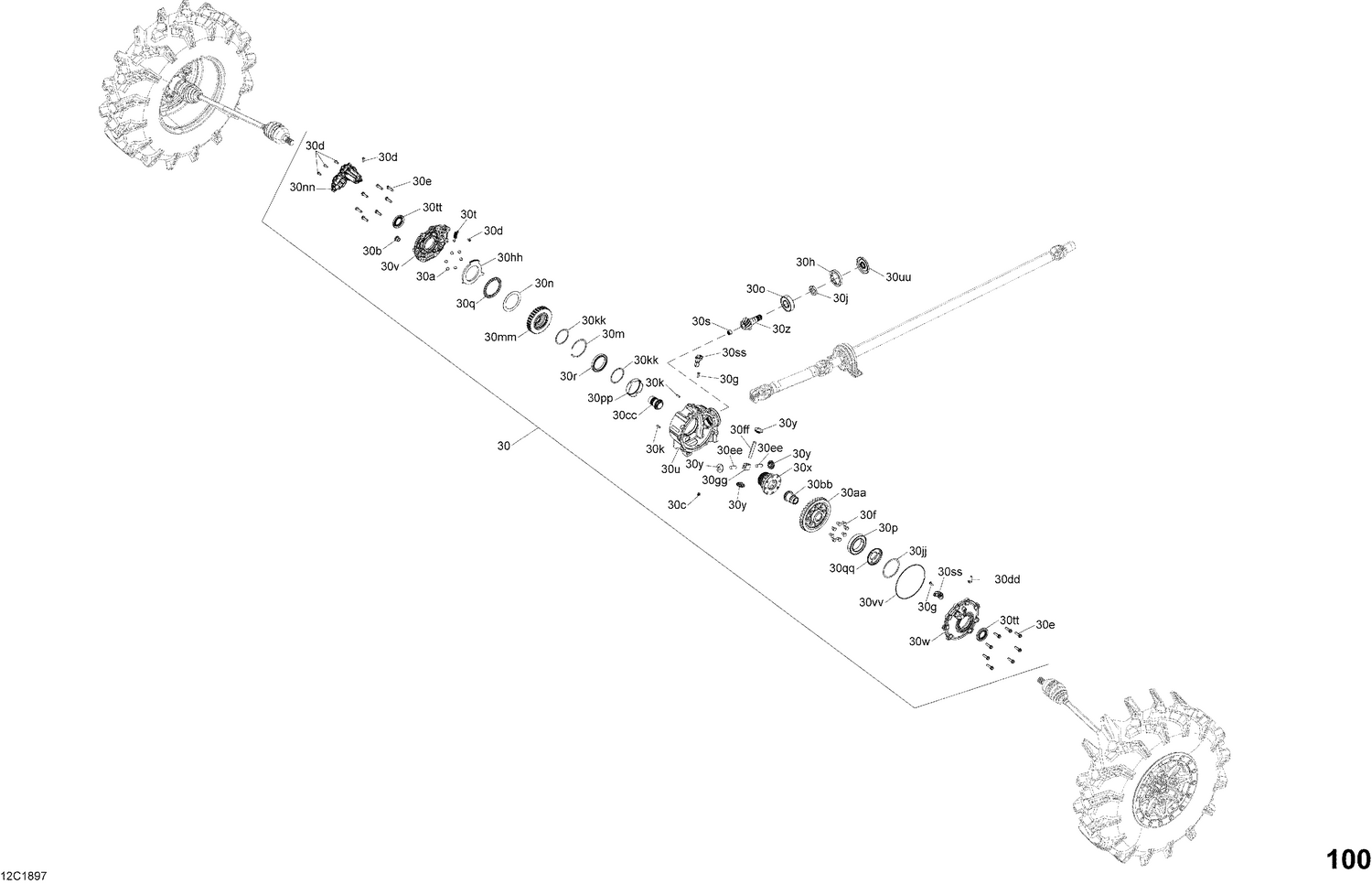

07- Front Drive - Differential Parts - Maverick X3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#30
Front Differential Ass'y
705401631
Superseded by 705402767
|
$1,619.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Ball
715900564
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#30aa
Gear 36T
715900547
Superseded by 715900676
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fill Level Plug
705501889
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#30bb
Gear 14T
715900546
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30c
Fill Level Plug M10
715900563
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#30cc
Gear 14T
715900545
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30d
Torx Screw M6 X 16
715900562
Superseded by 705402845
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#30dd
Vent Valve
715900544
Superseded by 705401935
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30e
Bolt
705501886
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#30ee
Pinion Pin 0.5 X 1.250
715900543
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30f
Hex Screw 3/8 X 0.500
715900561
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#30ff
Pinion Pin 0.5 X 3.000
715900542
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#30g
Torx Screw M6 X 12
715900560
|
|||
|
Unavailable |
|||
|
#30gg
Coupler, Pin
715900541
|
$65.49 | ||
|
Available to order. Add to View Price |
|||
|
#30h
Nut M75 X 1.5
705401819
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#30hh
Ramp Ball
715900540
|
$77.49 | ||
|
Available to order. Add to View Price |
|||
|
#30j
Nut M27 X 1.5
705401820
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30jj
Shim 74.50 X 66.00
715900539
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#30k
Dowel Pin
715900559
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#30kk
Shim 3.735 X 3.300
715900538
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#30m
Retainin Ring
715900558
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30mm
Clutch Pack
715900537
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#30n
Thrust Washer
715900557
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#30nn
Actuator Ass'y
715900536
Superseded by 715900640
|
$509.99 | ||
|
Available to order. Add to View Price |
|||
|
#30o
Ball Bearing
705401821
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30p
Ball Bearing 60 X 95 X 18
715900556
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#30pp
Cross Pin Retainer
715900535
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30q
Needle Bearing
715900555
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30qq
Tone Ring 30T
715900534
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30r
Ball Bearing 65 X 85 X 10
715900554
|
$94.49 | ||
|
Available to order. Add to View Price |
|||
|
#30s
Ball Bearing
705401607
Superseded by 705402848
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30ss
Speed Sensor
715900532
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#30t
Spring
715900553
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#30tt
Oil Seal
715900531
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#30u
Housing
715900552
Superseded by 715900674
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#30uu
Oil Seal, Triple Lip 25 X 79 X 8
705401827
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30v
RH Cover
715900551
Superseded by 715900632
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#30vv
O-Ring
715900530
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#30w
LH Cover
715900550
Superseded by 715900631
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#30x
Housing
715900549
Superseded by 715900617
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#30y
Pinion 10T
715900548
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#30z
Pinion 10 th.
705401933
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
