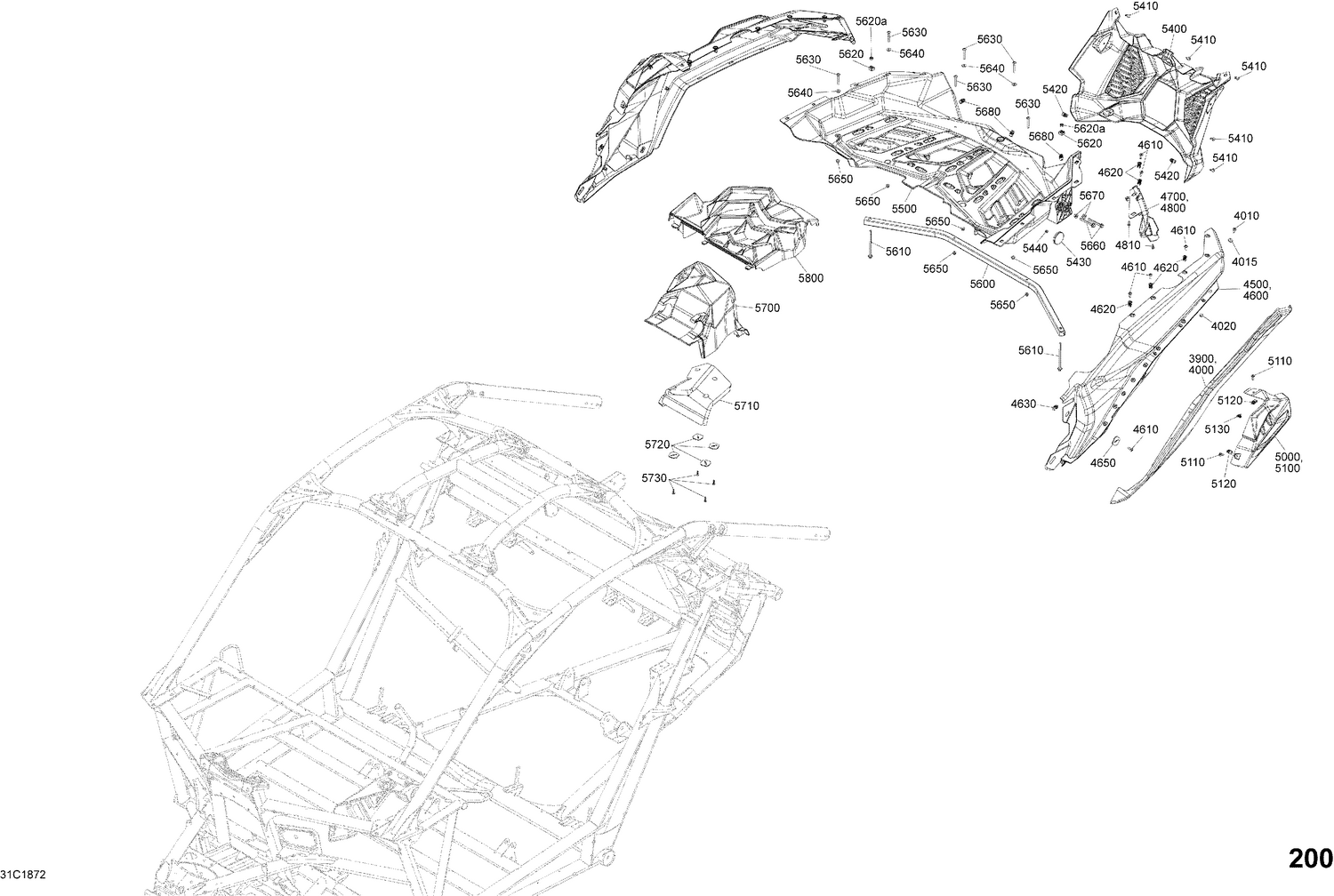

09- Body Parts - Liquid Gold - Package Xrs Dps - Rear Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3900
LH Rear Fender Deflector
705009511
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4000
RH Rear Fender Deflector
705009512
Superseded by 705017543
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4010
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4015
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4020
Hex. Elastic Flange Nut M6
233161464
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#4500
Gold, LH Rear Fender
705011123
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#4600
Gold, RH Rear Fender
705011124
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#4610
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#4620
Insert
705010872
Superseded by 705016606
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4630
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4650
Support Plate
705003841
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4700
LH Rear Lateral Cover
705010686
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4800
RH Rear Lateral Cover
705010687
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4810
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#5000
LH Rear Cage Trim
705010335
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5100
RH Rear Cage Trim
705010336
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5110
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5120
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5130
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5400
Rear Fairing
705010001
Superseded by 705017558
|
$209.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5410
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#5420
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5430
Red Reflector
705011221
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5440
Elastic Flange Nut M5
233251494
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5500
Luggage Rack Kit
715004063
Superseded by 715006590
|
$455.49 | ||
|
Available to order. Add to View Price |
|||
|
#5600
Luggage rack Tube
705012589
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5610
Hex. Flange Screw M8 X 130
230683034
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#5620>5620a
Elastic Nut Housing M8
269501943
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#5620a
Hex. Elastic Nut M8 Brass
232581200
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5630
Torx Truss M6 X 50
250000868
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5640
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#5650
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#5660
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#5670
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#5680
Panel Nut M6 X 1.0
250000957
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#5700
Air Inlet Cover
705012700
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#5710
Foam Air Intake Cover
705011293
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5720
Support Plate
705003841
|
$0.99 | ||
|
Unavailable |
|||
|
#5730
Torx Screw Truss Head K50X20 T20
250000760
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5800
Rear Cover
705010286
Superseded by 705013757
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
