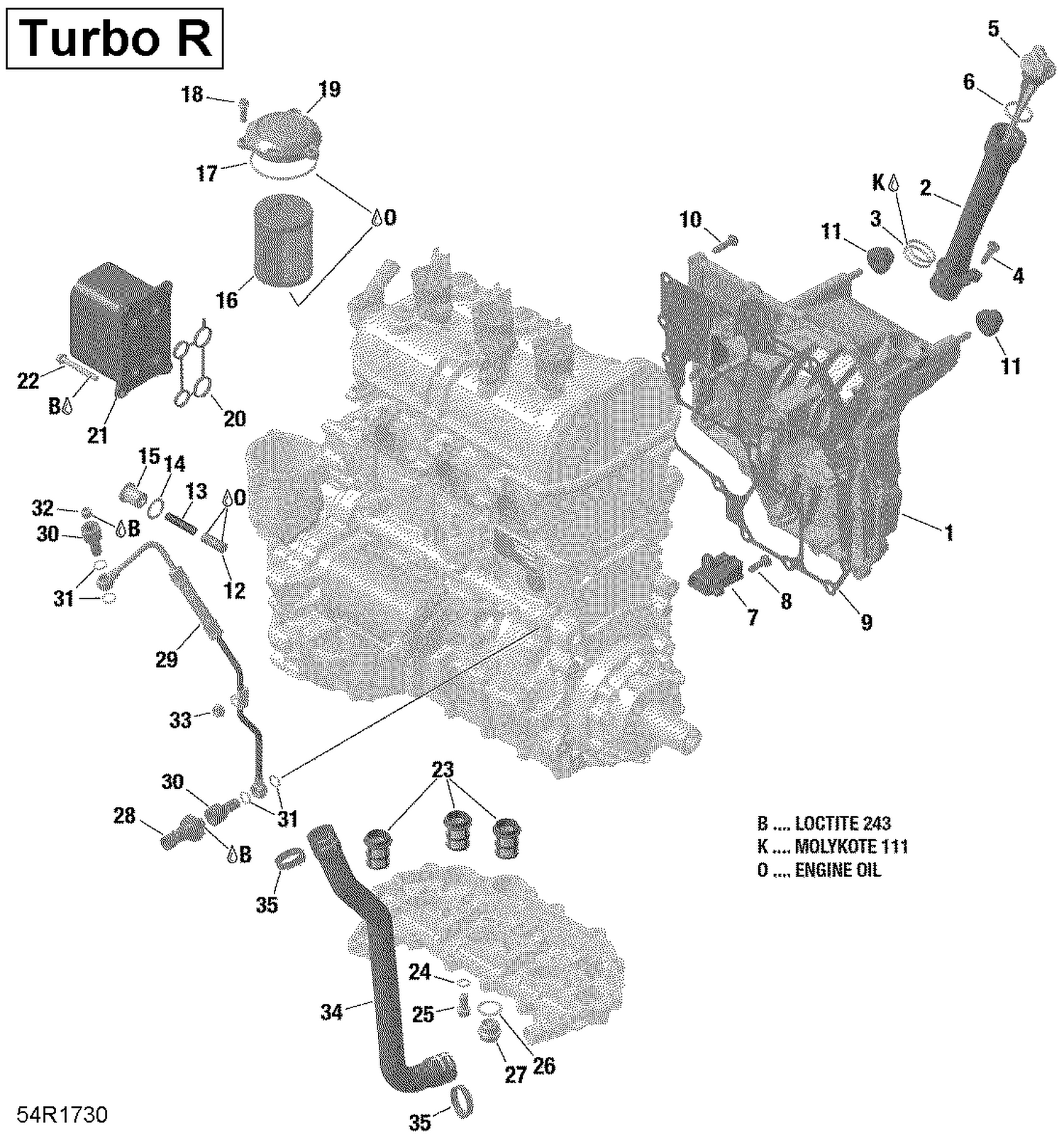

01- Engine Lubrication Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Oil Sump Cover
420656705
Superseded by 420656708
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Oil Filler Tube
420656901
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-Ring
420430440
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Torx Flange Screw M6 X 20
420441383
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
Oil Dipstick
420856668
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-Ring
420631640
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Oil Suction Pipe
420456260
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
Torx Flange Screw M6 X 20
420441383
|
$5.40 | ||
|
Unavailable |
|||
|
#9
Oil Sump Cover Gasket
420431845
Superseded by 420431848
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Torx Flange Screw M6 X 25
420841548
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rubber Grommet
420860150
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Pressure Regulating Piston
420256518
Superseded by 420256591
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Spring
420239445
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Oil Pressure Regulator Gasket Ring
420430623
Superseded by 420430624
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
Plug Screw
420441373
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
Oil Filter
420956123
|
$13.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-Ring
420650500
Superseded by 420230923
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
Oil Filter cover
420612132
Superseded by 420612135
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Gasket
420431870
Superseded by 420431871
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Oil Water Heat Exchanger
420656689
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
Oil Sieve
420656680
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
Sealing Ring
420950141
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Torx Flange Screw M8 X 16
420440852
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Crush Washer
420552280
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Drain Plug M18 X 1.5
420840277
Superseded by 420840278
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Oil Pressure Switch
420256915
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Pressure Oil Line
420456450
|
$169.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Spacer
420947580
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#31
Oil Seal
420230154
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Plug Screw M10 X 1
420641323
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hex Nut M6-10
420842890
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
Molded Hose
420201740
Superseded by 420201743
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Clamp
420251578
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
