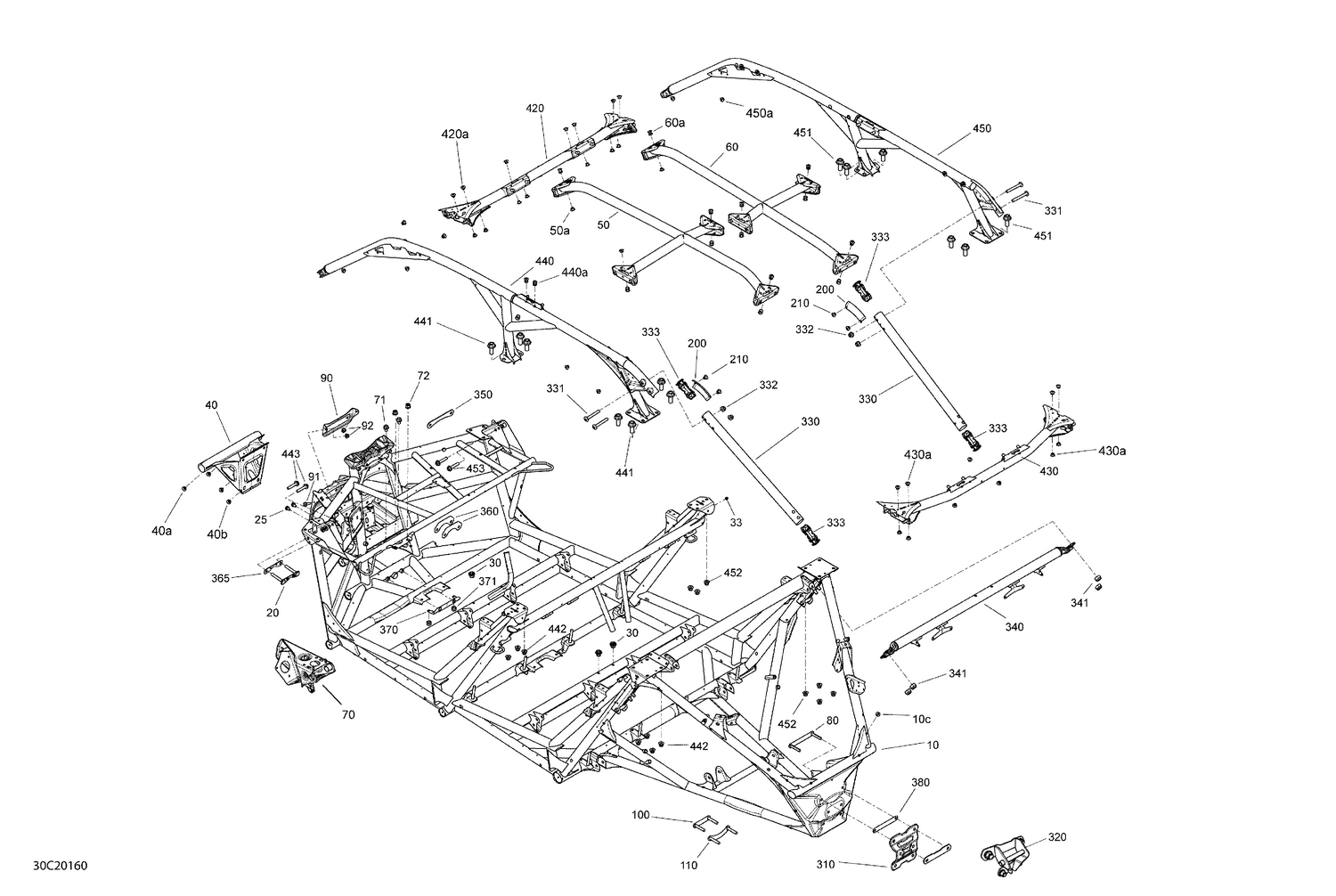

09- Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Black, Frame Ass'y
715006653
Superseded by 715008513
|
$3,359.99 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hyper Silver, Chassis Ass'y
715006654
Superseded by 715009840
|
$3,359.99 | ||
|
Unavailable |
|||
|
#10c
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#20
Front Plate
705207424
Superseded by 705211561
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#33
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
Unavailable |
|||
|
#40
Deep Black, Front Bumper
705205746
Superseded by 705210400
|
$103.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#40b
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#40
Hyper Silver, Front Bumper
705207305
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#40a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#40b
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#50
LH Added Cage
705206251
|
$91.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#50
Hyper Silver, LH Added Cage
705207366
|
$91.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#60
Deep Black, RH Reinforcement Cage
705206410
Superseded by 705210079
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#60a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#60
Hyper Silver, RH Added Cage
705207367
|
$91.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#70
DPS Support
705206924
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Rear Upper Plate
705206852
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#90
Stifner Plate
705206877
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
Hex. Flange Screw M6 X 16
207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#92
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#100
Rear Central Plate
705206853
Superseded by 705211558
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Rear Plate
705206854
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Black, LH Link Plate
705205926
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#200
Link Plate
705207308
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Rivet 3/16"
293150102
|
$0.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Rear Plate
705205750
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Black, Rear Attachement Hook
715004450
|
$85.99 | ||
|
Unavailable |
|||
|
#330
Deep Black, Rear Pillar
705205751
Superseded by 705210066
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#330
Hyper Silver, Rear Mount
705207382
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#331
Torx Truss M8 X 65
250000901
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#332
Elastic Flange Nut M8
250100025
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#333
Sleeve
705205634
Superseded by 705210648
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#340
Safety Belt Anchorage
705208518
Superseded by 705210001
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#341
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#350
Connecting Plate
705207425
Superseded by 705211552
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#360
Retaining Plate
705205295
Superseded by 705210249
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#365
Front Plate
705207438
Superseded by 705211553
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#370
Support
706203122
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#371
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#380
Front Upper Plate
705206069
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#420
Deep Black, Front Cross Member
705208578
Superseded by 705210068
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#420a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#420
Hyper Silver, Front Cross Member
705208581
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#420a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#430
Deep Black, Rear Cross Member
705208585
Superseded by 705210070
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#430a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#430
Hyper Silver, Rear Cross Member
705208590
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#430a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#440
Black, LH Cage Ass'y
715006634
Superseded by 715008498
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#440a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#440
Hyper Silver, LH Cage
715006635
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#440a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#441
Hex Flange Nut m12
233121466
|
$0.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#442
Hex. Flange Screw M12 X 30, Scotch Grip
207523056
|
$6.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#443
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#450
Black, RH Cage Ass'y
715006641
Superseded by 715008504
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#450a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#450
Hyper Silver, RH Front Cage Ass'y
715006642
Superseded by 715008951
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#450a
Pop Rivet 3/16"
390402200
|
$0.35 | ||
|
Unavailable |
|||
|
#451
Hex Flange Nut m12
233121466
|
$0.84 | ||
|
Unavailable |
|||
|
#452
Hex. Flange Screw M12 X 30, Scotch Grip
207523056
|
$6.29 | ||
|
Unavailable |
|||
|
#453
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
Unavailable |
|||
