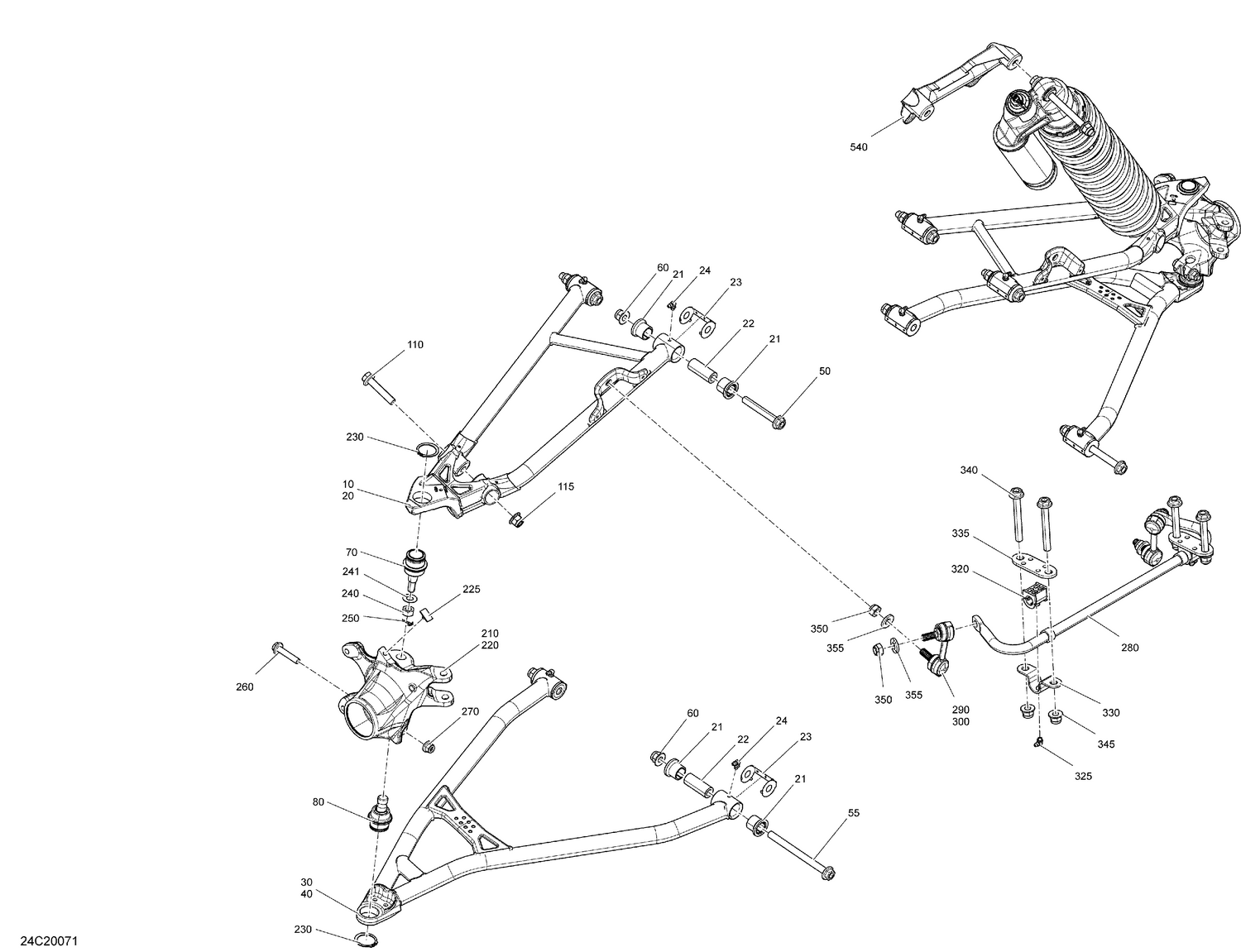

07- Front Suspension - Xds Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Manta Green, LH Upper Suspension Arm
706203930
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Manta Green, RH Upper Suspension Arm
706203931
|
$201.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Suspension Arm Bushing
706201659
Superseded by 706204409
|
$9.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Interior Bushing
706202257
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Wear Plate
706202300
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Grease Fitting 90°
293550056
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
Deep Black, LH Front Suspension Arm Ass'y With Balljoint
706202919
Superseded by 715010612
|
$269.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Deep Black, RH Front Suspension Arm Ass'y With Balljoint
706202920
Superseded by 715010611
|
$269.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Flange Screw M12 X 85
250000859
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
Flange Screw M12 X 145
250000861
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Ball Joint
706203084
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Ball Joint
706202045
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#115
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#210
LH Front Knuckle
706202759
Superseded by 706204785
|
$201.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
RH Front Knuckle
706202760
Superseded by 706204786
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#225
Wear Plate
706202502
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#230
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#241
Hardened Washer
250200086
Superseded by 706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#260
Hex. Flange Screw M10 X 50
207605044
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#270
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Stabilizer Bar Ass'y
703501043
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
LH Stabilizer Bar Link
706203611
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#300
RH Stabilizer Bar Link
706203612
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#320
Bushing_Stabilizer Bar
706202849
Superseded by 706204565
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#325
Grease Fitting 90°
293550056
|
$1.15 | ||
|
Unavailable |
|||
|
#330
Clamp
706202460
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#335
Support Plate
706202551
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#340
Hex. Flange Screw M12 X 95
250000876
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#345
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#350
Elastic Stop Nut M12
232521416
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#355
Conical Spring Washer M12
250200167
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#540
Black, Link
706202708
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
