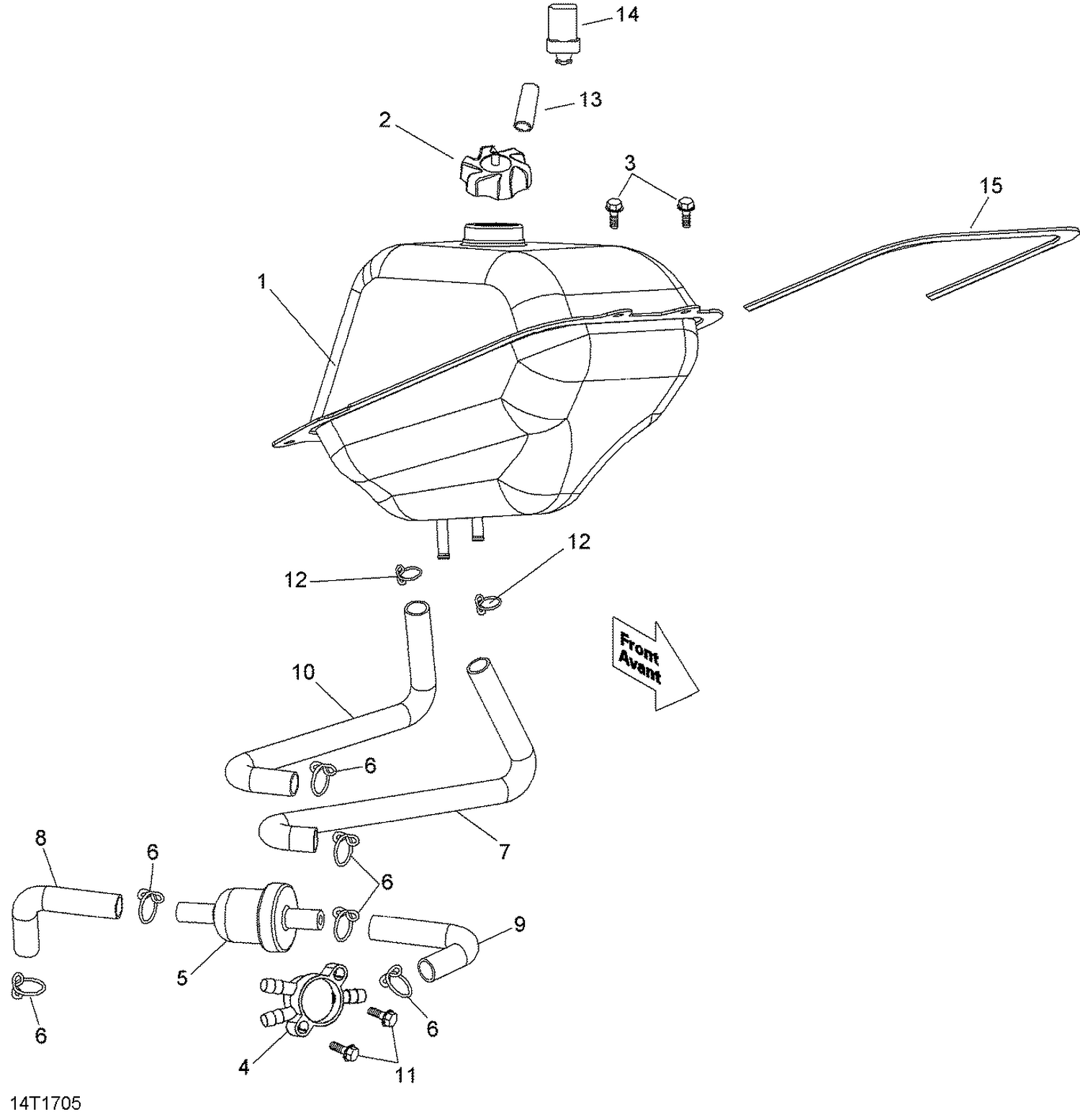

02- Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fuel Tank
V17500DGF070LL
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Fuel Tank Cap
V17620DGF080LL
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Fuel Valve
V16950DGF010LL
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fuel Filter
V16910MAA000
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose Clamp
V17209DGF020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fuel Tube
V17684DGF030
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL TUBE A - Call your local BRP dealership
V17682DGF030
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Fuel Tube
V17683DGF010
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Fuel Tube
V17685DGF020
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Flange Bolt
V935000502201
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hose Clamp
V17210DGF010
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fuel Vent Tube
V17686DGF040LL
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Vent Pipe
V43351DGF010LL
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WATERPROOF STRIP - Call your local BRP dealership
V81149MEM010
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
