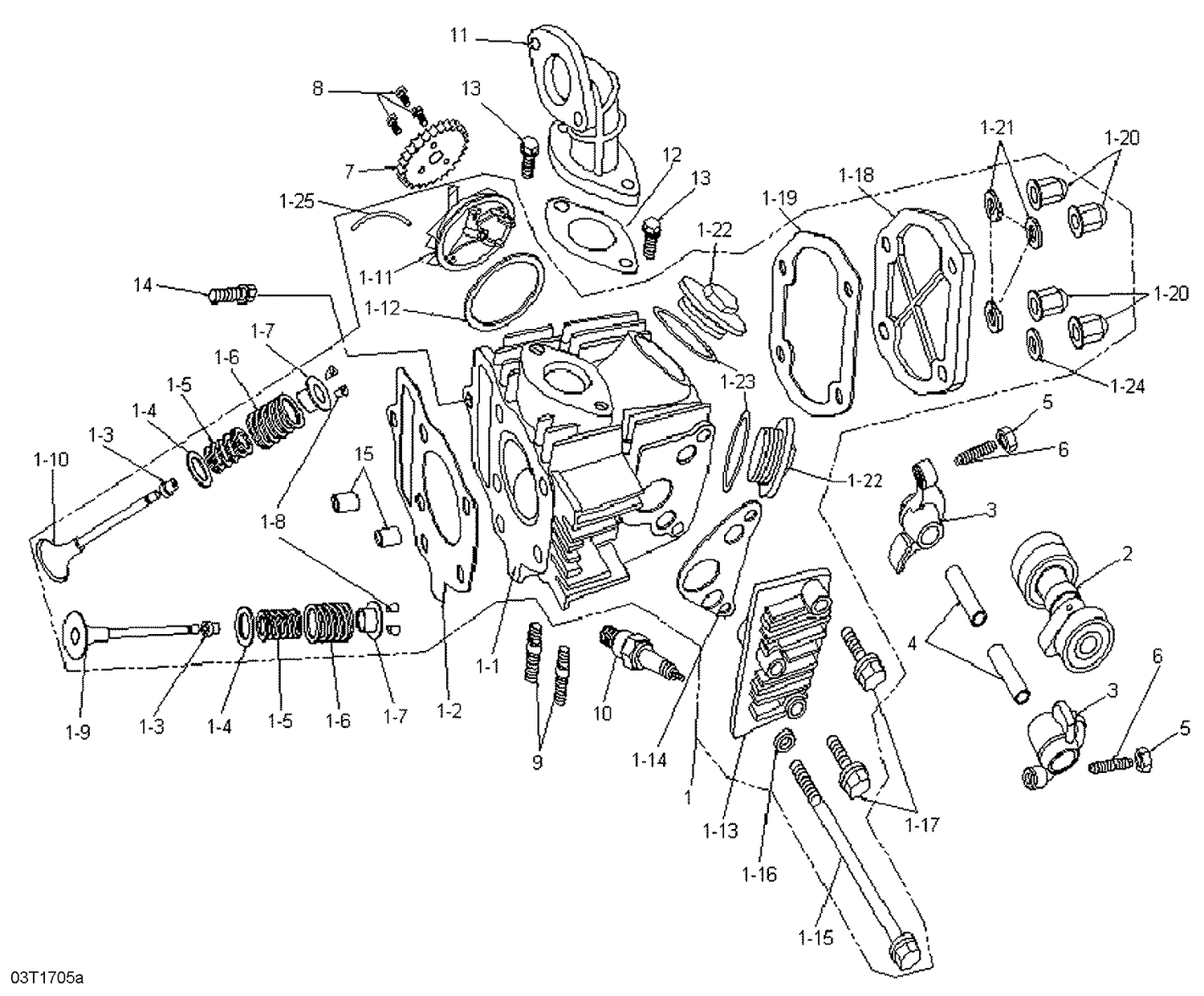

01- Cylinder Head And Intake Manifold Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
Cylinder Head DS
V12201CJF020LL
|
$223.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
Cylinder Head Gasket
V12251CJF020
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
Valve Stem Seal
V12209GYK000
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#1-4
Valve Spring Seat
V14775GYK000
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-5
Spring Valve Outer
V14751GYK000
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#1-6
Spring Valve Inner
V14761GYK000
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#1-7
Retainer Valve Spring
V14771GYK000
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-8
Cotter
V14781GYK000
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-9
Intake Valve
V14711CJF000
Superseded by V14711CJF010
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-10
Exaust Valve
V14721CJF000
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-11
LH Cover Cylinder Head
V12341CJF030LL
|
$56.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-12
Cylinder Head Cover Gasket
V12395CJF000
Superseded by V12395CJF010
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#1-13
RH Cover Cylinder Head
V12331CJF010LL
|
$56.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-14
Cylinder Head Cover Gasket Rh.
V12394CJF000
Superseded by V12394CJF010
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#1-15
Hexagonal Flange Bolt
V9600006110
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#1-16
Flat Washer
V941040614016
Superseded by V941050614016
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#1-17
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1-18
Valve Cover
V12301CJF000
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#1-19
Gasket
V12391CJF010
Superseded by V12391CJF020
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#1-20
Cap Nut
V9030406000010LL
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#1-21
Flat Washer
V941010612016
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#1-22
Adjusting Cap
V12361CJF030LL
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#1-23
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#1-24
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#1-25
Breather
V11224DGF000
Superseded by V11224DGF010
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Camshaft
V14400CJF010
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Rocker Arm
V14431CJF030
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rocker Arm Shaft
V14452CJF010
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Valve Gap Adjusting Nut
V90206GYK000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rocker Arm
V90012GYK000
Superseded by V14431CJF030
|
$55.99 | ||
|
Unavailable |
|||
|
#7
Timer Sprocket
V14321CJF030
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Screw M5 X 12
V920100501208
Superseded by 207151244
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
Stud Bolt
V9270006033LL
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
Spark Plug NGK CR7HSA
V9805656723
Superseded by 219703175
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Intake Manifold
V17111CJF07A
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Gasket
V16229GYK000
Superseded by V16229GYK010
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#14
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
DOWEL PIN - Call your local BRP dealership
A9430108120
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
