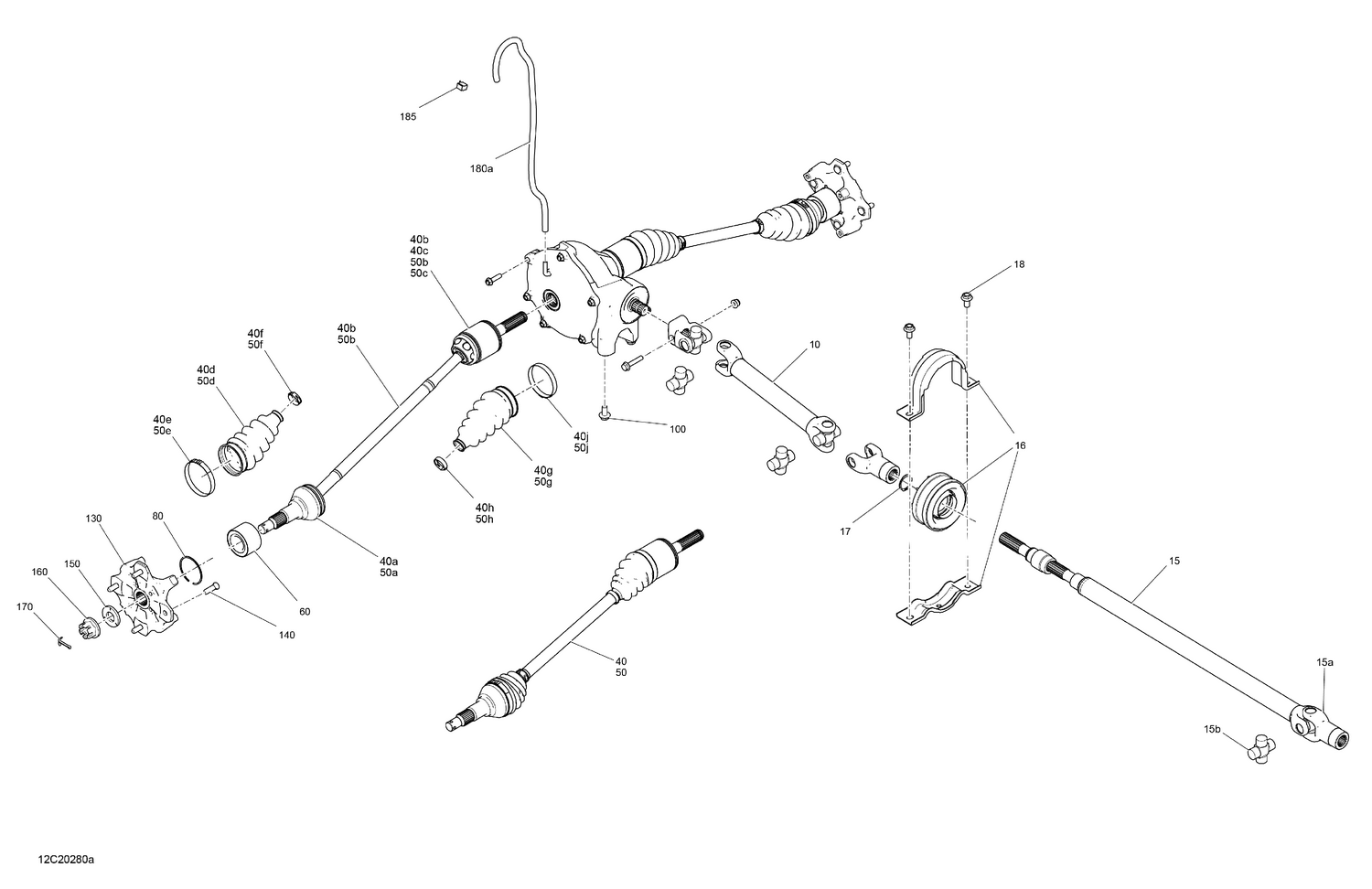

07- Front Drive - Common Parts - Cab Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Drive Axle Ass'y
705402496
Superseded by 705403286
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Drive Axle Ass'y
705402045
Superseded by 705403287
|
$328.49 | ||
|
Available to order. Add to View Price |
|||
|
#15a
Yoke
715900401
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15b
J-Joint Cross Kit
715900402
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing Ass'y
705401938
Superseded by 705403522
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Snap Ring
293370098
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#40
RH Half Shaft
705402449
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#40a
Exterior CV Joint
715900621
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40b
RH Plunging Joint
715900441
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip Joint
705401349
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#40e
Oetiker Clamp
715900282
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#40f
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#40g
Boot Kit, Différential Side
705401355
|
$42.49 | ||
|
Unavailable |
|||
|
#40h
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40j
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
LH Half Shaft
705402450
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#50a
Exterior CV Joint
715900621
|
$259.49 | ||
|
Unavailable |
|||
|
#50b
lEFT PLUNGING JOINT - Call your local BRP dealership
715900442
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#50c
Circlip Joint
705401349
|
$6.50 | ||
|
Unavailable |
|||
|
#50d
Boot Kit, Wheel Side
705401345
|
$42.49 | ||
|
Unavailable |
|||
|
#50e
Oetiker Clamp
715900282
|
$5.39 | ||
|
Unavailable |
|||
|
#50f
Oetiker Clamp, Small
715900283
|
$5.39 | ||
|
Unavailable |
|||
|
#50g
Boot Kit, Différential Side
705401355
|
$42.49 | ||
|
Unavailable |
|||
|
#50h
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#50j
Oetiker Clamp, Large
715900262
|
$10.99 | ||
|
Unavailable |
|||
|
#60
Ball Bearing
293350118
Superseded by 293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Unavailable |
|||
|
#130
Wheel Hub
705502338
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Wheel Stud M10 X 1.25
250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#150
Conical Spring Washer M20
250200170
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Castle Nut M20
250100193
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#170
Cotter Pin
250400084
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#180a
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#185
Clip
414227300
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
