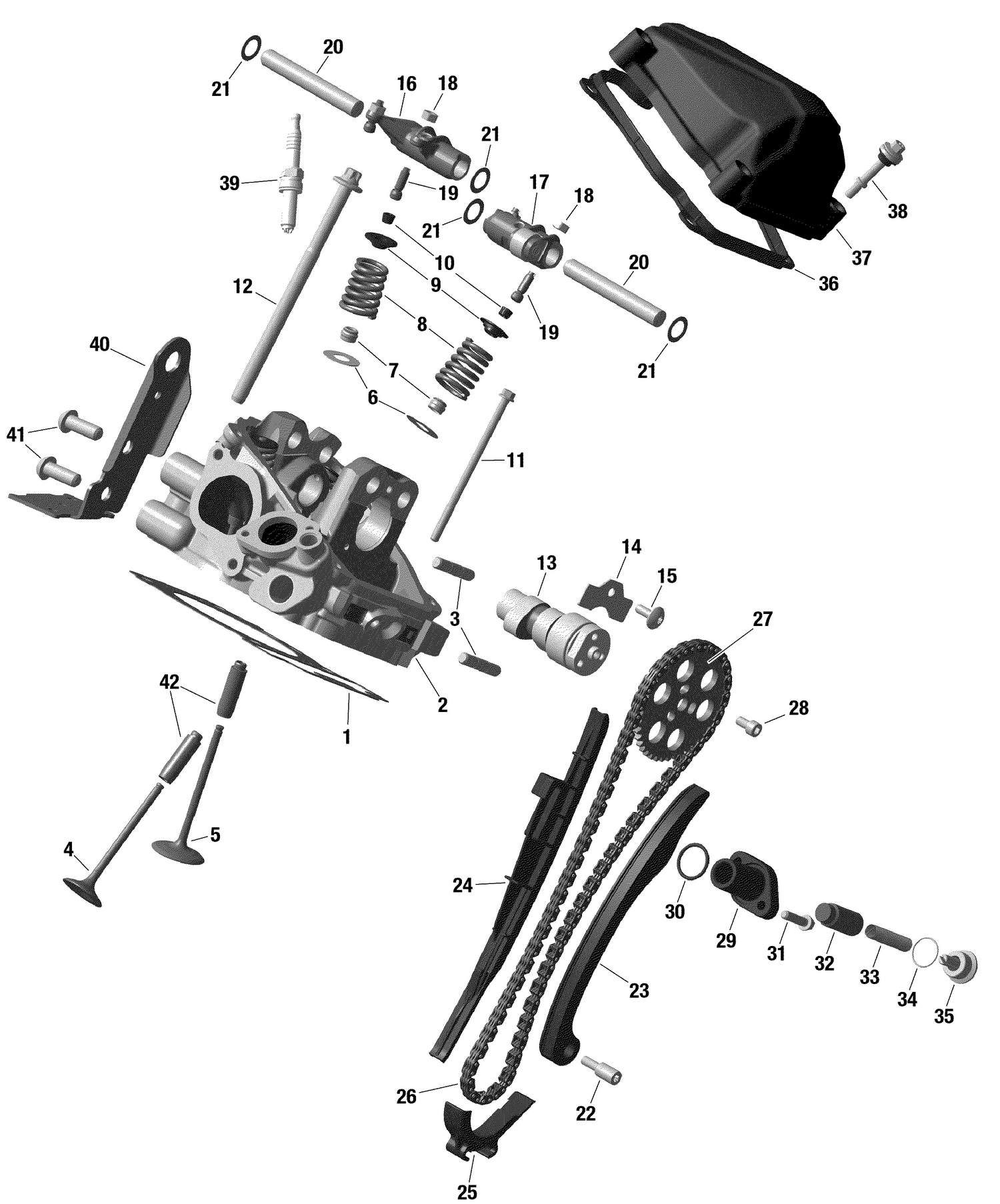

01- Engine - Cylinder Head, Rear - Hd10 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder Head Gasket
420630195
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#2>3
Cylinder Front Ass'y
420413106
|
$660.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Stud M8 x 26
420941014
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Exhaust Valve 31MM
420855029
Superseded by 420253172
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Intake Valve 36.5mm
420254367
Superseded by 420253162
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Thrust Washer
420627525
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Valve Stem Seal
420430420
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
Valve Spring
420239292
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
Valve Spring Retainer
420254137
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
Valve Cotter
420254602
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Flange Screw M6 X 105
420440612
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
Torx Screw M10 X 159
420441284
Superseded by 420441287
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
Camshaft
420637447
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Holding Strip
420627743
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Rocker Arm Inlet
420653065
Superseded by 420653067
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Rocker Arm Exhaust
420653075
|
$79.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex Nut M6
420242911
Superseded by 420242913
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
Adjustment Screw M6 X 0.75
420241337
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pin 12 X 87.5
420229714
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Shim
420944382
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bearing Screw M6
420240943
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
Chain Tension Guide
420436017
Superseded by 420436019
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Chain Guide
420236583
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Chain Guide
420236351
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Silent Chain
420297068
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Timing Gear 42T
420254438
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Allen Screw M6 X 12
420840032
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Chain Tensioner Housing
420236510
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-Ring
420430373
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Flange Screw M6 X 25
420440235
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
Chain Tensioner Plunger
420236521
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Spring
420238120
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-Ring
420250890
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
Plug Screw
420641150
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#36
Gasket
420630260
Superseded by 420630265
|
$8.79 | ||
|
Unavailable |
|||
|
#37
Valve Cover
420610393
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Hex Screw M6 X 30
420440568
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
Spark Plug NGK LMAR8C-9
715900244
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Transport Bracket
420951385
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#41
Rounded Head Screw M10 X 25
420641030
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
Valve Guide
420254377
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
