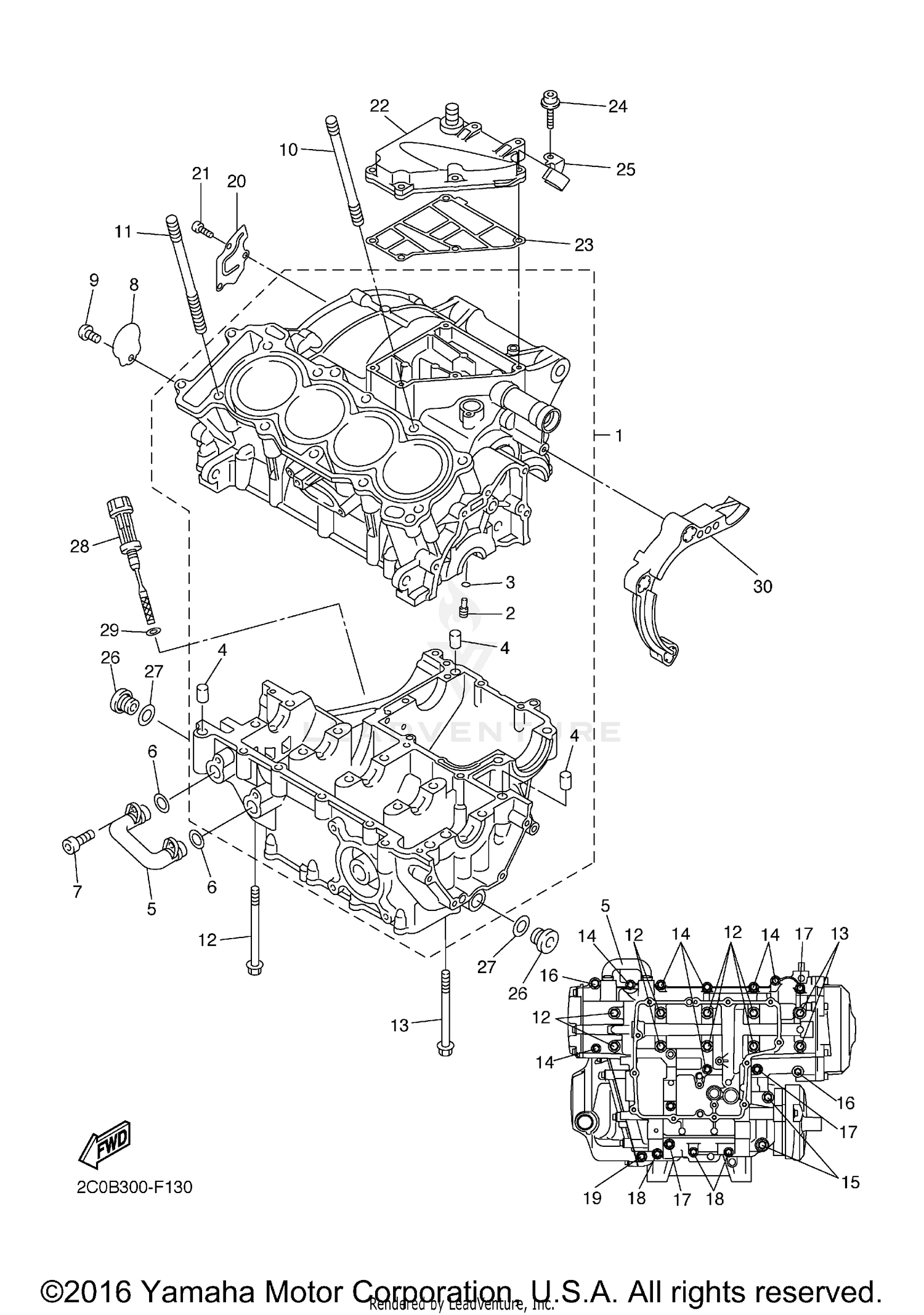

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2C0-15100-01-00
Superseded by 2C0-15100-08-00
|
$2,757.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE 3
5EB-15155-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-04092-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PIPE, OIL 2
5VX-13418-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-14579-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
2C0-15189-00-00
Superseded by 13S-15189-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-10025-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-10026-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-08084-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95812-06055-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95812-08065-00
Superseded by 95814-08065-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-06065-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95812-06045-00
Superseded by 95817-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06030-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, BREATHER
2C0-11165-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
COVER
2C0-15413-00-00
Superseded by 2C0-15413-01-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, CRANKCASE COVER 3
2C0-15462-00-00
Superseded by 2C0-15462-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06015-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP 2
2C0-24136-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
CLAMP 2
2C0-24136-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-16325-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PLUG, OIL LEVEL
2C0-15362-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-09165-00
Superseded by 93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
GUIDE, INLET
2C0-15377-00-00
Superseded by BN6-15377-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
