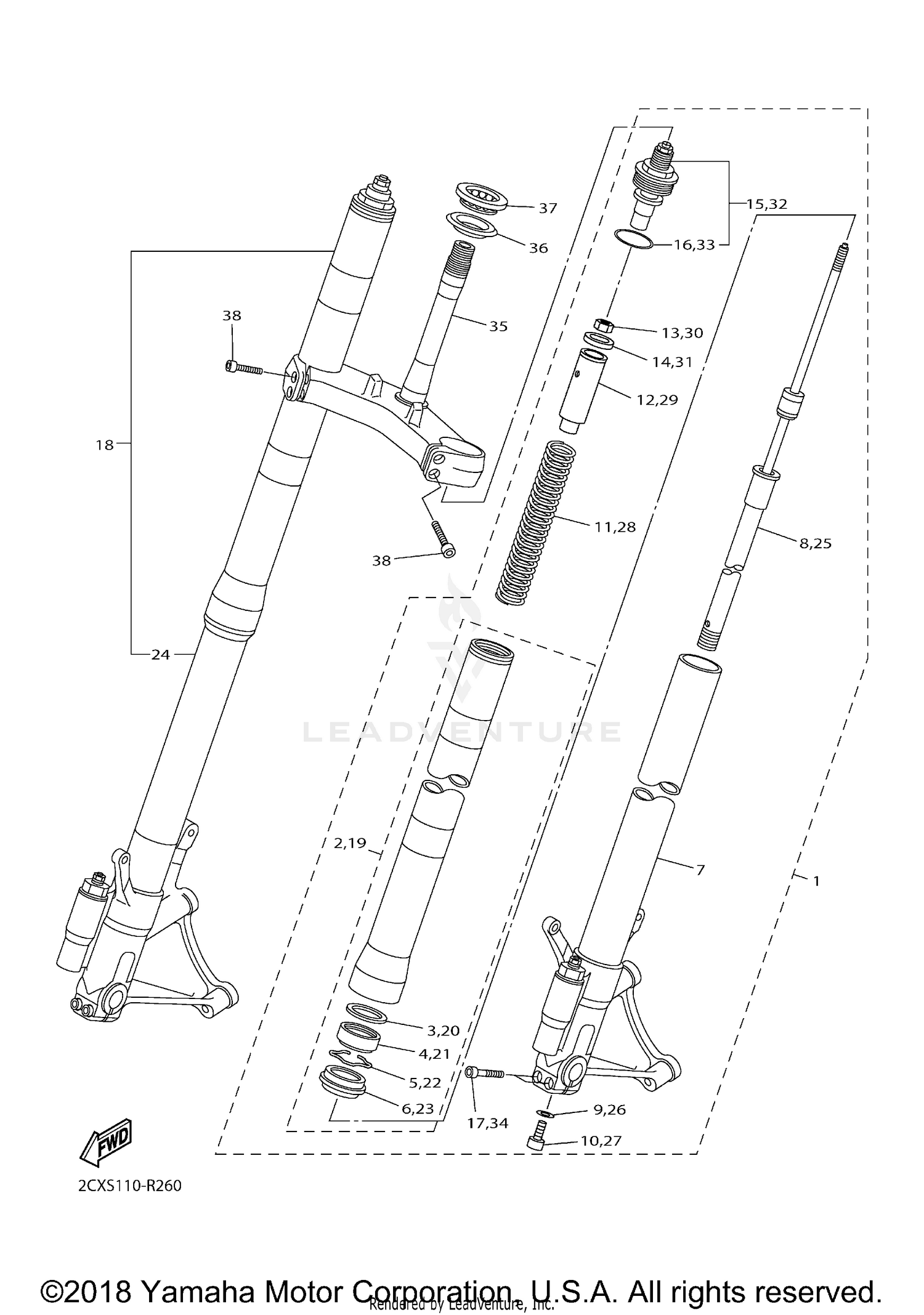

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2CX-23102-00-00
|
$956.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FRONT FORK ASSY (L.H)
2CX-23102-10-00
|
$879.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER
2CX-23136-10-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#
TUBE, OUTER
2CX-23136-00-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, OIL SEAL
5JJ-23146-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
4EB-23145-01-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RING, SNAP
26H-23156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
4EB-23144-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
INNER TUBE COMP. 1
2CX-23110-00-00
|
$468.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
2CX-23170-00-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
509-23158-L0-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FRONT FORK
2CX-23141-00-00
|
|||
|
Unavailable |
|||
|
#12
SPACER
5VY-23118-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
3LC-23357-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5VY-12277-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
5VY-23111-00-00
|
$327.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
3XJ-23147-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R.H)
2CX-23103-00-00
Superseded by 2CX-23103-01-00
|
$580.99 | ||
|
Unavailable |
|||
|
#
FRONT FORK ASSY (R.H)
2CX-23103-10-00
|
$977.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, OUTER
2CX-23136-00-00
|
$367.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER
2CX-23136-10-00
|
$367.99 | ||
|
Unavailable |
|||
|
#20
WASHER, OIL SEAL
5JJ-23146-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
4EB-23145-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#22
RING, SNAP
26H-23156-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
4EB-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#24
INNER TUBE COMP. 2
2CX-23120-00-00
|
$403.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CYLINDER COMP., FRONT FORK
2CX-23170-00-00
|
$212.99 | ||
|
Unavailable |
|||
|
#26
GASKET
509-23158-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
SPRING, FRONT FORK
2CX-23141-00-00
|
|||
|
Unavailable |
|||
|
#29
SPACER
5VY-23118-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#30
NUT
3LC-23357-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
WASHER
5VY-12277-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
5VY-23111-00-00
|
$327.99 | ||
|
Unavailable |
|||
|
#33
O-RING
3XJ-23147-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$9.49 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
2CX-23340-00-00
|
$582.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL, STEERING
3FV-23462-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93399-99957-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#39
FORK SEAL KIT
4EB-W003B-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
