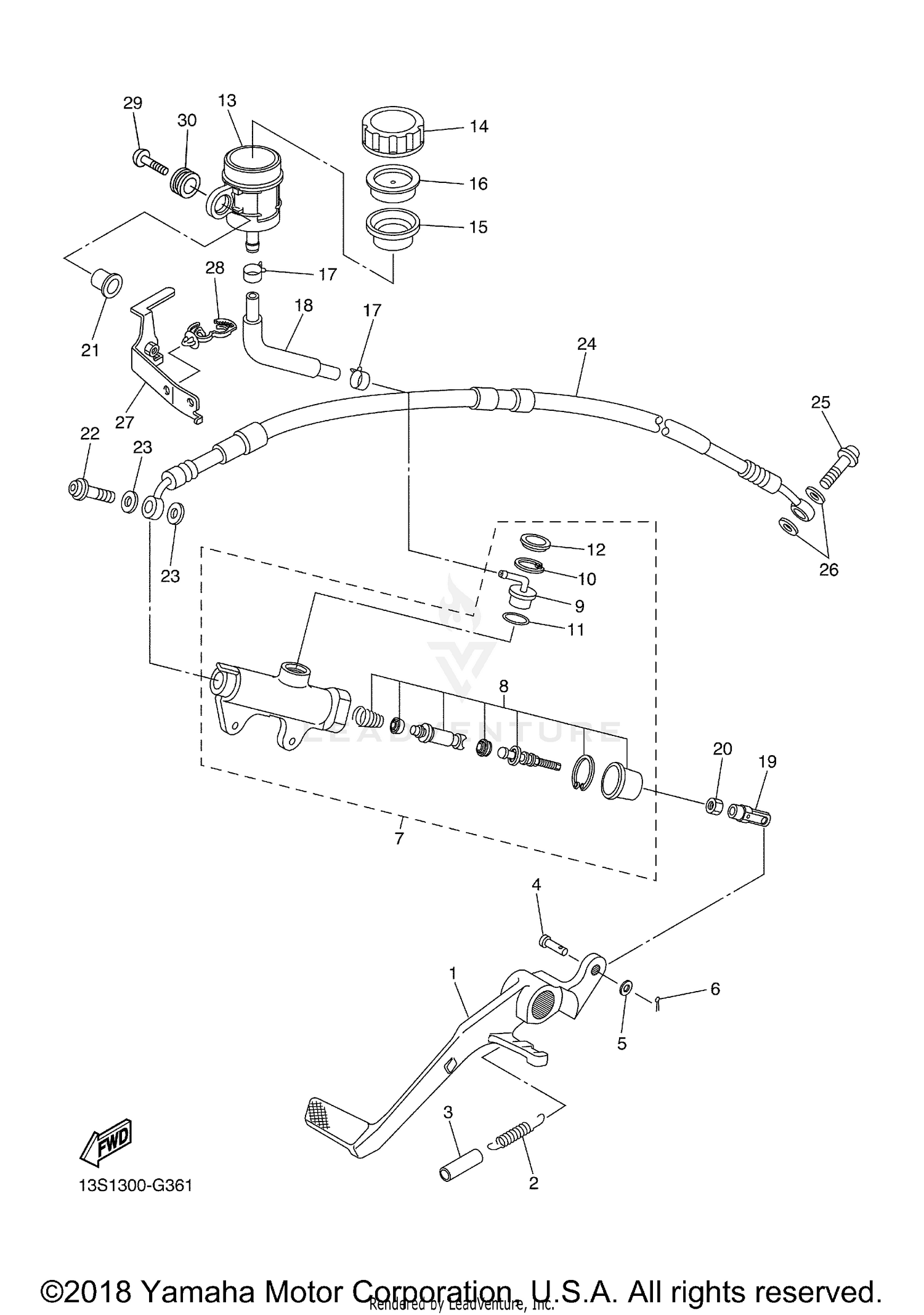

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2C0-27211-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-20193-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE
90446-15386-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91702-06018-00
Superseded by 91701-06018-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, COTTER
91402-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR MASTER CYLINDER ASSY.
2C0-2583V-01-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
5XT-W0042-60-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
4ML-2582A-50-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
2VN-25866-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, DUST
3FV-2589A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK, RESERVOIR
2C0-25894-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RESERVOIR
4PX-25852-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, DIAPHRAGM
2VN-25855-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-12085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RESERVOIR
2C0-25895-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT
4XV-27222-01-00
|
$47.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR
90387-05028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BRAKE
2C0-25874-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
GASKET
90430-10005-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
BRACKET, RESERVE TANK
13S-21228-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-13249-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
2C0-26326-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
