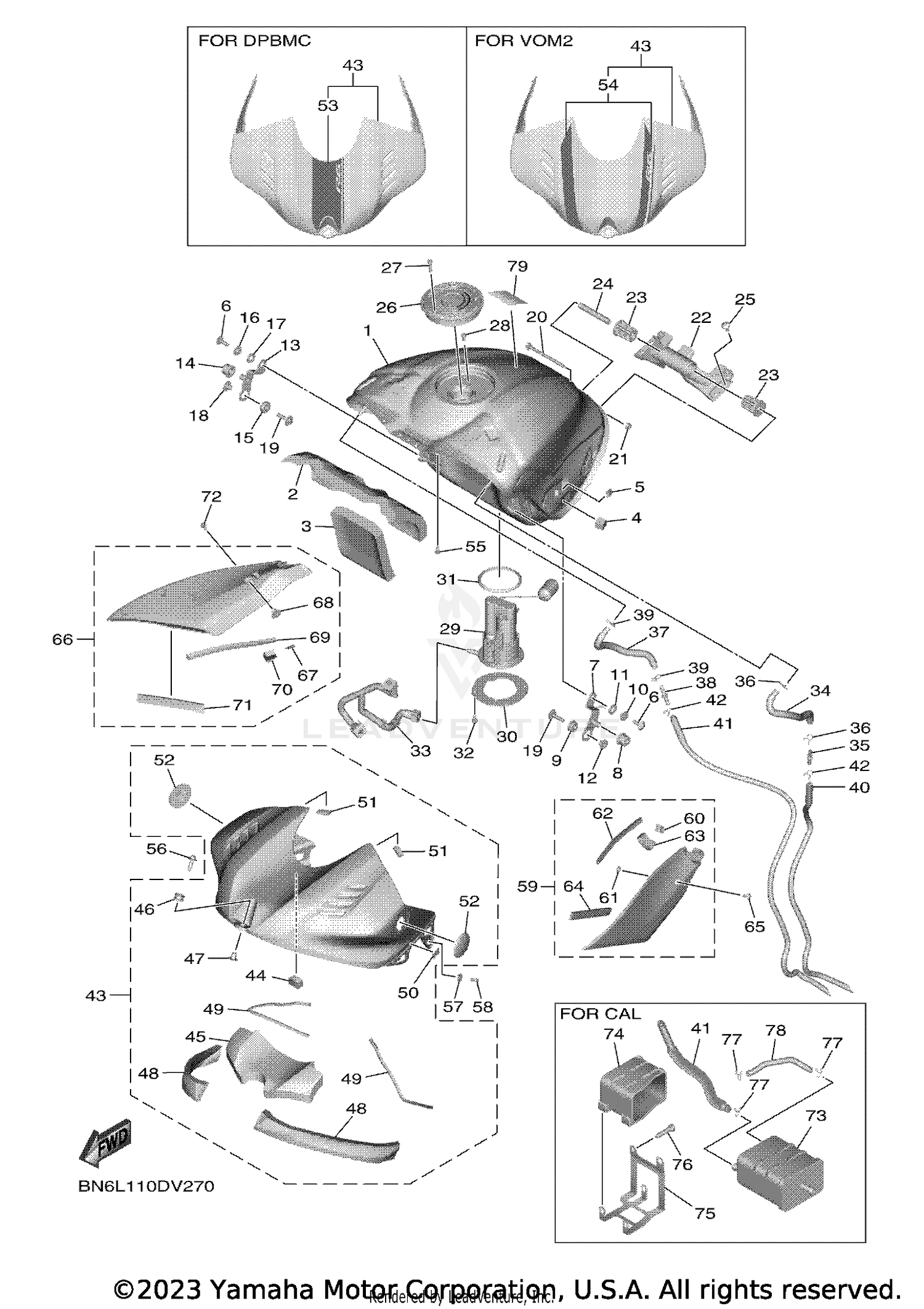

2020 Yamaha YZF R6 FUEL TANK OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Foot Control
+
Other
+
Seat
+
Item MSRP Qty
#1 FUEL TANK COMP.
BN6-YK241-00-P0
$1,354.99
Available: Ships in 7-12 days.
Add to View Price
#1 FUEL TANK COMP.
BN6-YK241-00-P5
$1,170.99
Available: Ships in 7-12 days.
Add to View Price
#1 FUEL TANK COMP.
BN6-YK241-00-P1
Superseded by BN6-24110-00-P1
$1,062.99
Available: Ships in 7-12 days.
Add to View Price
#2 DAMPER, PLATE 2
BN6-2414J-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#3 DAMPER, PLATE
90520-15014-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#4 DAMPER, LOCATING 2
14B-2836U-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 DAMPER, SIDE COVER
5PW-2411J-01-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#6 BOLT, HEX. SOCKET BUTTON
90111-06137-00
$6.49
In Stock: Ready to ship.
Add to View Price
#7 BRACKET, FUEL TANK 1
BN6-24191-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#8 DAMPER, LOCATING 1
5VY-24181-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 GROMMET
90480-16278-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#10 COLLAR
90387-06171-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#11 DAMPER, LOCATING 3
BN6-24183-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#12 COLLAR
90387-066Y6-00
$6.49
In Stock: Ready to ship.
Add to View Price
#13 BRACKET, FUEL TANK 1
BN6-24191-10-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#14 DAMPER, LOCATING 1
5VY-24181-00-00
$6.49
Unavailable
#15 GROMMET
90480-16278-00
$3.30
Unavailable
#16 COLLAR
90387-06171-00
$6.49
Unavailable
#17 DAMPER, LOCATING 3
BN6-24183-00-00
$8.49
Unavailable
#18 COLLAR
90387-066Y6-00
$6.49
Unavailable
#19 BOLT, WITH WASHER
90119-06262-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#20 BOLT, FLANGE
95812-06090-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#21 NUT, WITH WASHER
95702-06500-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#22 BRACKET, TANK FITTING
BN6-2413Y-00-00
$47.99
Available: Ships in 7-12 days.
Add to View Price
#23 DAMPER, LOCATING 3
5SL-24183-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#24 COLLAR
90387-06055-00
$3.85
Available: Ships in 7-12 days.
Add to View Price
#25 BOLT, HEX. SOCKET BUTTON
90111-06071-00
Superseded by 90111-06038-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#26 CAP ASSY
39P-24602-00-00
$204.99
In Stock: Ready to ship.
Add to View Price
#27 BOLT, HEXAGON SOCKET HEAD
90110-05112-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#28 BOLT, HEXAGON SOCKET HEAD
91312-05010-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#29 FUEL PUMP COMP.
BN6-13907-00-00
Superseded by BN6-13907-01-00
$396.99
Available: Ships in 7-12 days.
Add to View Price
#30 BRACKET, FUEL PUMP
2CR-24491-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#31 O-RING
1RC-24486-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#32 BOLT, WITH WASHER
90119-05015-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 PIPE, FUEL 1
13S-13971-01-00
$277.99
Available: Ships in 7-12 days.
Add to View Price
#34 PIPE 3
BN6-24313-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#35 JOINT
4XY-14568-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#36 CLIP
90467-09006-00
Superseded by 90467-090A2-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#37 PIPE 3
BN6-24313-10-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#38 JOINT
4XY-14568-00-00
$6.49
Unavailable
#39 CLIP
90467-09006-00
Superseded by 90467-090A2-00
$3.30
Unavailable
#40 PIPE 4
BN6-24314-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#41 PIPE 7
BN6-24317-00-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#41 PIPE 7
BN6-24317-10-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#42 CLIP
90467-09006-00
Superseded by 90467-090A2-00
$3.30
Unavailable
#43 COVER, TOP (FUEL TAN
BN6-Y217F-30-P0
$182.99
Available: Ships in 7-12 days.
Add to View Price
#43 COVER, TOP (FUEL TAN
BN6-Y217F-00-P5
$148.99
Available: Ships in 7-12 days.
Add to View Price
#43 COVER, TOP (FUEL TAN
BN6-Y217F-40-P1
$186.99
Available: Ships in 7-12 days.
Add to View Price
#44 DAMPER, PLATE
90520-08006-00
$2.20
In Stock: Ready to ship.
Add to View Price
#45 DAMPER
BN6-12232-00-00
$5.49
In Stock: Ready to ship.
Add to View Price
#46 GROMMET
90480-12023-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#47 COLLAR
90387-06203-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#48 DAMPER, PLATE 4
2S3-2414N-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#49 DAMPER, PLATE 1
5PW-2414H-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#50 SEAL
5SL-21268-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#51 DAMPER, PLATE
90520-05024-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#52 EMBLEM
1RC-2413B-01-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#53 GRAPHIC, FUEL TANK 1
BN6-24244-20-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#54 GRAPHIC SET 1
BN6-24230-00-00
$50.99
Available: Ships in 7-12 days.
Add to View Price
#55 SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
$6.49
In Stock: Ready to ship.
Add to View Price
#56 BOLT, HEXAGON SOCKET HEAD
90110-06233-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#57 COLLAR
90387-05058-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#58 BOLT
97012-05010-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#59 TANK SIDE COVER ASSY 1
BN6-24106-00-00
$35.99
Available: Ships in 7-12 days.
Add to View Price
#60 SEAL
5SL-21268-00-00
$6.49
Unavailable
#61 COLLAR
90387-05035-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#62 SEAL 3
7TA-22875-00-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#63 MOLE
7CF-22869-00-00
$1.05
Available: Ships in 7-12 days.
Add to View Price
#64 DAMPER, PLATE
90520-05023-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#65 BOLT, HEX. SOCKET BUTTON
90111-05048-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#66 TANK SIDE COVER ASSY 2
BN6-24108-00-00
$35.99
Available: Ships in 7-12 days.
Add to View Price
#67 SEAL
5SL-21268-00-00
$6.49
Unavailable
#68 COLLAR
90387-05035-00
$5.49
Unavailable
#69 SEAL 3
7TA-22875-00-00
$2.20
Unavailable
#70 MOLE
7CF-22869-00-00
$1.05
Unavailable
#71 DAMPER, PLATE
90520-05023-00
$1.10
Unavailable
#72 BOLT, HEX. SOCKET BUTTON
90111-05048-00
$1.10
Unavailable
#73 CANISTER ASSY
2CR-24170-00-00
$314.99
Available: Ships in 7-12 days.
Add to View Price
#74 DAMPER, LOCATING 2
2CR-24182-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#75 BRACKET, CANISTOR
BN6-2419F-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#76 BOLT
90110-06187-00
Superseded by 91317-06012-00
$6.49
In Stock: Ready to ship.
Add to View Price
#77 CLIP
90467-09006-00
Superseded by 90467-090A2-00
$3.30
Unavailable
#78 HOSE
90445-10059-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#79 LABEL, WARNING GENER
29P-2816R-00-00
Superseded by 29P-2816R-01-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
