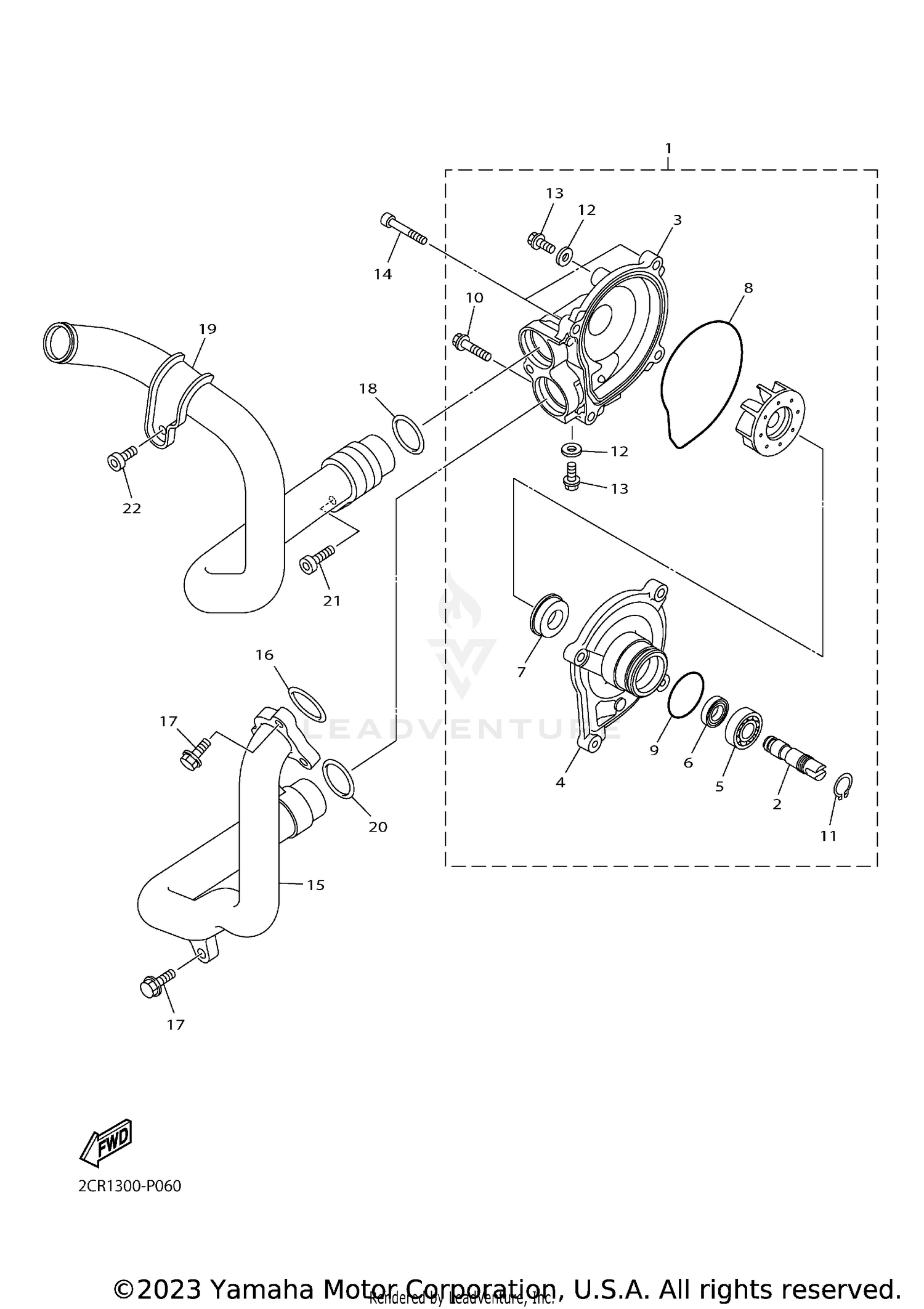

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
2CR-12420-02-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER SHAFT ASSY
2CR-12450-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, HOUSING
2CR-12422-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, WATER PUMP
2CR-12421-02-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
OIL SEAL
2CR-13338-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, MECHANICAL
5VK-12438-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
4XV-12439-00-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING
93210-33133-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET
90430-06166-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95824-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIPE 1
2CR-12481-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06127-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-26006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 4
2CR-12484-00-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-26006-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
BOLT
90110-06246-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
