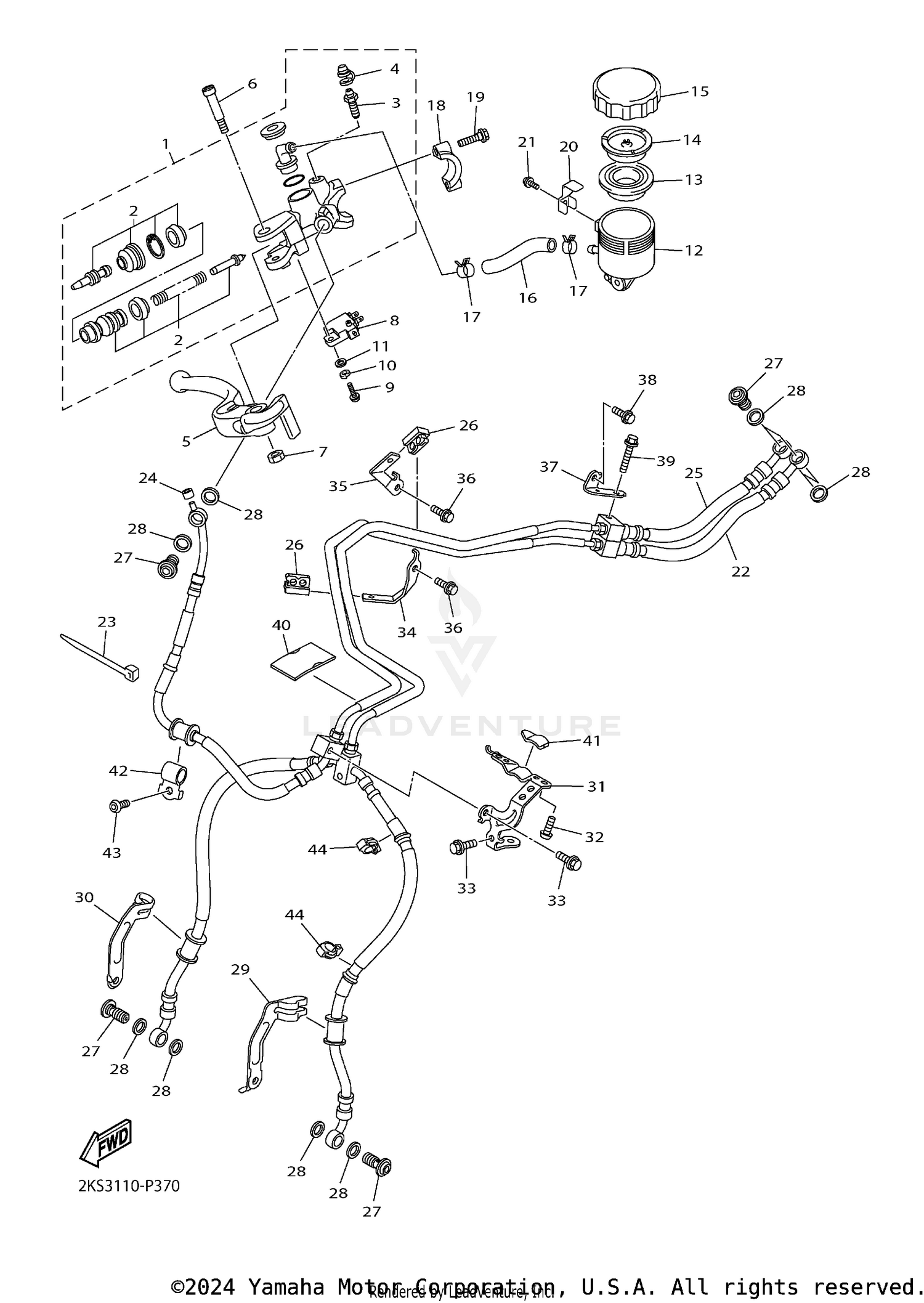

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY 2
2CR-2580A-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
2CR-25807-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BLEED SCREW KIT
1UY-25824-51-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#5
LEVER 2
2CR-83922-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, LEVER
2CR-2589F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FRONT STOP SWITCH AS
2CR-83980-00-00
Superseded by 2CR-83980-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVOIR
2CR-25894-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM, RESERVOIR
3FV-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, DIAPHRAGM
2CR-25855-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, RESERVOIR
3GM-25852-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, RESERVOIR
2CR-25895-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-12085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, MASTER CYLINDER
2CR-25867-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
5EB-26332-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER
2CR-2589G-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
3GM-2589H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRAKE HOSE ASSY
2CR-2584A-01-00
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
3MA-82591-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
2CR-26259-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, BRAKE
2CR-2584B-00-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-07014-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, BRAKE HOSE 1
2CR-25875-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, BRAKE HOSE 2
2CR-25876-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET
2CR-2612E-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BRACKET 2
2CR-2612K-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET 3
2CR-2612L-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET 4
2CR-2612M-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE
95022-06030-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
DAMPER
3YL-12232-00-00
Superseded by 5H0-8235Y-M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER, LOCATING 1
2CR-2622F-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90461-10132-00
Superseded by 90461-08031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-12013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
