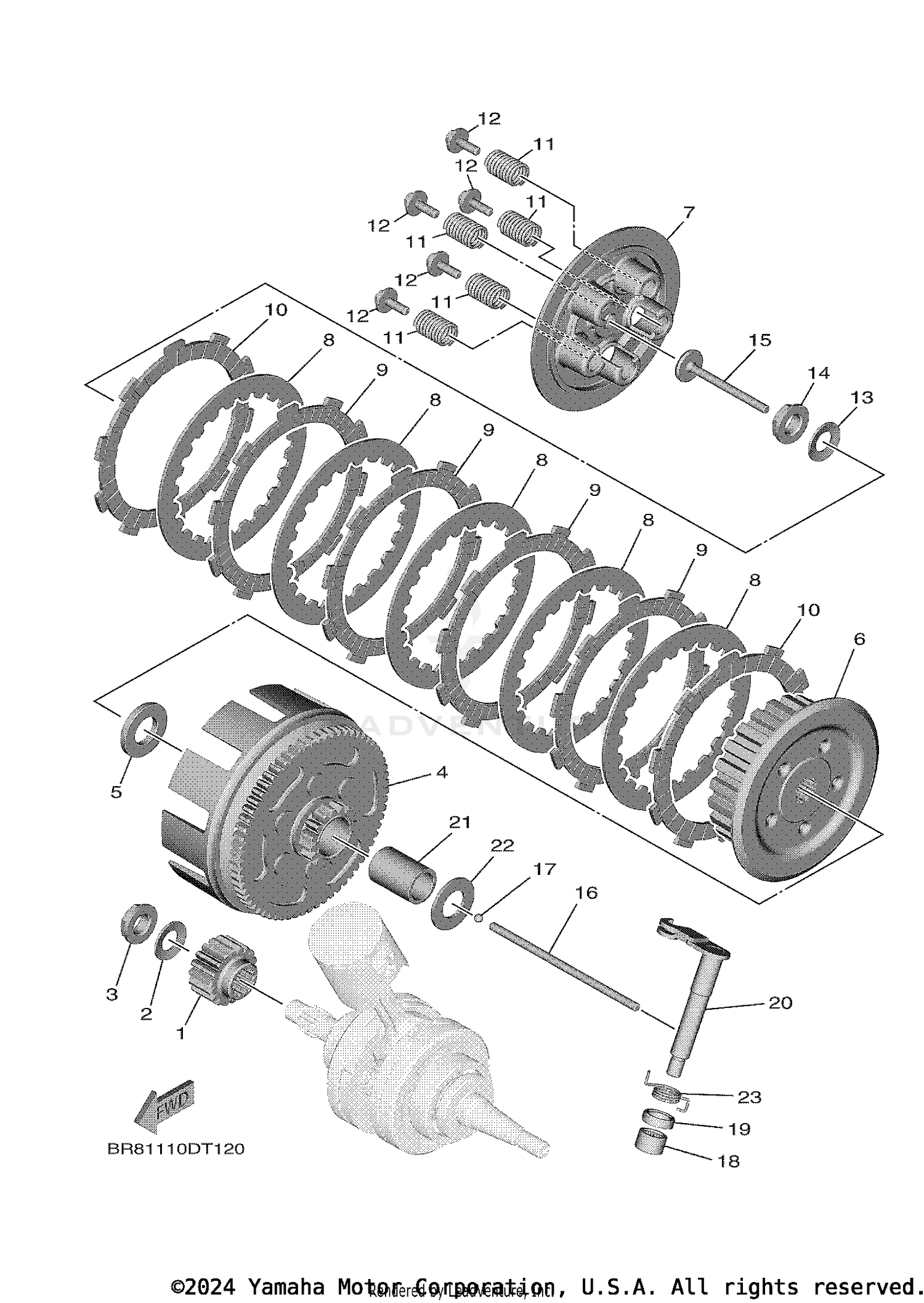

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
BR8-16111-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-12007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEA
5PA-16150-12-00
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-17558-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH
BR8-16371-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, PRESSURE 1
BR8-16351-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH 1
131-16324-10-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
PLATE, FRICTION
4ES-16321-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, FRICTION
21V-16321-00-00
Superseded by 3XP-16321-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-204A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-05001-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.75 | ||
|
Unavailable |
|||
|
#14
NUT
90179-12007-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
ROD, PUSH 1
4ES-16356-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH 2
5PA-16357-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
93503-16003-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING
93315-11206-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
OIL SEAL
93102-12224-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PUSH LEVER COMP.
4ES-16381-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER 1
5PA-16181-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-171G6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-14016-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
