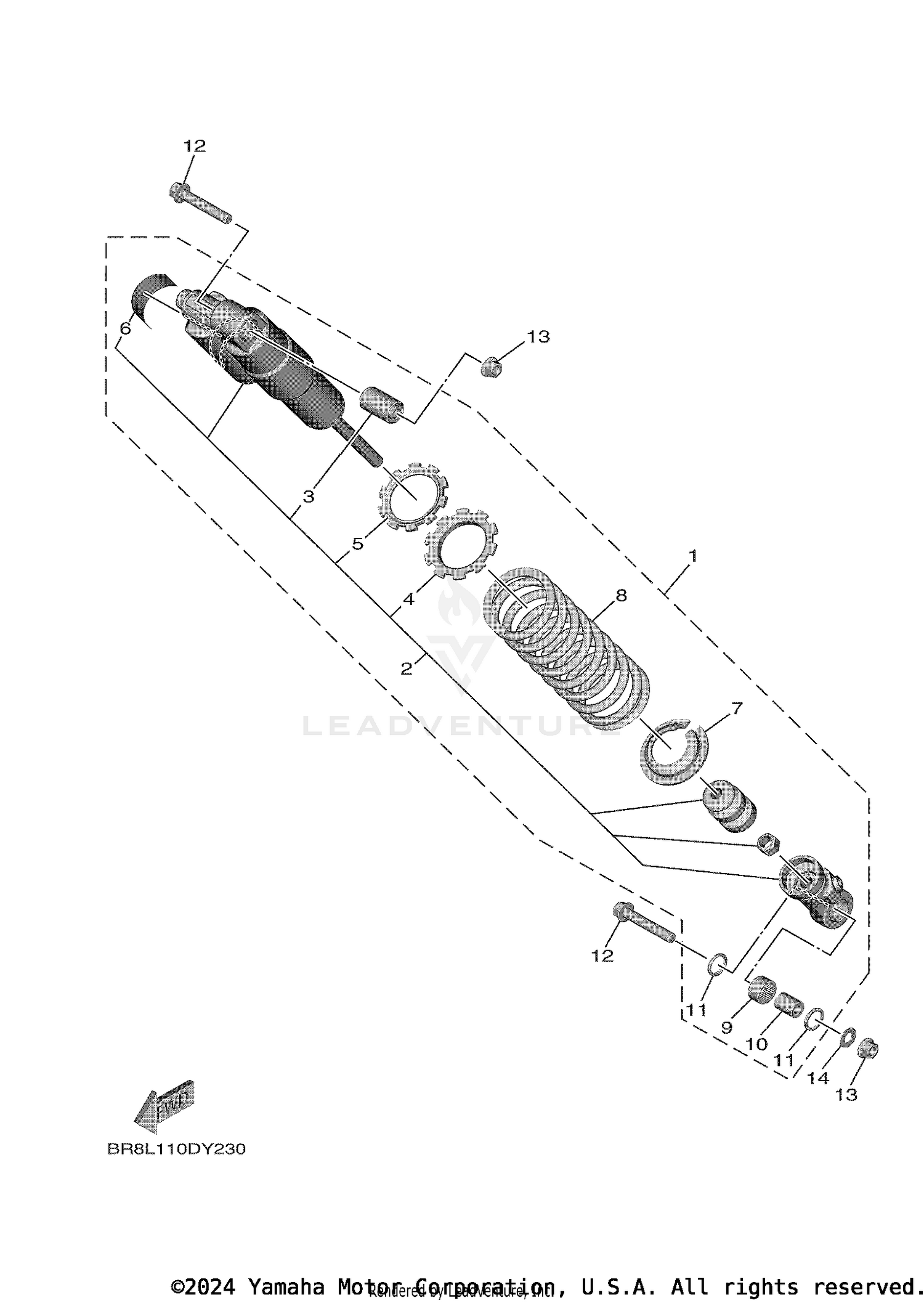

Rear Arm & Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
BR8-22200-03-00
|
$599.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
. .DAMPER SUB ASSY
BR8-22201-03-00
|
|||
|
Unavailable |
|||
|
#3
BUSH, REAR SHOCK ABSORBER
4ES-22216-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, SPRING 1
4ES-22214-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT 1
4ES-22251-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, WARNING
4AA-22259-80-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPRING 1
BR8-22214-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING (K=40N/MM)
BR8-22212-00-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
5UN-22176-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
BR8-22184-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
5NY-22475-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10390-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-10024-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
