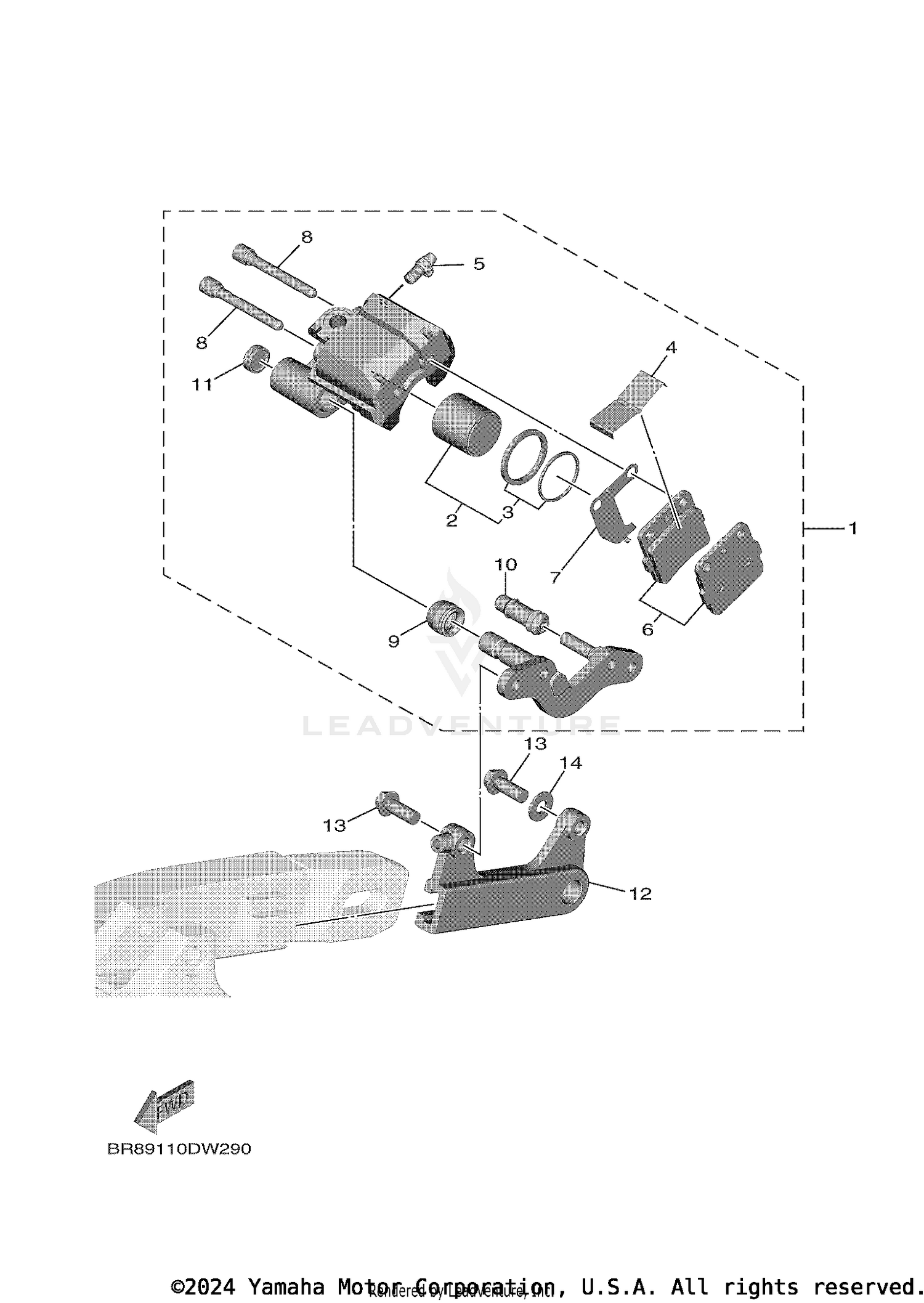

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, REAR 2
BR8-2580W-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON ASSY, CALIPER
4ES-W0057-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER SEAL KIT
4ES-W0047-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUPPORT, PAD
1UY-25919-51-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT 2
BR8-25806-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CALIPER
3GD-25827-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
3GD-25933-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, CALIPER
1UY-25917-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLUG
3GD-25916-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SUPPORT BRACKET ASSY
4ES-25920-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-08029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
