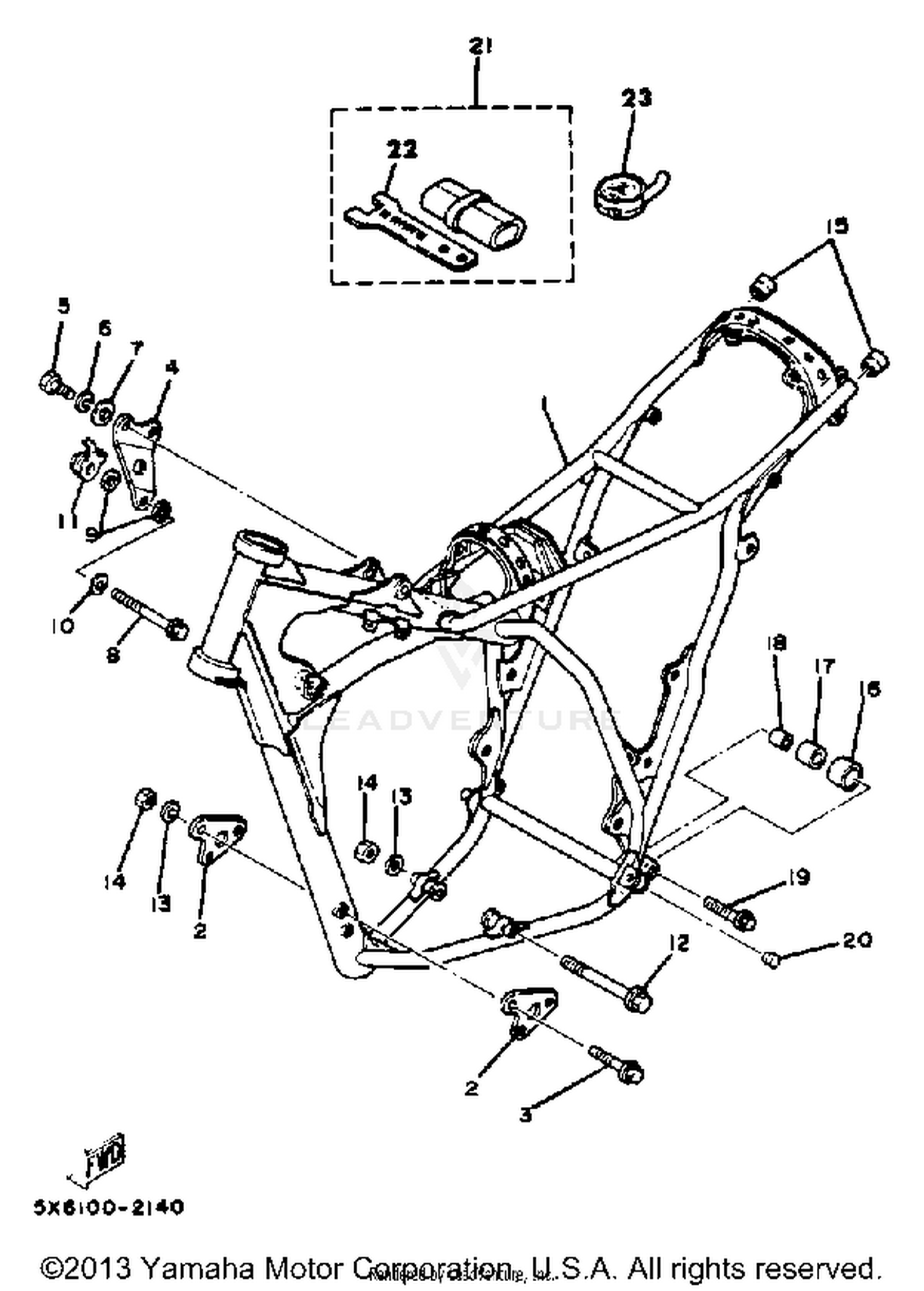

Frame-tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
5X6-21110-00-33
|
$603.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FRT UPR 1
3R4-21415-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95811-08075-00
Superseded by 95817-08075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, REAR UPR 1
3R5-21425-00-00
|
$38.38 | ||
|
Unavailable |
|||
|
#5
BOLT
97013-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-10060-00
Superseded by 95817-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HOLDER, NUT
4V6-21167-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#12
BOLT, WASHER BASED
95811-08165-00
Superseded by 90105-08473-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
Unavailable |
|||
|
#14
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
90339-13005-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
TENSIONER
5X6-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH
4V4-22184-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-083F3-00
|
$2.97 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95811-08040-00
Superseded by 95817-08040-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG
90338-12131-00
|
$1.50 | ||
|
Unavailable |
|||
|
#21
TOOL KIT
1W4-28100-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#23
GAUGE, AIR
2X4-2811A-01-00
|
$83.99 | ||
|
Unavailable |
|||
