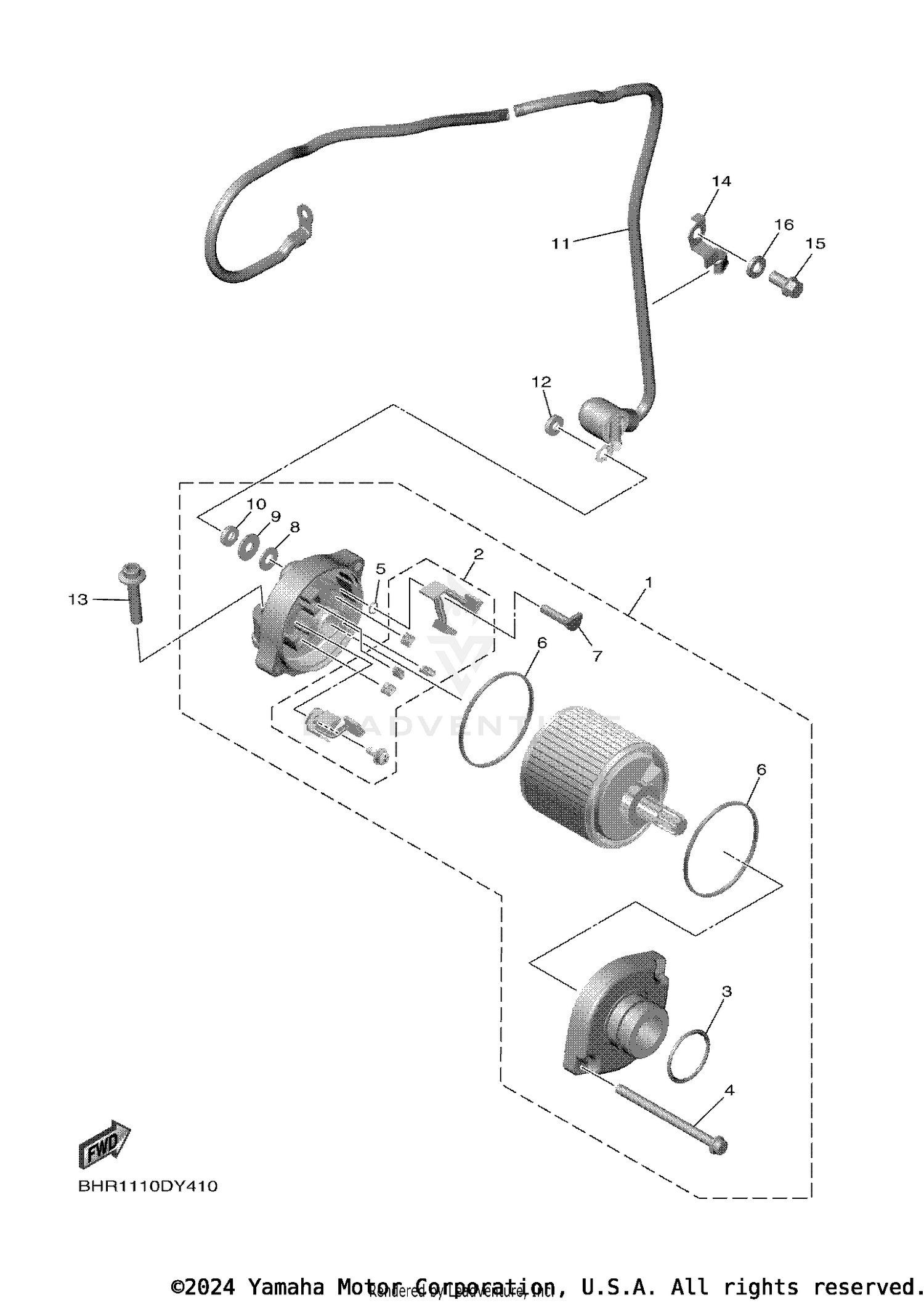

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
BHR-81890-00-00
|
$538.99 | ||
|
Unavailable |
|||
|
#2
BRUSH SET
2CR-81801-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
4FP-H182L-00-00
Superseded by 93210-25711-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW
BR9-81846-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING 1
BR9-8182L-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
BR9-81861-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW 2
2CR-81828-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN
8FA-8181L-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
1D7-81835-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95302-06700-00
Superseded by 95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CORD COMP.
BHR-8183G-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#12
NUT
95302-06700-00
Superseded by 95380-06700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP 3
BHR-81679-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06105-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
