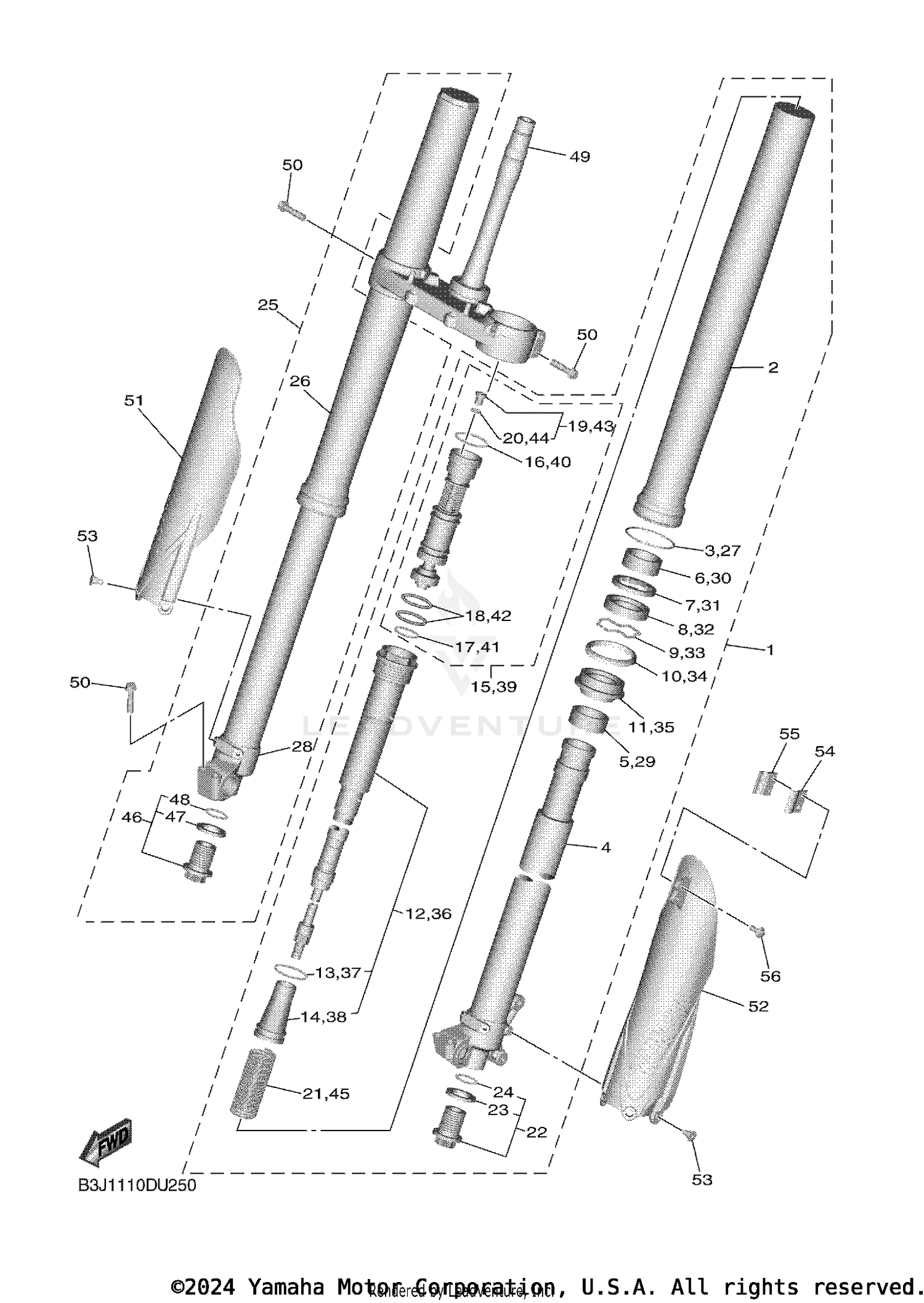

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
BAJ-23102-00-00
|
$1,100.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (RIGHT)
33D-23136-00-00
|
$714.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, SNAP
17D-23153-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
. .INNER TUBE COMP.2
B7R-23120-00-00
Superseded by B7R-23120-01-00
|
$377.99 | ||
|
Unavailable |
|||
|
#5
PISTON, FRONT FORK
5XE-23171-L0-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
METAL, SLIDE 1
5XE-23125-L0-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
5XC-23146-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FORK SEAL KIT
B29-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SNAP
5XE-23153-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCRAPER
B29-4381D-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
5XE-23144-L0-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CYLINDER COMP., FRON
B3J-23170-20-00
|
$647.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, SPRING UPPER
BR9-23142-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
. .VALVE COMP.
BAJ-2316A-00-00
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
1C3-23188-P0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$25.99 | ||
|
Unavailable |
|||
|
#20
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$4.30 | ||
|
Unavailable |
|||
|
#21
SPRING, FRONT FORK (K=4.6)
BR9-23141-A0-00
Superseded by BR9-23141-30-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$78.99 | ||
|
Unavailable |
|||
|
#23
GASKET
2HH-23158-L0-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
FRONT FORK ASSY (R.H)
BAJ-23103-00-00
|
$1,100.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TUBE, OUTER (RIGHT)
33D-23136-00-00
|
$714.99 | ||
|
Unavailable |
|||
|
#27
RING, SNAP
17D-23153-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#28
. .INNER TUBE COMP.1
B7R-23110-00-00
Superseded by B7R-23110-01-00
|
$451.99 | ||
|
Unavailable |
|||
|
#29
PISTON, FRONT FORK
5XE-23171-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#30
METAL, SLIDE 1
5XE-23125-L0-00
|
$28.99 | ||
|
Unavailable |
|||
|
#31
WASHER, OIL SEAL
5XC-23146-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#32
FORK SEAL KIT
B29-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#33
RING, SNAP
5XE-23153-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
SCRAPER
B29-4381D-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#35
SEAL, DUST
5XE-23144-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#36
CYLINDER COMP., FRON
B3J-23170-20-00
|
$647.99 | ||
|
Unavailable |
|||
|
#37
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.75 | ||
|
Unavailable |
|||
|
#38
SEAT, SPRING UPPER
BR9-23142-01-00
|
$63.99 | ||
|
Unavailable |
|||
|
#39
. .VALVE COMP.
BAJ-2316A-00-00
|
$290.99 | ||
|
Unavailable |
|||
|
#40
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$3.20 | ||
|
Unavailable |
|||
|
#41
O-RING
1C3-23188-P0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#43
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$25.99 | ||
|
Unavailable |
|||
|
#44
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$4.30 | ||
|
Unavailable |
|||
|
#45
SPRING, FRONT FORK (K=4.6)
BR9-23141-A0-00
Superseded by BR9-23141-30-00
|
$118.99 | ||
|
Unavailable |
|||
|
#46
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$78.99 | ||
|
Unavailable |
|||
|
#47
GASKET
2HH-23158-L0-00
|
$11.99 | ||
|
Unavailable |
|||
|
#48
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.60 | ||
|
Unavailable |
|||
|
#49
UNDER BRACKET COMP.
33D-23340-20-00
|
$471.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE DEEP
95E34-08035-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#51
PROTECTOR 2
17D-2315J-H0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PROTECTOR 1
17D-2315H-H0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT
90109-06232-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
CLAMP
17D-23466-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLAMP
17D-23467-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE
90105-06170-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
