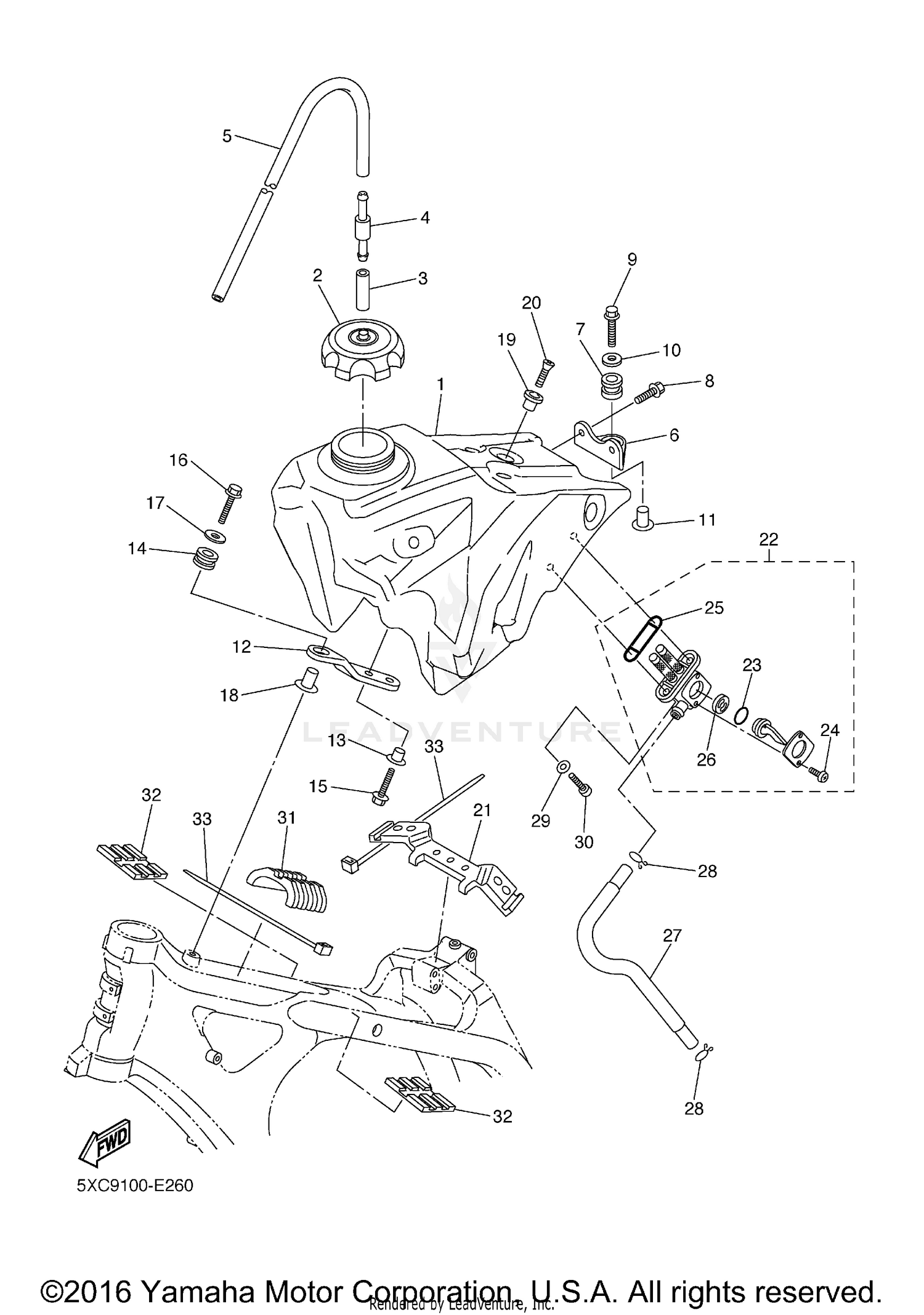

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2S2-24110-70-00
|
$396.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
5NY-24610-00-00
Superseded by 5NY-24610-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 5
90445-09220-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIPE JOINT ASSY
3XJ-24380-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 5
90445-09251-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
HOLDER, DAMPER
5XE-24144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-18549-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06107-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06111-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06570-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPECIAL
3JD-24186-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOLDER
5XC-2419A-90-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GROMMET
5XC-24339-90-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06107-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-06111-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-06570-00
|
$11.49 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, SEAT
4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, FLAT HEAD
98702-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, LOCATING 1
5XC-24181-90-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUEL COCK ASSY 1
4JT-24500-10-00
Superseded by 4JT-24500-20-00
|
$117.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SEAL, COCK
3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98502-03008-00
Superseded by 98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
VALVE PACKING
3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, FUEL 1
2S2-24311-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW
90149-06108-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, LOCATING 2
5XC-24182-90-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, LOCATING 3
5XC-24183-90-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
