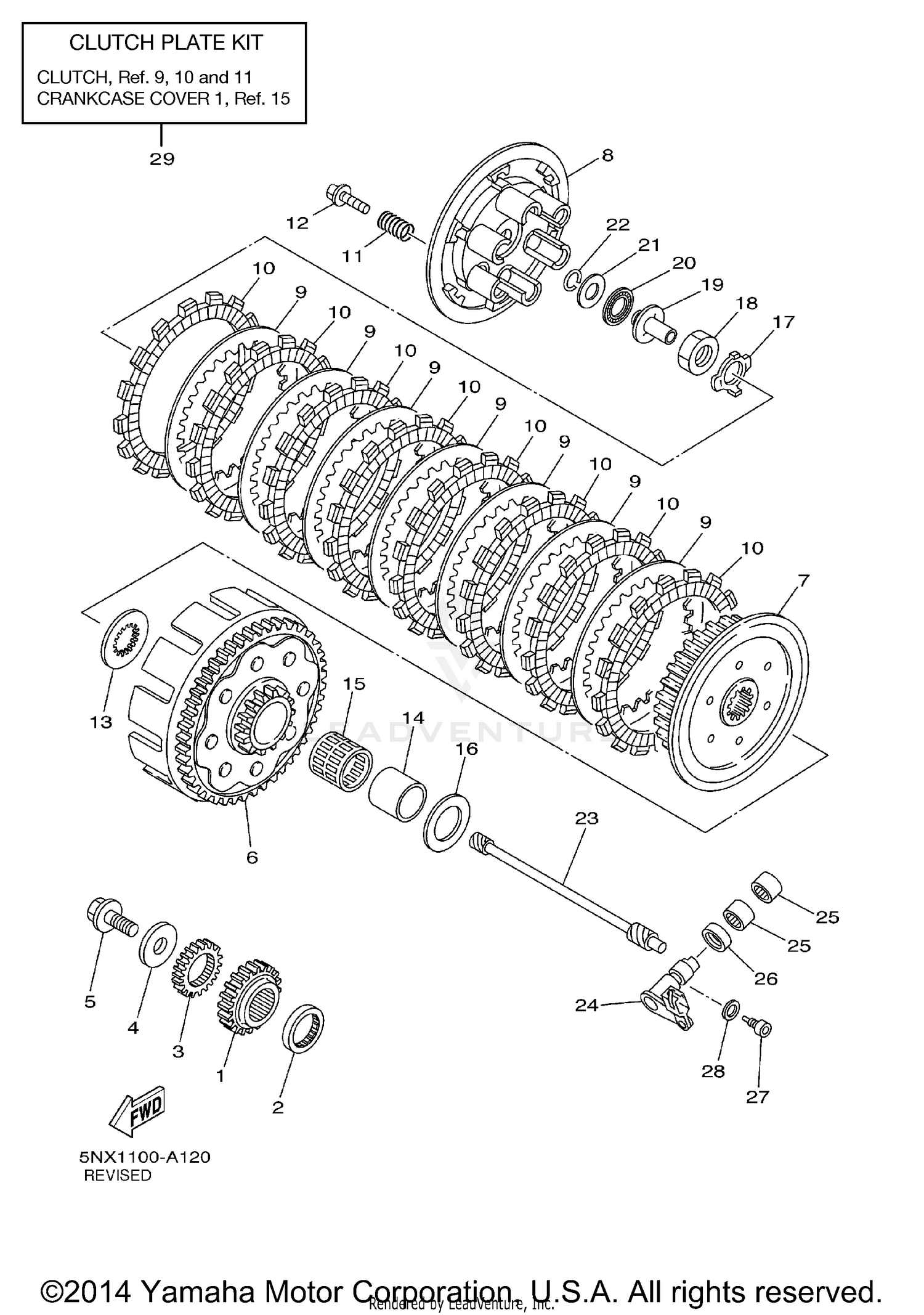

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5DJ-16111-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, THRUST 1
5MW-16113-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, GOVERNOR DRIVE
5CU-11956-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-105P3-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10445-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY DRIVEN GEAR COMP.
5DJ-16150-00-00
|
$410.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
5NX-16371-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
5JG-16351-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 2
4X7-16325-00-00
Superseded by 4X7-16325-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, FRICTION
3XK-16321-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-237L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, THRUST 1
5CU-16154-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 1
2VM-16181-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93310-230T7-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, THRUST 1
2K7-16154-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK
90215-20231-00
|
$3.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT
90170-20255-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 1
4XL-16356-00-00
Superseded by 5BE-16356-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93340-21505-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-125L6-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP
93440-10085-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH 2
1P8-16357-00-00
Superseded by 1P8-16357-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PUSH LEVER ASSY
5CU-16380-10-00
|
$117.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING
93315-11206-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-12224-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT
90109-056G0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-05242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLUTCH PLATE KIT
1P8-W001G-00-00
Superseded by B9U-W001G-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
