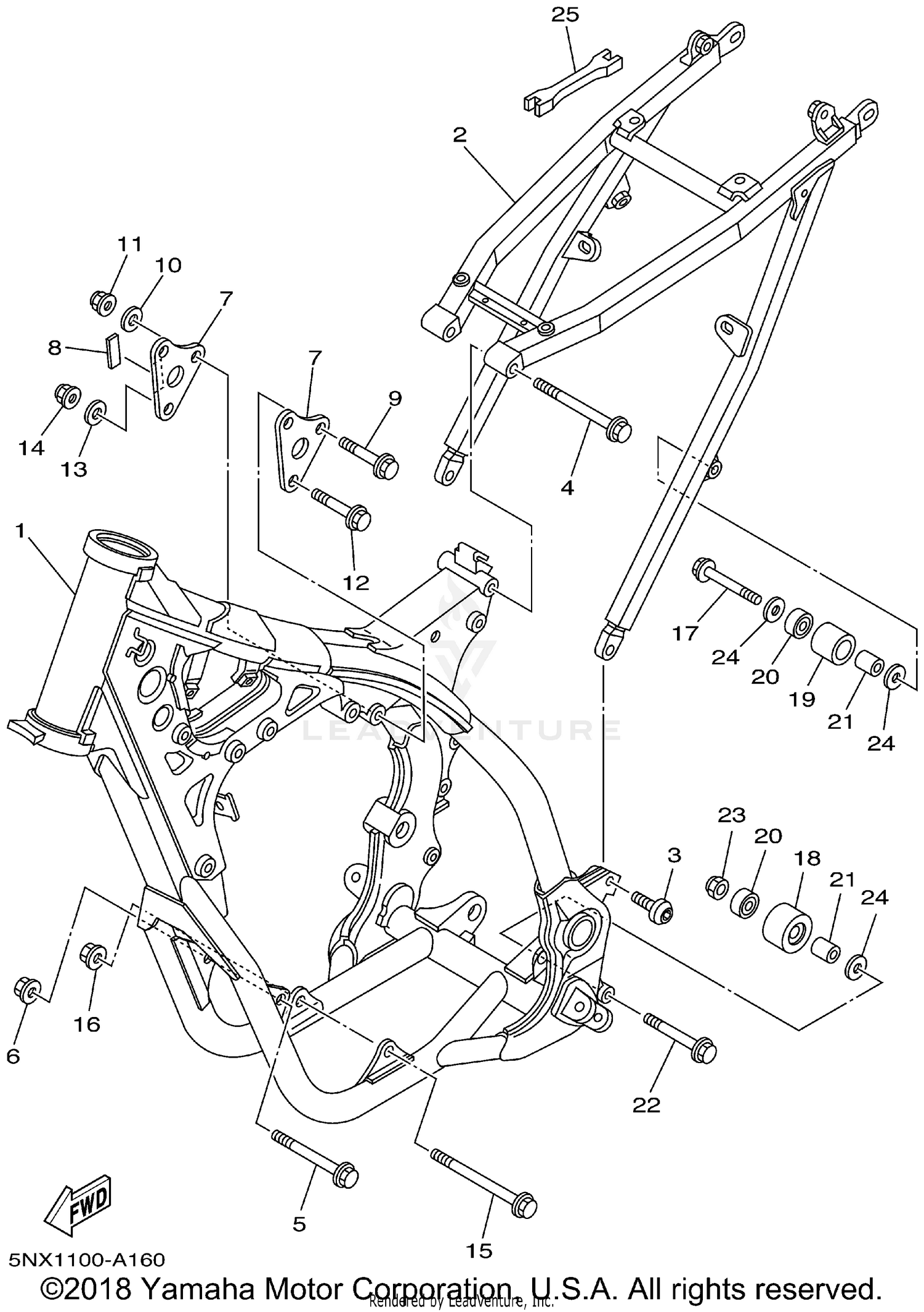

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5NX-21101-00-00
|
$1,573.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
5NY-21190-00-00
Superseded by 5XE-21190-00-00
|
$477.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95817-10110-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRACKET, REAR UPPER 1
5NX-21425-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
4GG-21488-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WASHER BASED
90105-08494-00
Superseded by 90105-08225-00
|
$1.55 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95817-10050-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92907-10200-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
BOLT,WASHER BASED
90105-10119-00
Superseded by 90109-101A0-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95027-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING
93300-60804-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-086N4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95027-08055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-08055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-086P8-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
