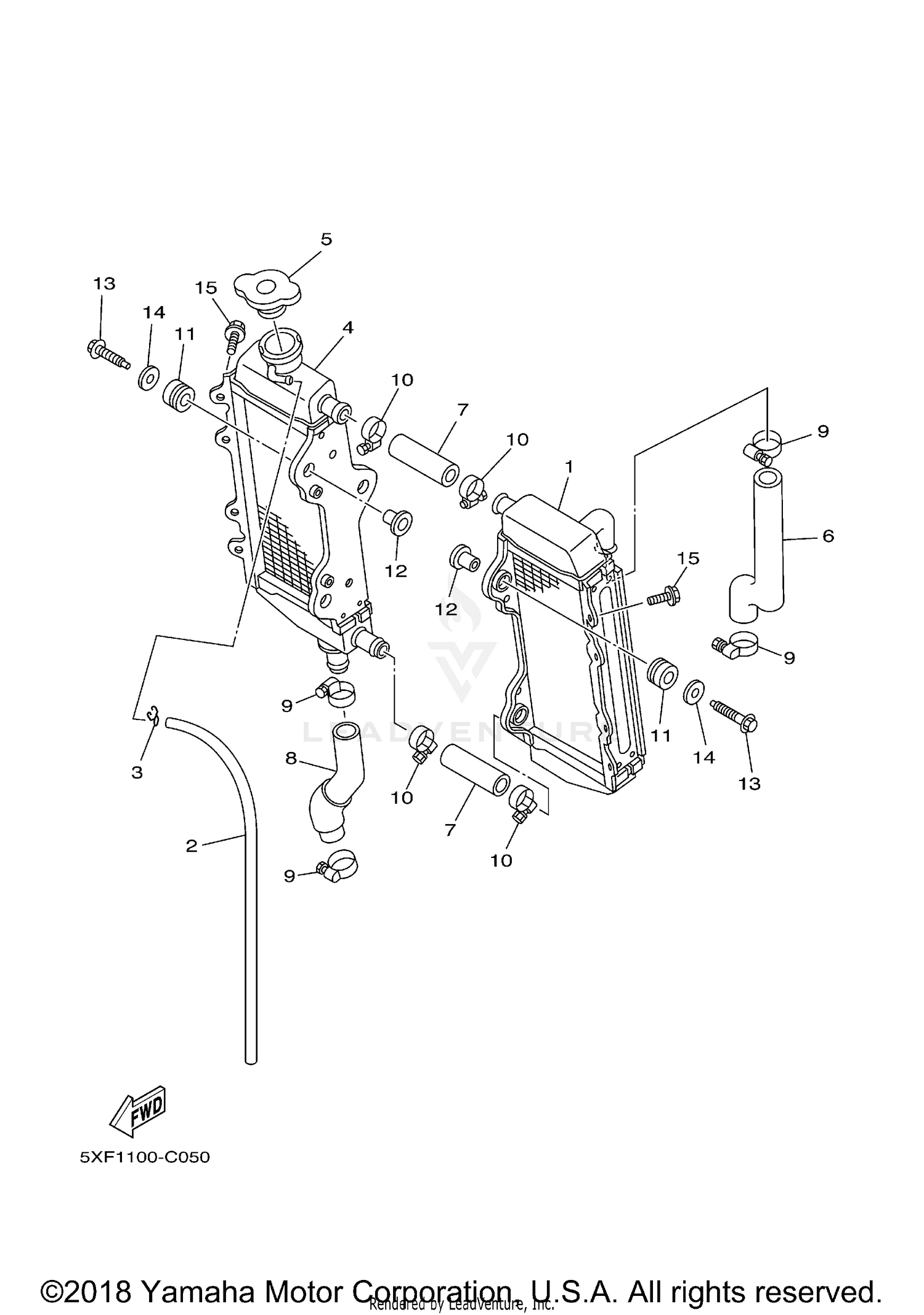

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5NX-1240A-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RADIATOR COMP
5NX-12461-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIPE 1
5CU-12481-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 2
5NY-12482-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIPE 4
5XF-12484-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GROMMET
90480-15528-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06571-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
