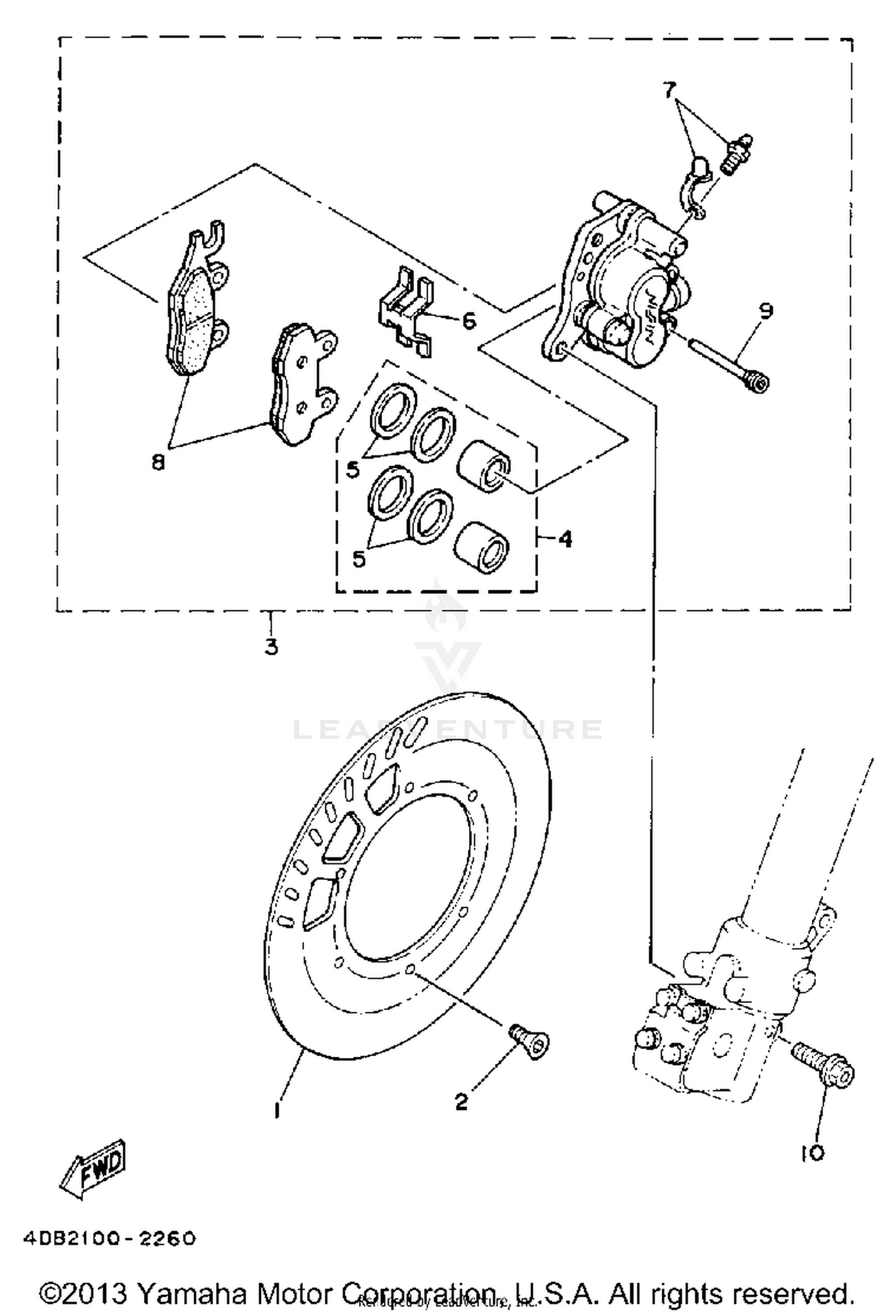

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
4EW-2582T-00-00
Superseded by 4XM-2582T-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, COUNTERSUNK
90149-06272-00
Superseded by 90151-06080-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CALIPER ASSY LEFT
3SP-2580T-00-00
Superseded by 3SP-2580T-01-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSEMBLY, CALIPER
3JD-W0057-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JD-W0047-00-00
Superseded by 3JD-25803-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
3JD-25919-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
3SP-W0045-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3GD-25933-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08659-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
