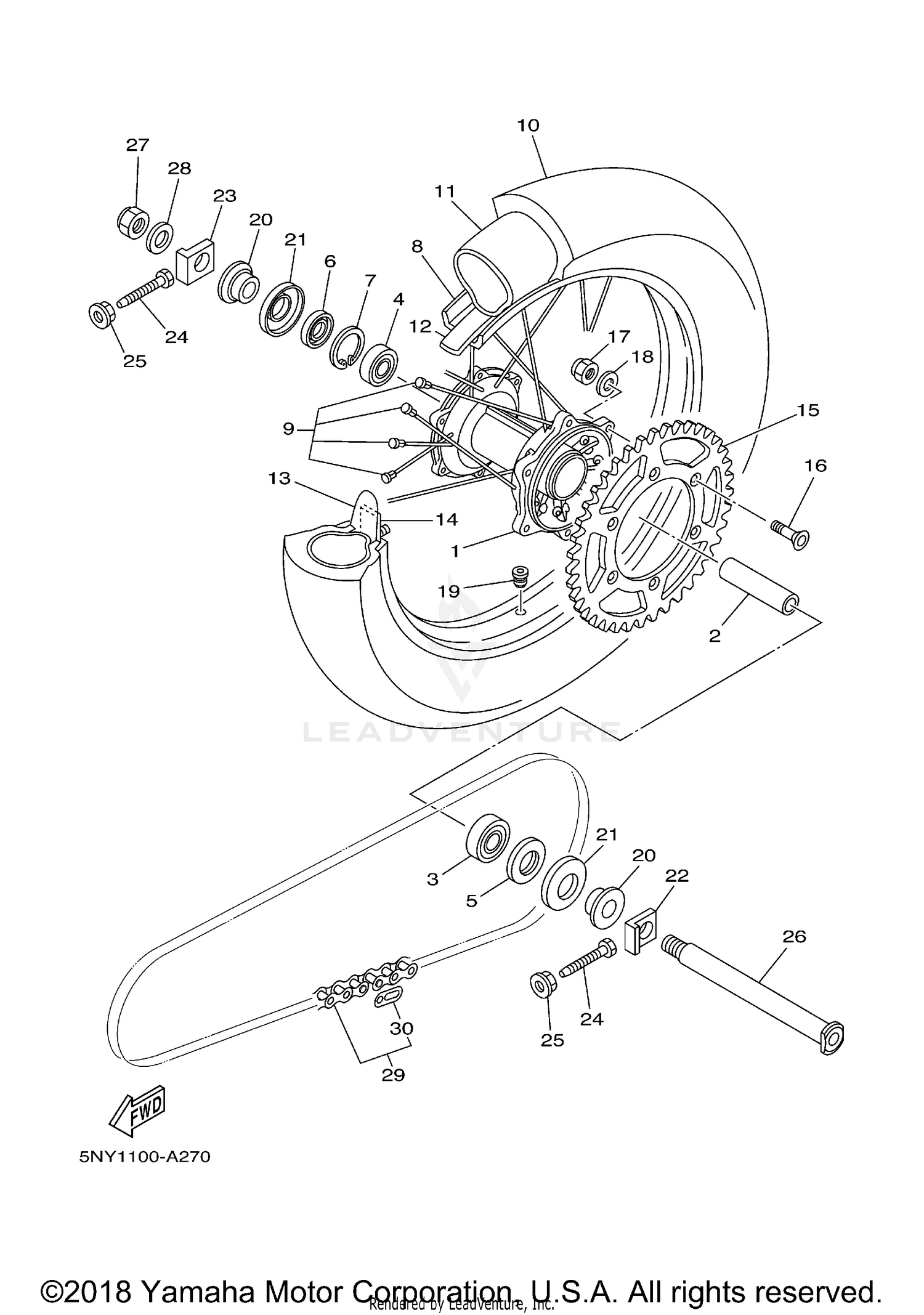

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
5ET-25311-00-00
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
5ET-25317-00-00
|
$53.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BEARING
93306-27205-00
Superseded by 93306-27206-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-07202-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30044-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30045-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-45500-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM (1.85-19)
94418-19601-00
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, REAR
5HD-25304-00-00
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (100/90-19 57M D756)
94110-1916A-00
Superseded by 94110-19012-00
|
$120.99 | ||
|
Unavailable |
|||
|
#11
TUBE (100/90-19 M/C TR4)
94210-19222-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, RIM (2.00-19)
94321-19135-00
Superseded by 94327-19111-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, BEAD
4XM-25394-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
4XM-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (48T)
5NY-25448-00-00
Superseded by 1C3-25448-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (49T)
5NY-25449-00-00
Superseded by 1C3-25449-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (51T)
5NY-25451-00-00
Superseded by 1C3-25451-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (52T)
5NY-25452-00-00
Superseded by 1C3-25452-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (47T)
5ET-25447-00-00
Superseded by 1C3-25447-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (50T)
5NY-25450-00-00
Superseded by 1C3-25450-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-081G1-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, WHEEL
5UN-25383-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, HUB DUST
5ET-25367-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 1
5NY-25388-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#23
PULLER, CHAIN 2
5NY-25389-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90101-08777-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, SPECL SHAPE
90179-08491-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
AXLE, WHEEL
5ET-25381-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-20168-00
Superseded by 90185-20002-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-203U1-00
Superseded by 90201-20020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CHAIN (DID 520D 112L)
9Y581-92111-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT, CHAIN (DID 520DM-RJ)
94681-68001-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
