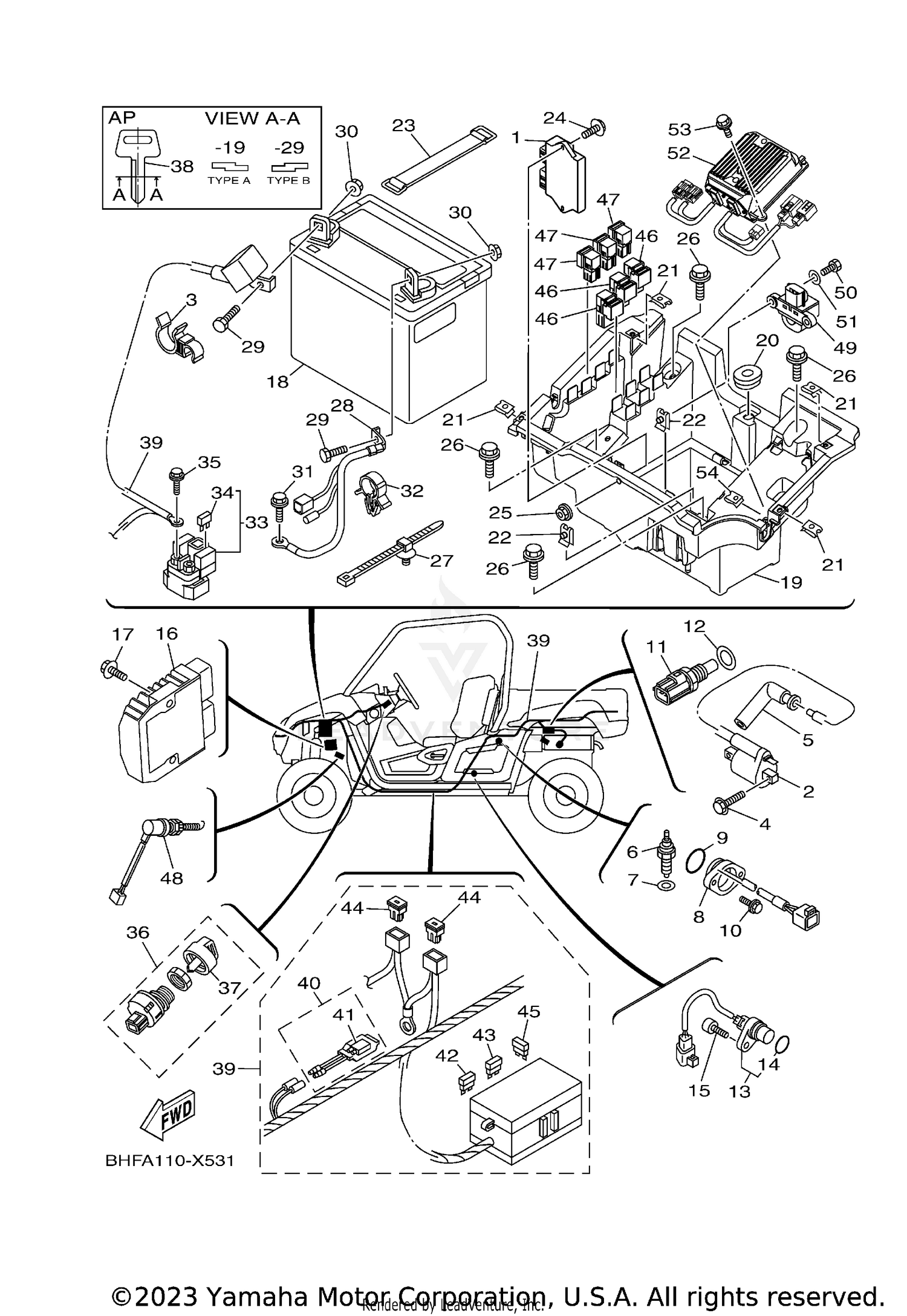

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNI
B42-8591A-21-00
|
$975.99 | ||
|
Unavailable |
|||
|
#2
IGNITION COIL ASSY
5YU-82310-13-00
Superseded by 5YU-H2310-14-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90464-18016-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON DEEP R
97002-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
5B4-82370-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NEUTRAL SWITCH ASSY
1XD-82540-00-00
Superseded by 1XD-82540-02-00
|
$62.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
THERMOSENSOR ASSY
5YP-85790-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, SPEED
3B4-83755-01-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
BATTERY ASSY (GS U1L-11)
11U-1LD00-00-00
|
$139.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOX, BATTERY 1
1XD-H212B-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-05008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BAND, BATTERY
3L8-82131-01-00
Superseded by 22F-82131-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95812-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLAMP
1NS-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
WIRE, MINUS LEAD
1XP-H2116-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97080-08020-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-08015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95812-06014-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CLAMP
90464-15157-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE (10A-BL)
42X-82151-00-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
MAIN SWITCH ASSY
1XD-H2510-10-00
Superseded by 1XD-H2510-11-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CAP, KEY
1XD-H2579-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
KEY, MAIN SWITCH
1XD-H2511-29-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
KEY, MAIN SWITCH
1XD-H2511-19-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WIRE HARNESS ASSY
B42-82590-00-00
|
$1,130.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CIRCUIT BREAKER ASSY
5B4-82180-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
THERMO SWITCH ASSY
5B4-82560-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#44
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
FUSE (25A-BL)
5JJ-82151-70-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
RELAY ASSY (8DM-11)
8DM-81950-11-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
STOP SWITCH ASSY
4KB-82530-10-00
Superseded by 4KB-82530-11-00
|
$56.99 | ||
|
Unavailable |
|||
|
#49
SENSOR, LEAN ANGLE
3B4-82576-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT
97002-05016-00
Superseded by 97095-05016-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
POWER STRG. CONT. UNIT ASSY
1XP-859A0-01-00
Superseded by 1XP-859A0-00-00
|
$1,334.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
